Revision: 1.23
22
2.5 RF Antenna Installation

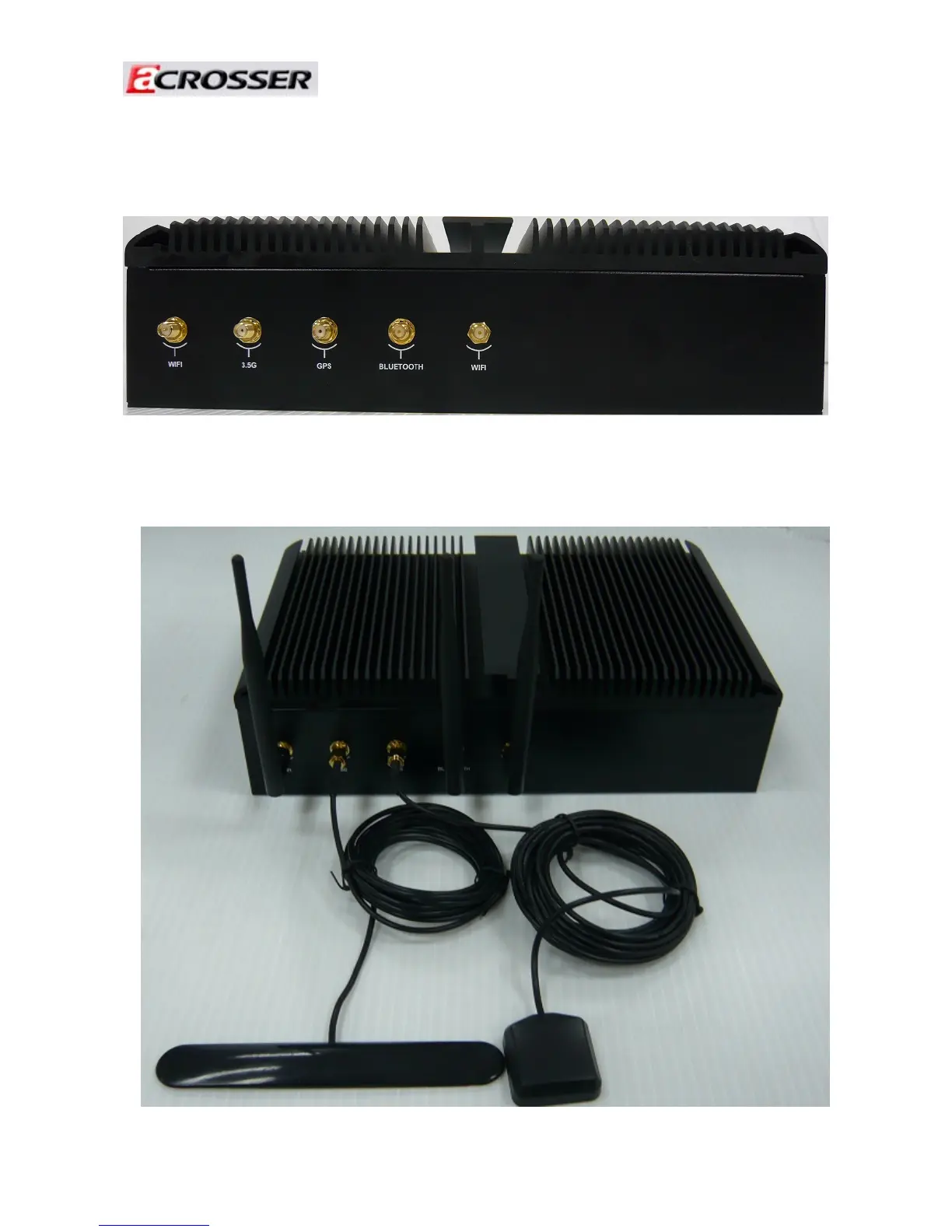

1. Please find out all RF devices from below photo.
2. Take out antenna cables from packing bag and install them following below
photo.
3.
G
