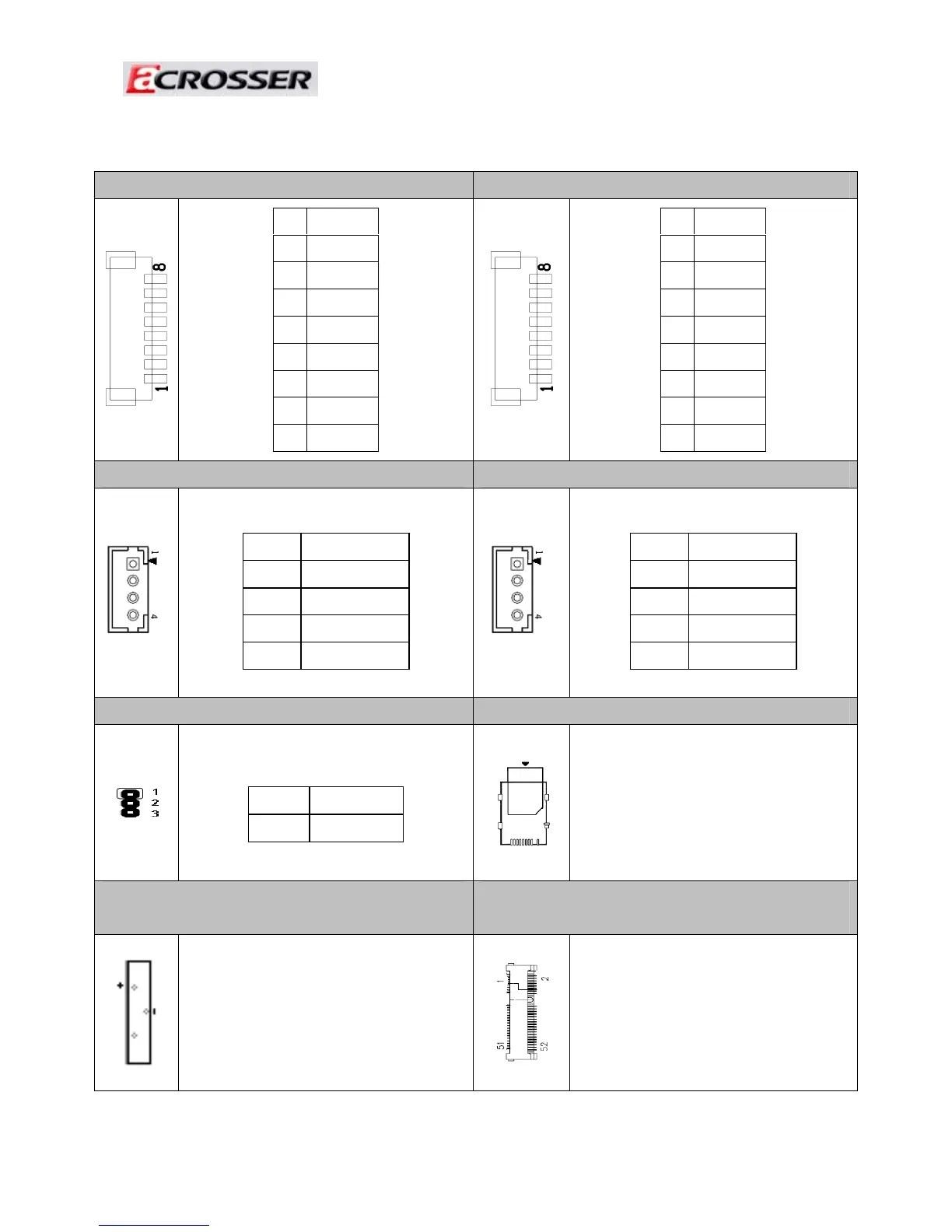

2.2 Connector and Jumper Setting Table
1. CN6: BLUETOOTH connector. 2. CN8: GPS connector.
PIN DEFINE
1
GND
2
USB_D+
3
USB_D-
4
+3.3V
5
LED
6
BT_ON
7
GND
8
+3.3V
PIN DEFINE
1
GND
2
USB_D+
3
USB_D-
4
+3.3V
5
LED
6
GPS_ON
7
GND
8
+3.3V
3. SATA_PWR1: SATA Power connector 4. SATA_PWR2: SATA Power connector
PIN DEFINE
1 +12V
2 GND
3 +3.3V
4 +5V
PIN DEFINE
1 +12V
2 GND
3 +3.3V
4 +5V
5. CN2: Pin Header for clear CMOS 6. CN13: SIM Card Slot
STATUS SETTING
1-2 Clear CMOS
SIM Card Slot for 3G Module.
7. BH1: CMOS battery holder 8. MINIPCIE1: Mini PCI-E connector. (for 3.5G
module)
CMOS battery holder
MINI PCI-E connector
