Acrosser Technology AR-V6002FL - Page 29

Revision: 1.23
29

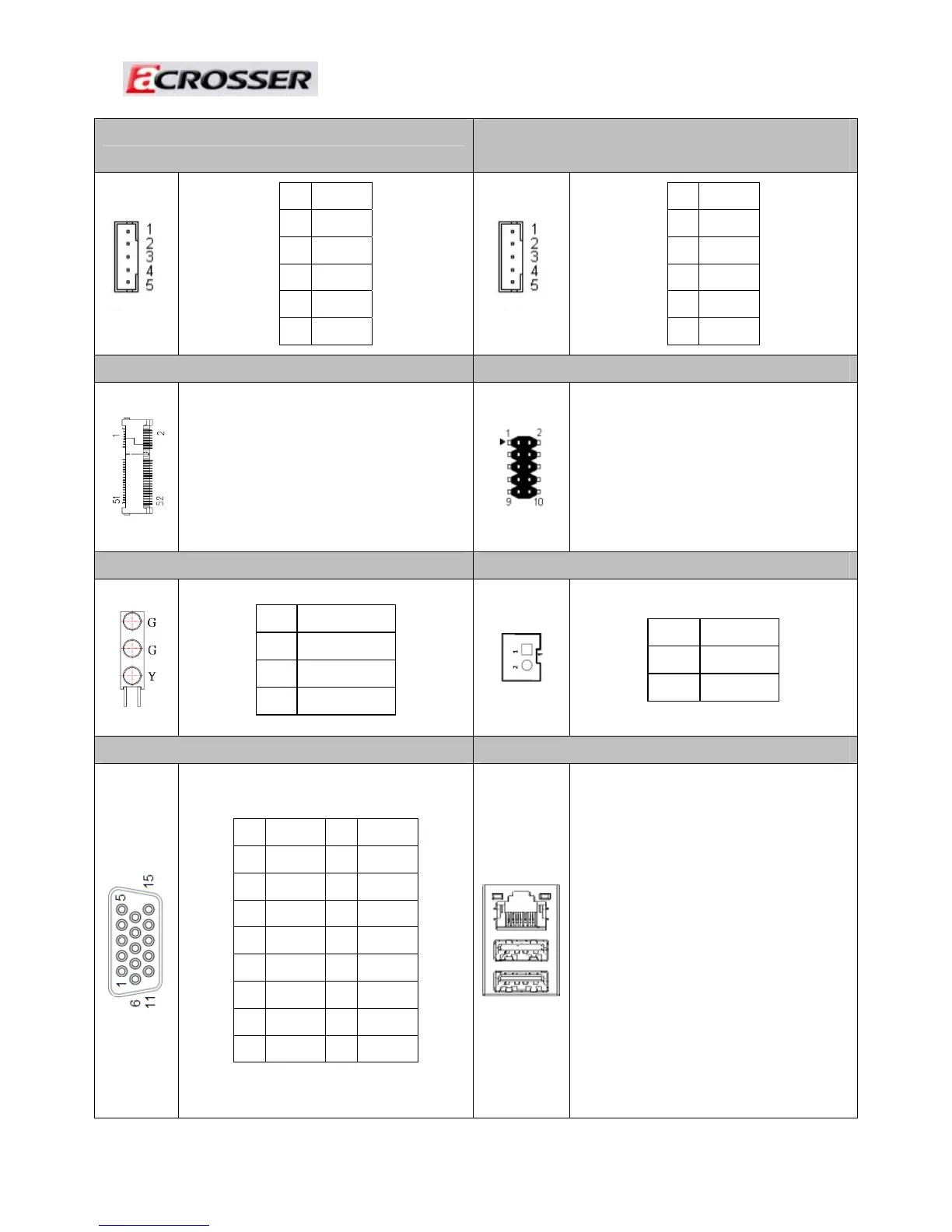

9. CN9: Internal USB2.0 connector (Reserve) 10. CN10: Internal USB2.0 connector
(Reserve)
PIN DEFINE
1
+5V
2
USB5-
3
USB5+
4
GND
5
GND
PIN DEFINE
1
+5V
2
USB6-
3
USB6+
4
GND
5
GND
11. MINIPCIE2: Mini PCI-E connector. 12. CN17: FPGA Programming HEADER.
MINI PCI-E connector. FPGA programming header.
13. LED1: Power State 14. CN18: CANBUS connector
LED SIGNAL
G Status LED (2.5)
G HDD LED
Y Power LED
PIN DEFINE
1 CAN_H
2 CAN_L
15. GPIO1: GPIO connector (2.8) 16. CN5: RJ45 + USB X 2 connector
PIN DEFINE PIN DEFINE
1
GPO0
2
GPO1
3
GPO2
4
GPO3
5
GND
6
GND
7
GND
8
GND
9
GND
10
GND
11
GPI4
12
GPI5
13
GPI6
14
GPI7
15
N.C
RJ45 connector for Gigabit Ethernet port
#1.
Upper: Port #2.
Lower: Port #1.
