ACTpro 1520e and ACTpro 1500e Operating & Installation Instructions

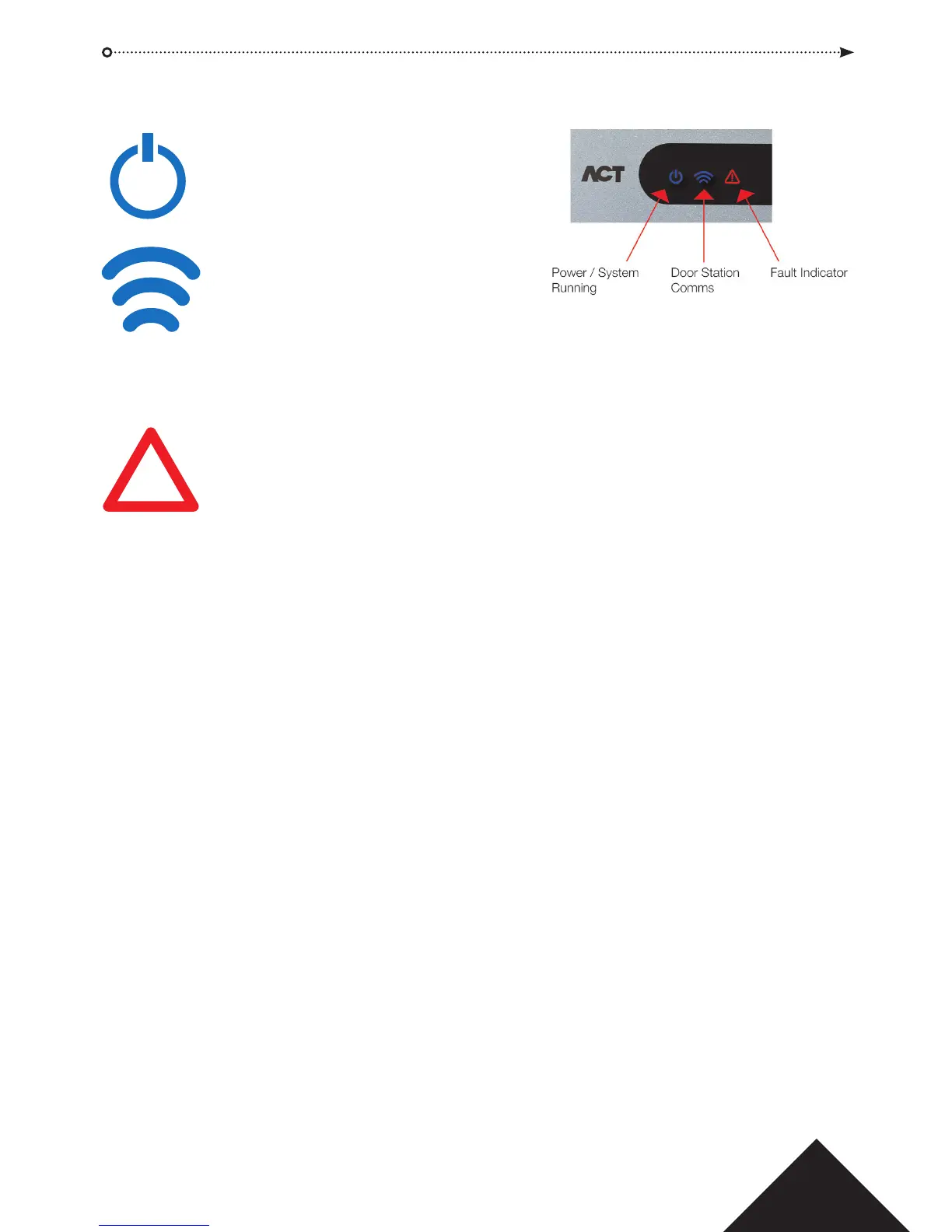

6.0 ACTpro 1520e/1500e Controller Status Indicators
Blue: Power
This indicates that the
ACTpro 1520e/1500e
has power.
Blue: Communications
Constant illumination indicates
that all enabled door stations
are online.
Flashing indicates that one
or more door stations are offl ine.
Red: Fault
This illuminates to indicate a fault on the system.
Possible causes are:
1. Tamper open: ACTpro Controller housing is not closed.
2. Break Glass: ACTpro Controllers provide a method to monitor an Emergency break
glass switch via the B/GL input. The fault LED will illuminate if the Emergency break
glass switch is activated.
3. Mains Fault: ACTpro 1500e Controller will accept a mains present signal from a PSU
(pre-wired on ACTpro 1520e). This is wired into MAINS PRESENT input on the PCB.
When the PSU has no mains supply the fault is active.
4. Door Station offl ine: When one or more enabled door stations are not communicating
with the ACTpro Controller the Fault LED illuminates and the appropriate network
green LED on the PCB will fl ash.
5. Low Supply Voltage: When voltage to the +12V terminal is less than +9V.
6. Fuse Blown: The +12V output on the READER terminals is current limited to provide
short circuit protection. The Fault LED will illuminate if too much current is drawn
from this connection.
