3.0 Connecting Controllers to customer LAN
Each ACTpro Controller can be connected directly to the customer network.
Max distance between devices 100m

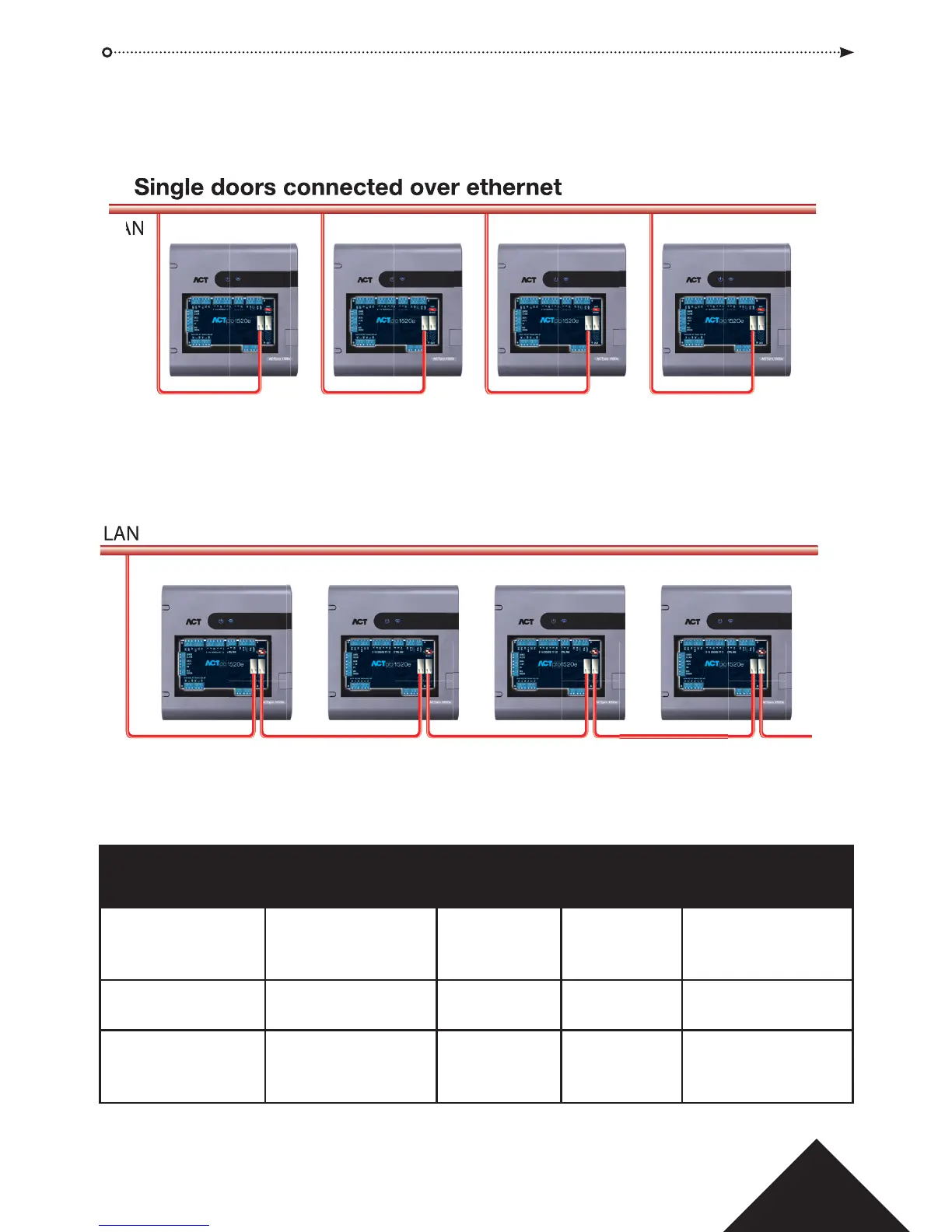

Single doors connected over ethernet
LAN
Single doors connected over ethernet
LAN
Single doors connected over ethernet
Single doors connected over ethernet
Single doors connected over ethernet
Single doors connected over ethernet
From To Network
Type
Cable
Type
Comments
LAN ACTpro Controller TCP/IP Cat5/6 Max distance
between network
devices is 100m
ACTpro Controller ACTpro Readers ACT Protocol 8 core
Screen
Max distance 100m
ACTpro
1520e/1500e
ACTpro Controllers TCP/IP Cat5/6 Max distance
between network
devices is 100m
Cabling Chart
The ACTpro 1520e/1500e Controller has a dual Ethernet switch allowing for the
connection of IP devices. Ensure each controller has a unique IP address.
