ACTpro 1520e and ACTpro 1500e Operating & Installation Instructions

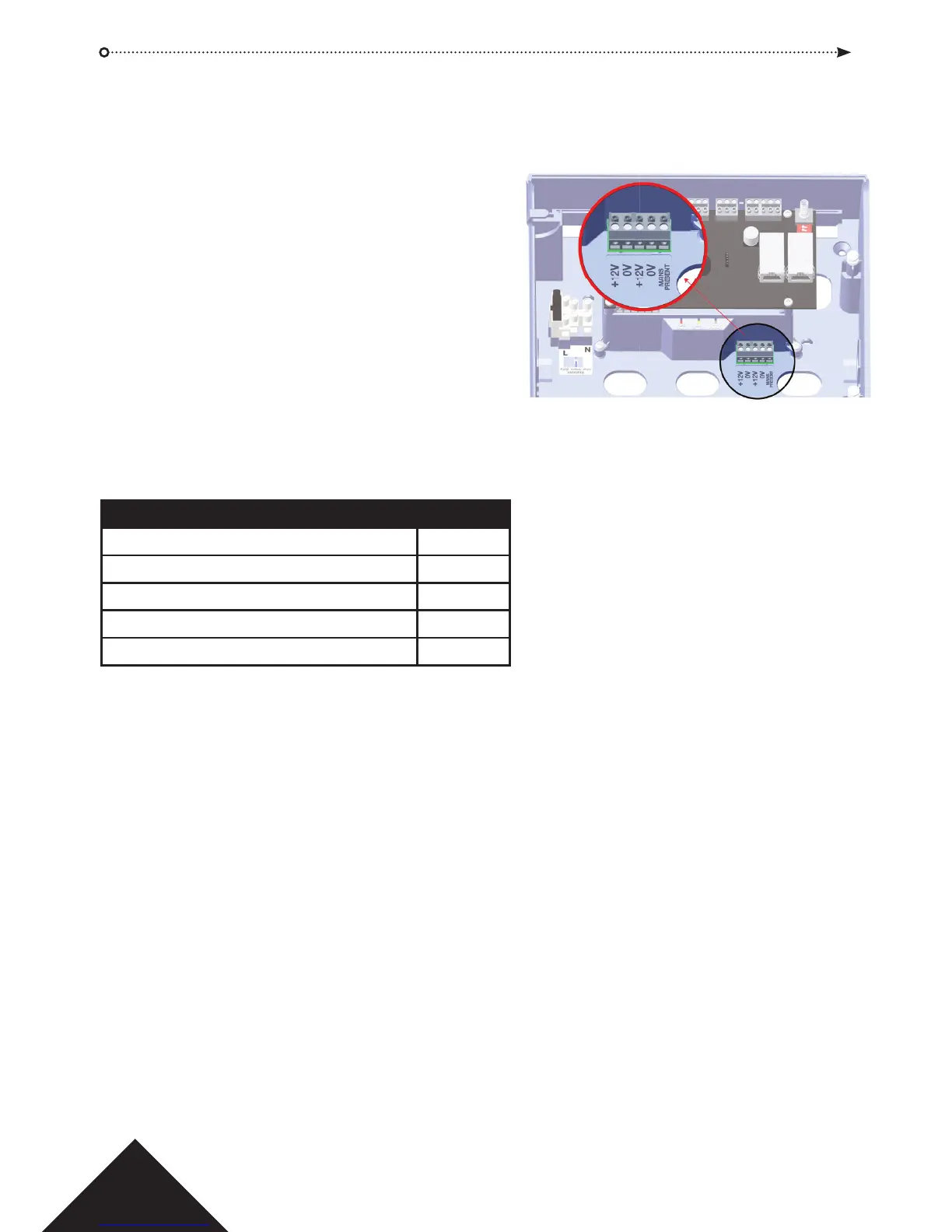

ACTpro 1520e PSU Installation guide
The ACTpro 1520e includes an ACT 12V DC 2A power supply unit.
The 2A output current is used to power the
controller and supply the battery recharge
current. 500mA is reserved for battery recharge
and to power the ACTpro Controller. Therefore
1.5A is available to power readers and the lock.
Example: Power budget of a typical single door
read in/out installation.
Note: See section 11 for ACTpro 1520e Installation & Tech nical Specifi cation
Total Current Available 2000mA
ACTpro Controller and Battery Recharge 500mA
ACT Reader X 2 200mA
Typical Mag Lock 800mA
Total Consumption 1500mA
Spare Capacity 500mA
