7.5 Control unit
The control unit incorporates Newtron
®
technology patented by SATELEC, a company of Acteon group .
Newtron
®
technology emits ultrasonic vibrations in a controlled way.Relayed by SATELEC, a company of Acteon group
tips, these vibrations are used to deliver effective treatments and to ensure patient safety.
The control unit incorporates an dental ultrasonic generator equipped with a piezoelectric command.
7.6 Handpiece
Refer to the user manual of the Cube LED J28821 handpiece, and to the protocol for cleaning, disinfecting and
sterilising the J12801 handpieces and cord for further information.

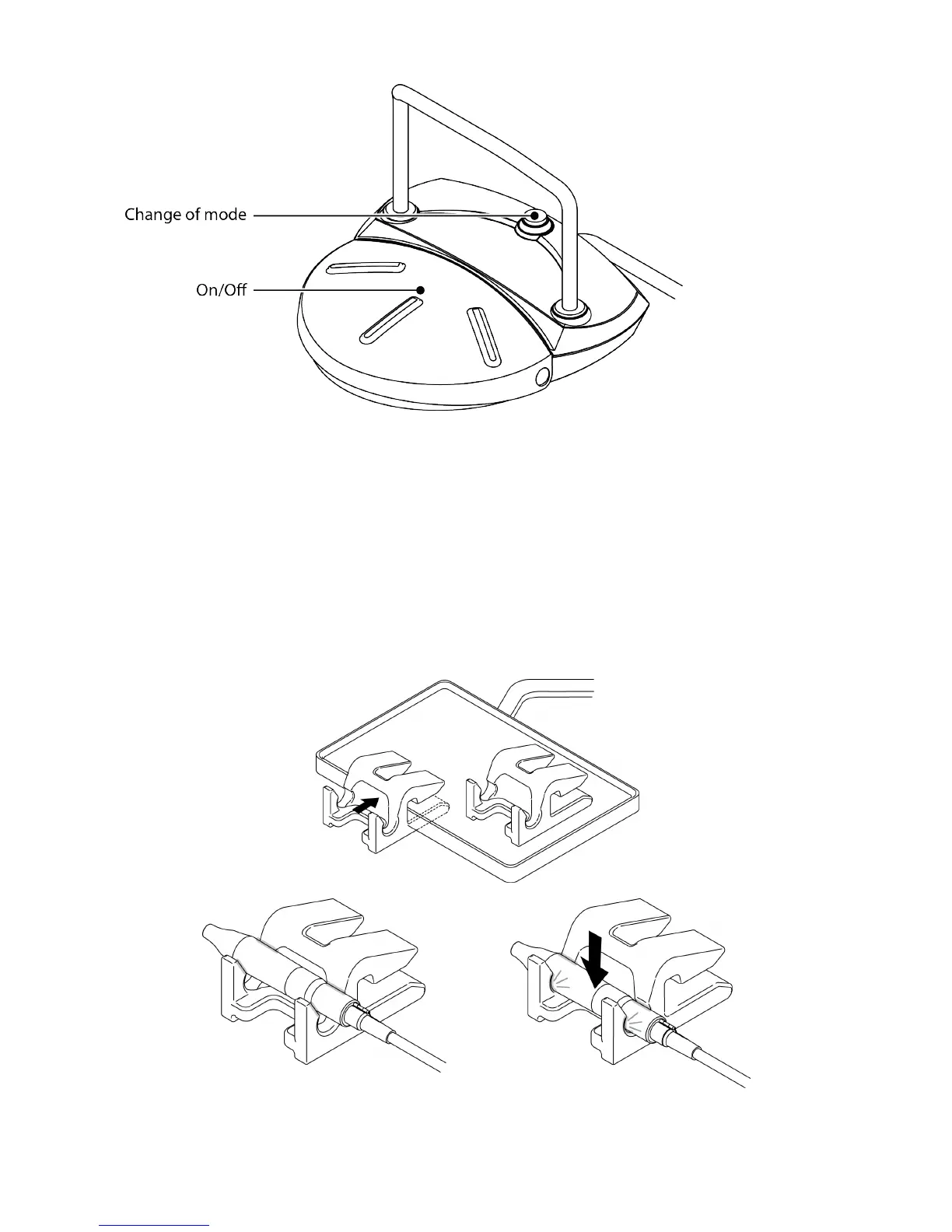

The support holds the handpiece.
The handpiece support should be clipped as close as possible to the work area. Be sure to position it so that the
handpiece, once fitted with a tip, cannot get caught in clothes or cords.
User Manual | Piezotome Cube | J50101 | V4 | (17) | 03/2018 | NO37EN010D - Page 19/39
