7.7 Screen of the medical device
The screen of the medical device serves as the interface display.
It is tactile such that practitioners can make adjustments by pressing the active areas.
Always make adjustments with your finger. Never use stylets or instruments, as these may damage the screen.
The touch zones are capacitive and extremely sensitive. The screen must therefore be constantly clean and
dry to avoid disturbing user-defined settings.

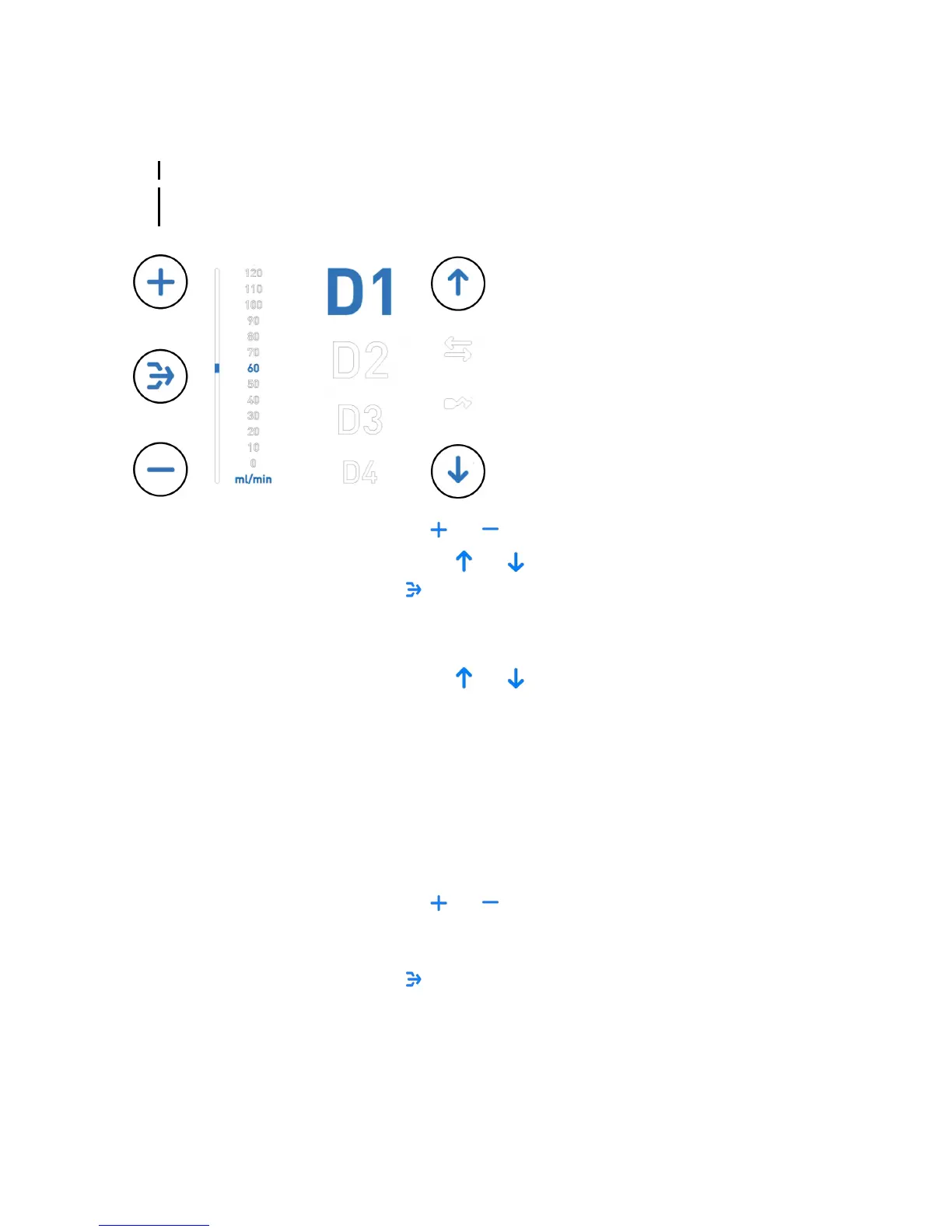

The tactile areas, those with which you can interact with the medical device, are as shown below.
Set the irrigation flow by pressing the tactile zones and
Select the requisite mode by pressing the tactile zones and
Activate the purge by pressing the tactile zone
7.8 Setting the power
The ultrasound power must be adjusted in accordance with the tip used and the required treatment.
Select the requisite mode by pressing the tactile zones and
Each tip must be used in accordance with the settings defined in the power settings table for intraoral surgery
ultrasonic generators [J58010].
7.9 Setting the irrigation flow
The medical device must be set to minimum power to adjust the irrigation flow rate. Press the footswitch until a spray
appears.
Because work habits, feedback and professional training differ from one professional to another, the user must ensure
that the irrigation flow is compatible with the procedure to be carried out to prevent burns to the clinical site.
Adjust the irrigation flow using the irrigation flow configuration arrows. This setting depends on the tip used and on the
procedure to be carried out.
Set the irrigation flow by pressing the tactile zones and
7.9.1 Activating the purge function/starting irrigation
Press and hold the purge icon for as long as necessary.
Activate the purge by pressing the tactile zone
7.10 Air inlets
Air inlets ensure correct ventilation of the control unit. Leave them uncovered to allow air to circulate.
7.11 Control pedal
The pedal can be set either in ON/OFF mode or in progressive operation.
Page 20/39 - User Manual | Piezotome Cube | J50101 | V4 | (17) | 03/2018 | NO37EN010D
