ACTi B412 - Page 29

www.acti.com
Hardware Manual
29

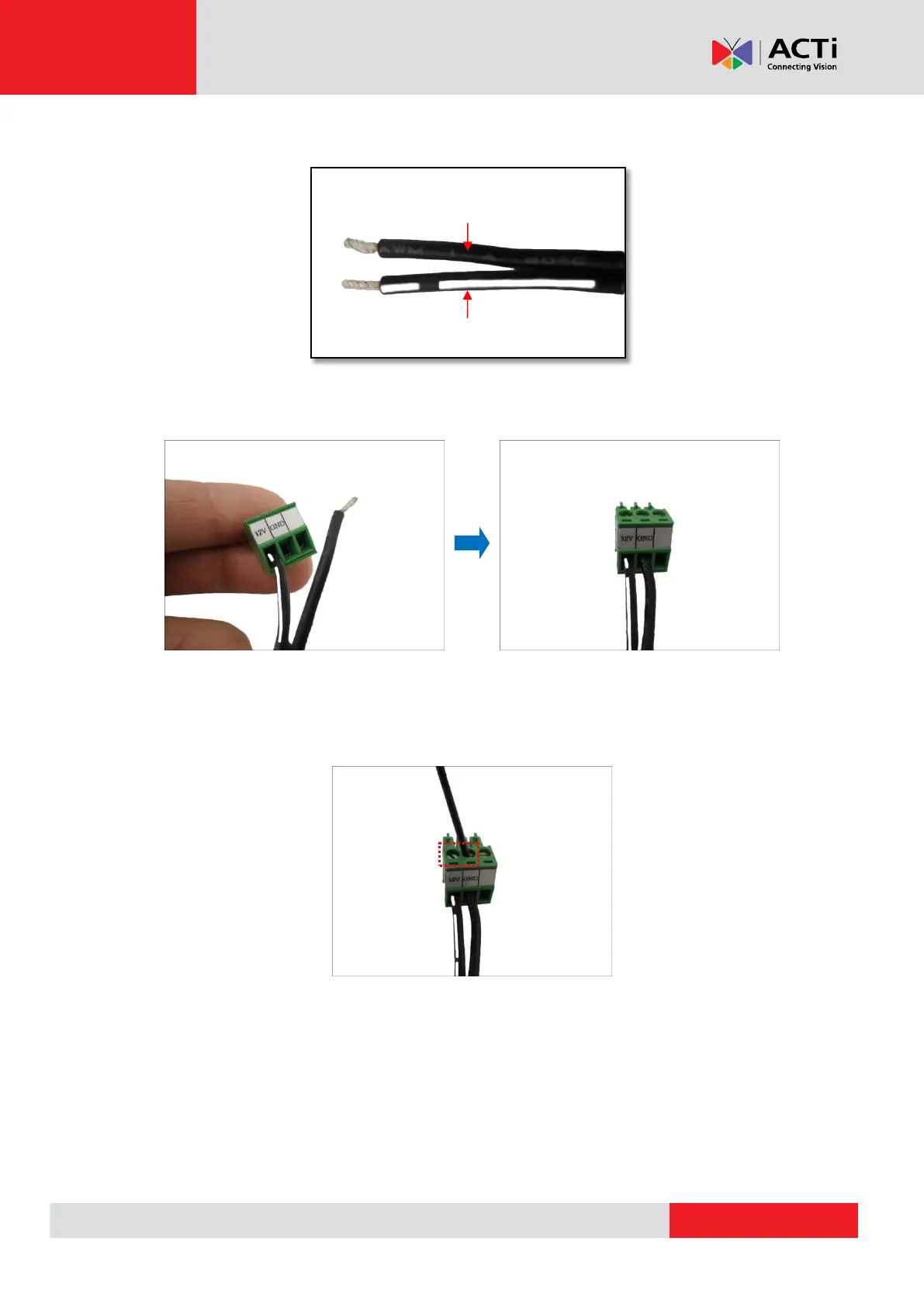

2. Take note that a standard power adapter cable has two (2) different wires:
3. Connect the wire with the white stripe to the 12V pin and the other to the GND pin.
NOTE: The terminal block pictures are for reference only, note that actual label placement
may vary per model.
4. Tighten the screws of the 12V pin and the GND pins to secure the wire connection.
White stripe: Connects to 12V Pin
Connects to GND Pin
