Other Connections

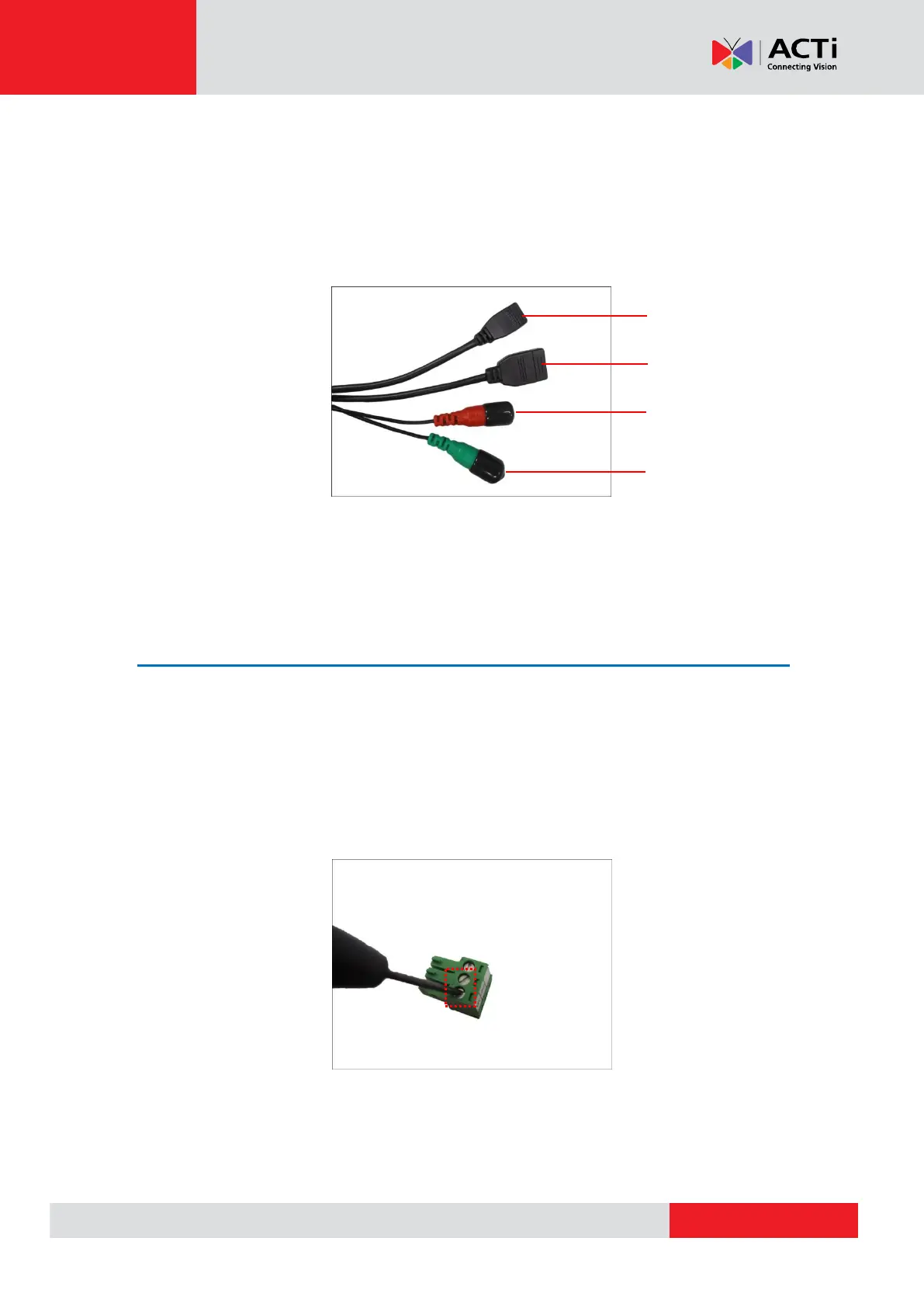

This section describes the procedures in preparing the external devices that you can connect to
the camera. The camera supports DC12V power input, Digital Input and Output (DI/DO) and
Audio Input and Output devices. The use of these devices, however, is optional.
NOTE: If these connectors will not be used, leave the covers on and adapt a suitable
waterproofing method to ensure cables remain protected from water and eliminate short-circuit
hazards.
Connecting a Power Adapter (Optional)
In case of using a non-PoE switch or your PoE switch has limited power supply, you can
purchase a power adapter and directly connect the camera to a power outlet. The power adapter
must be connected to the supplied terminal block before use.
To do this, follow the procedures below:
1. Loosen the screws of the 12V and GND pins of the power terminal block.
Digital Input / Output
Audio Output
Audio Input
Power Connector
