ACTi B412 - Connect to Network; Access Camera Live View

www.acti.com
Hardware Manual
27
NOTE: Different applications and installation environments require different types of
waterproofing methods which may not be covered in this manual. Check your installation
environment and adapt a suitable waterproofing method.

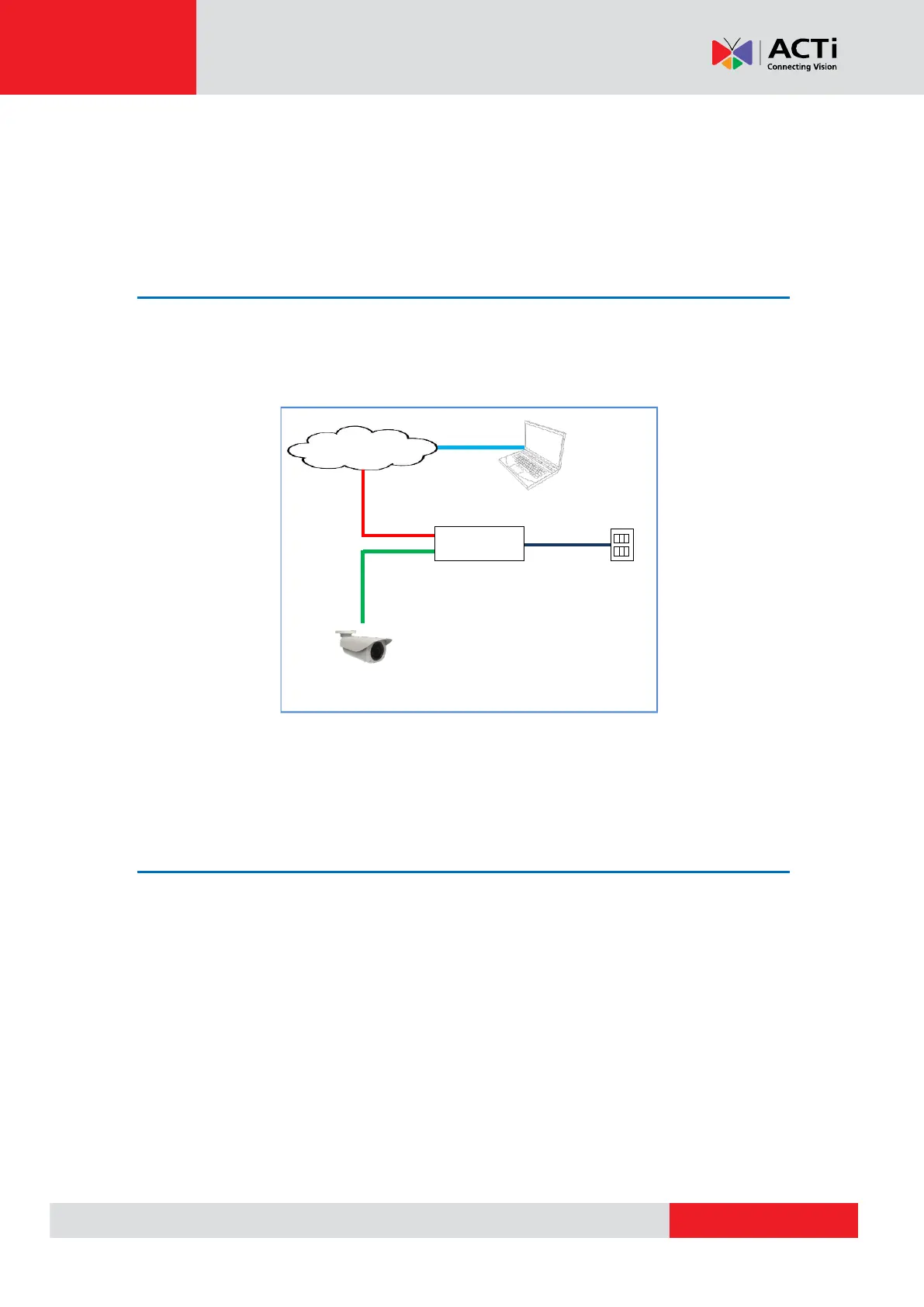

Step 6: Connect to Network
Connect the other end of the network cable to a switch or injector. Then, connect the switch or
injector to a network or PC and a power source. See Power-over-Ethernet (PoE) example
connection diagram below.
Network
AC Power
Source
PoE Injector /
PoE Switch
Power Cable
Ethernet Cable
Ethernet Cable
(Data + Power)
Ethernet Cable
(Data)
Camera
In case of using a non-PoE switch, power up the camera using a power adapter (not supplied).
As needed, power up the other connected devices.
Step 7: Access Camera Live View
See Accessing the Camera on page 41 for more information on how to access the camera live
view.
