Focus and Viewing Angle Adjustments
This section describes the procedures in adjusting the viewing angle, focus, and pan direction of
the different camera models under the 4” Outdoor Dome series.
D7x / E7x Series

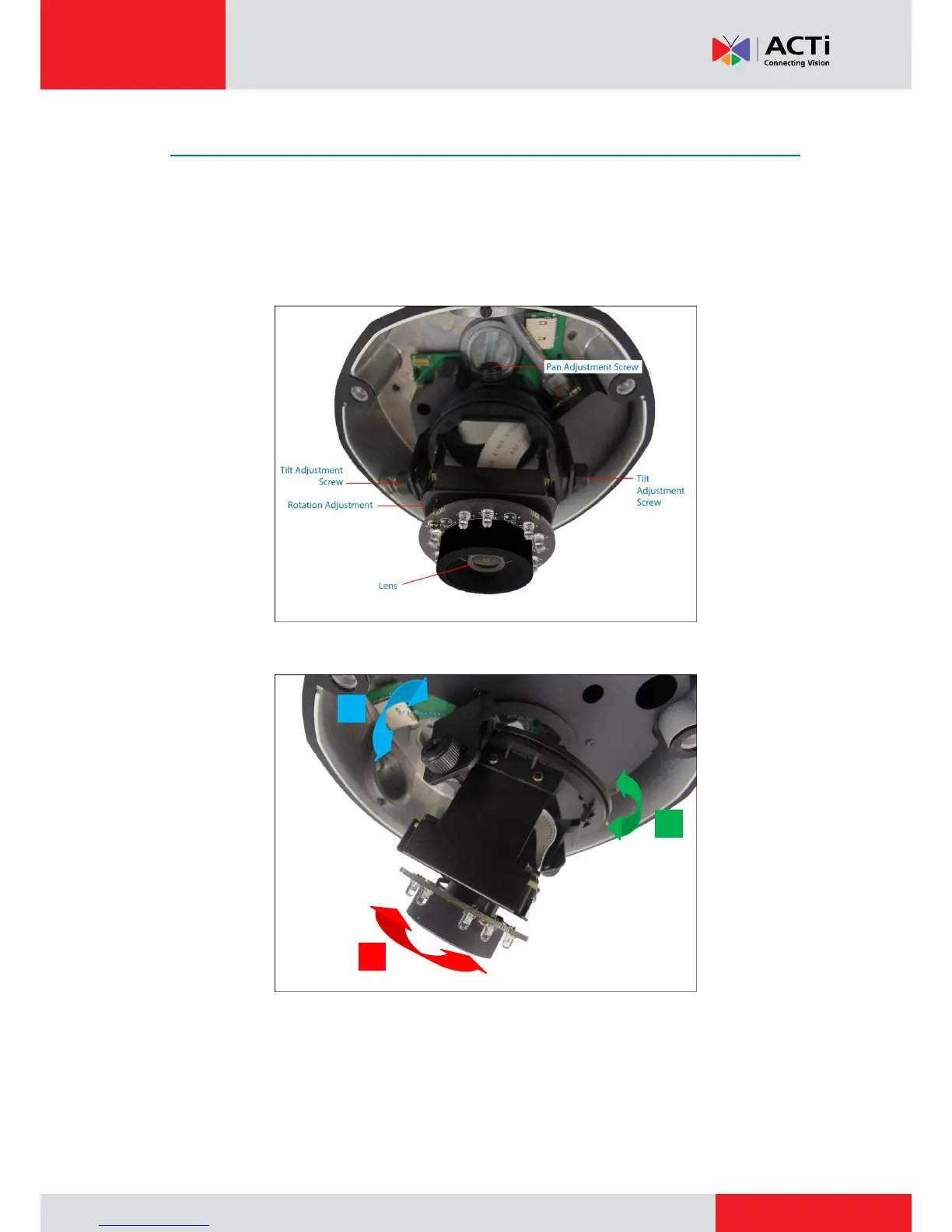

Camera Parts Overview
Adjustment Procedures
1. Loosen the tilt adjustment screws, adjust the tilt, and then tighten back the screws to fix
the tilt position.
2. Move the rotation adjustment to rotate the viewing orientation.
3. Loosen the pan adjustment screw, move the pan direction, and then tighten back the
screw to fix the pan position.
To Next Page
