battery) or a battery with a different capacity (mAh), the
vehicle may require reprogramming to the new battery
type in addition to performing the battery reset. Repro-
gramming is not a function of the tool. Consult the
vehicle manual for additional vehicle-specific informa-
tion.

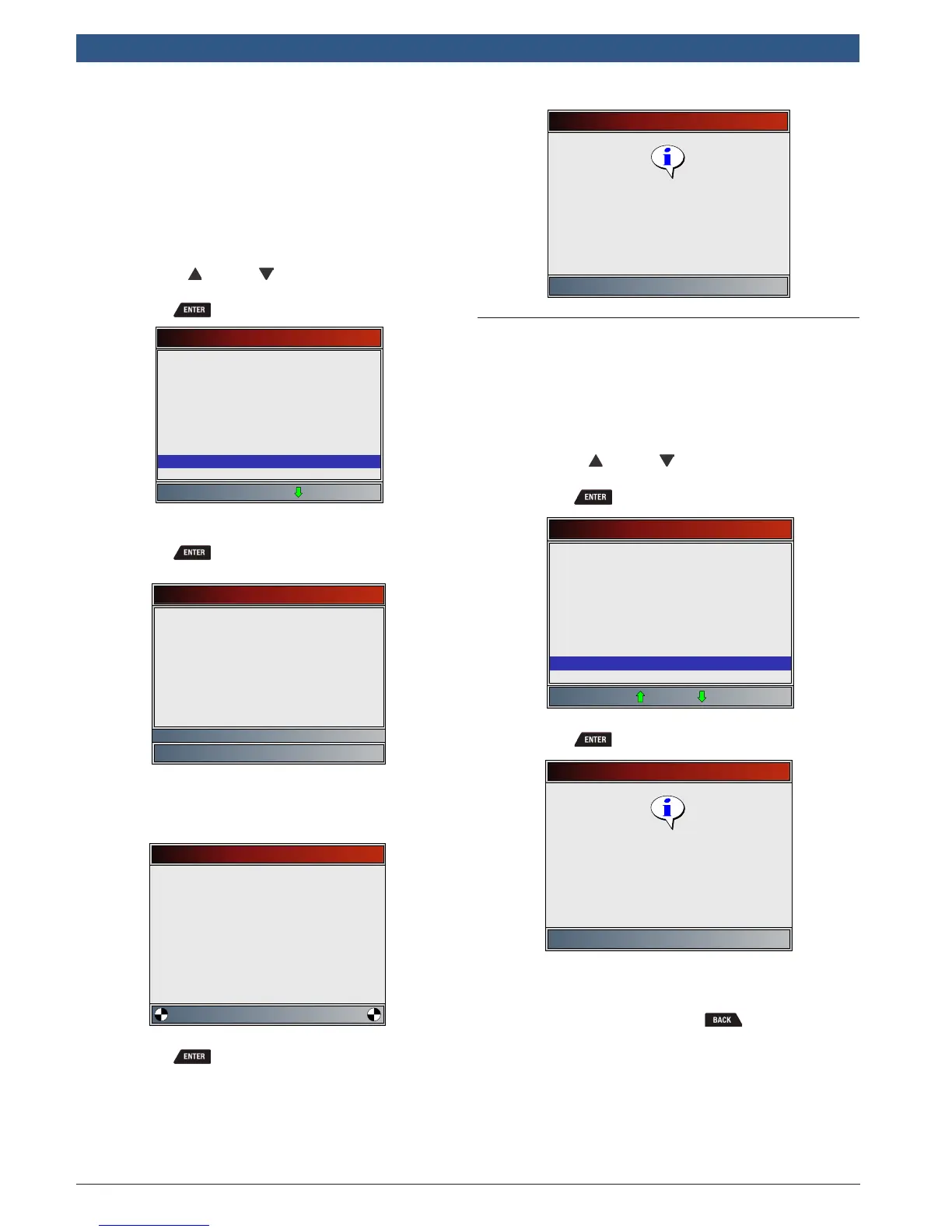

From the Special Tests Menu:
1. Select Battery Reset.
• Use the UP and DOWN keys until Battery
Reset is highlighted.
• Press .
Special Tests
I/M Monitors
Drive Cycle Monitor
State OBD Check
MIL Status
O2 Monitor Tests
Diagnostic Monitor Tests
On-Board Systems
Vehicle Information
Battery Reset
2. Follow the instructions displayed. They will vary
depending on the vehicle.
• Press .
Battery Reset
Required Whenever:
Battery has been replaced
Otherwise instructed by shop
manual
Press ENTER to continue
3. Perform Battery Reset.
• The messages displayed during battery reset
will vary depending on the vehicle.
Battery Reset
Please Wait
(May Take 30 Secs)
Time remaining
0:28
4. Battery Reset Complete.
• Press to return to the Special Tests Menu.
Battery Reset
Press ENTER to continue
Battery System Reset Complete
5.16 Charging System Monitor
The Charging System Monitor function allows the Scan
Tool to provide voltage measurements at the DLC to give
an indication of battery, starter, and alternator perfor-
mance.
From the Special Tests Menu:
1. Select Charging System Monitor.
• Use the UP and DOWN keys until Charging
System Monitor is highlighted.
• Press .
Special Tests
Drive Cycle Monitor
State OBD Check
MIL Status
O2 Monitor Tests
Diagnostic Monitor Tests
On-Board Systems
Vehicle Information
Oil Light Reset
Charging System Monitor
2. Turn the ignition key on but do not start the engine.
• Press .
Charging System Monitor
Turn the key on.
Do NOT start the engine.
Press ENTER to continue
3. The DLC voltage is measured at key on engine off.
• The screen below shows a KOEO voltage of
12.2V.
• Start the engine or press to return to the
Diagnostic Menu. The Scan Tool will monitor the
DLC voltage and progress to step 4 if starter
cranking is detected.
