Storage Manager on ROM
Information Tab
To view or change the configuration of the controller, highlight the
controller in the Tree View. Available tabs are Information and
Configuration, as shown in Figures 2-5 and 2-6.

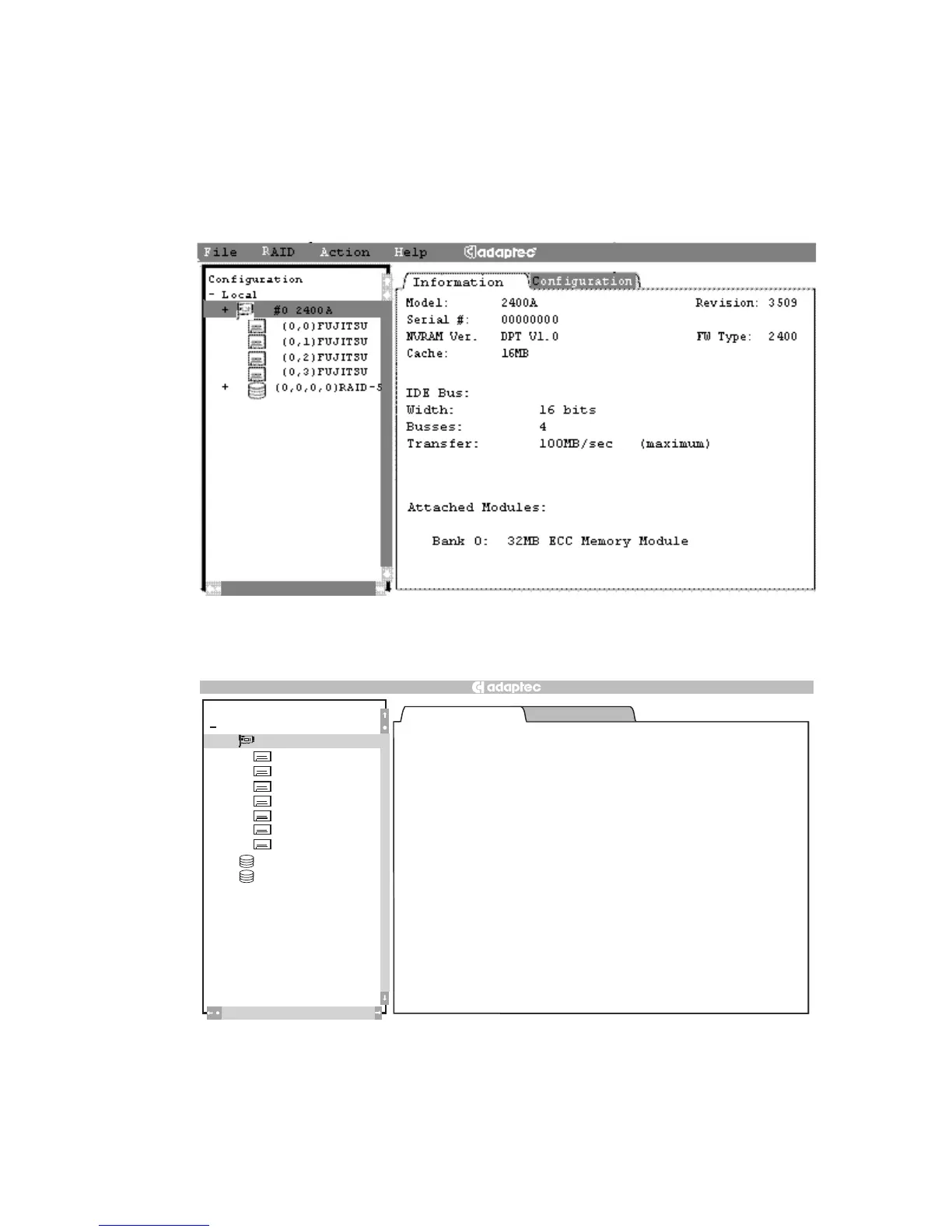

Figure 2-5. Information Tab – ATA
Figure 2-6. Information Tab – SCSI
Information
Configuration
Revision: 320B
FW Type: 2100
ECC: Yes
Model: 2100S
Serial#: 17-000105
DPT1.0
Cache: 48MB
SCSIBus:
Width: 16 bits Ultra3
Busses: 1 SCSIID: 7
Transfer: 80MHz(maximum)
HostBus:
Type: PCI
Transfer: 132MB/sec(maximum)
AttachedModules:
Bank 0: 64MB ECC Memory Module
NVRAMVer.
Local
2100S
+
#0
Configuration
(0,8) SEAGATE
(0,9) SEAGATE
(0,10) SEAGATE
(0,11) SEAGATE
(0,12) SEAGATE
(0,13) SEAGATE
(0,14) SEAGA
TE
+
(0,0,9,0) RAID–1
+
(0,0,12,0) RAID–5
