3-10
Storage Manager
Logical Device Addresses
Every device and array is assigned a logical device address by
Storage Manager. This is the address used by the host operating
system to access the device or array. Logical device addresses appear
in parentheses under the logical device and LSU icons on the Logical
Configuration View window.

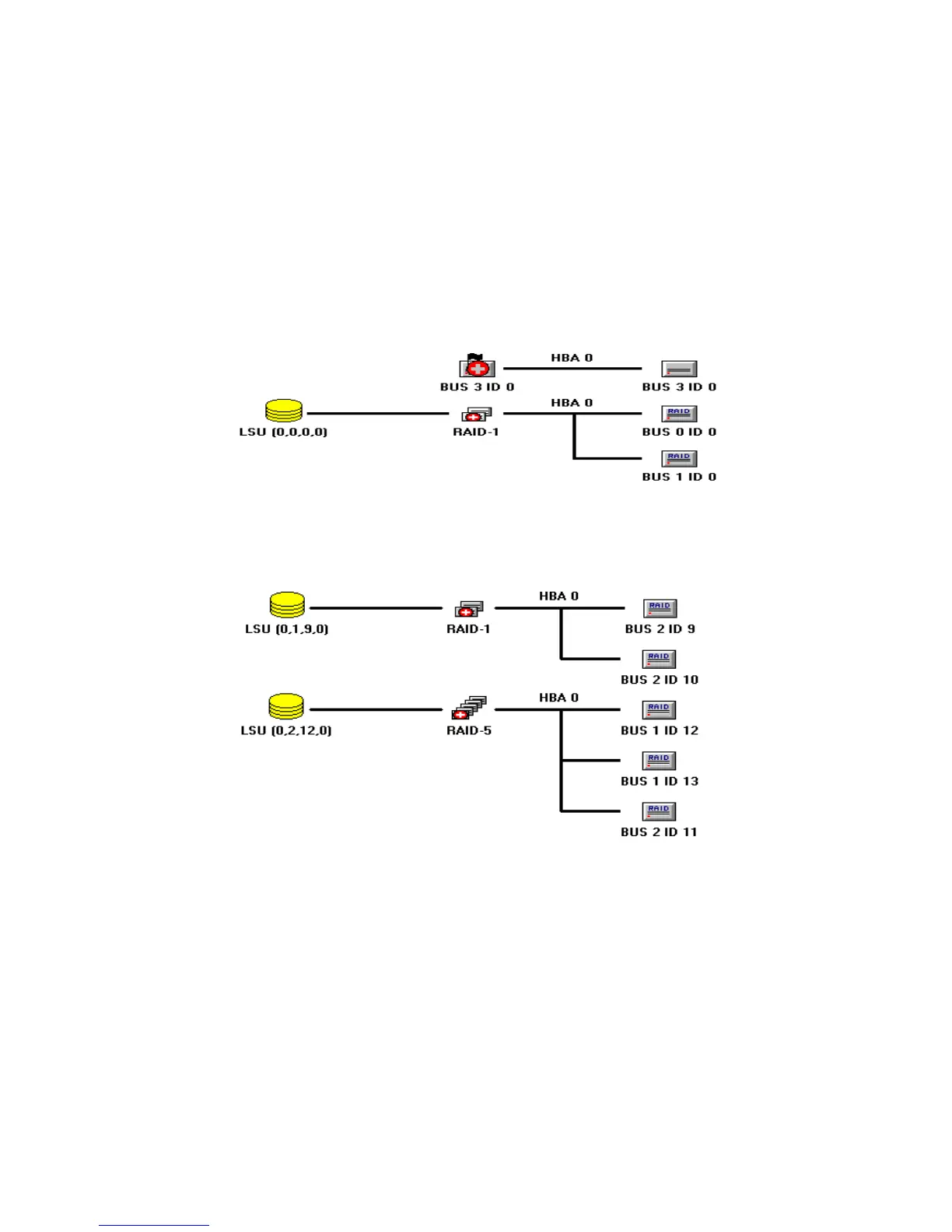

Figures 3-6 and 3-7 show typical LSU numbering, array numbering,
and drive numbers.
Figure 3-6. Logical Device Addressing – ATA
Figure 3-7. Logical Device Addressing – SCSI
