ALPHA® Solar™ Sign
20 Installation: Electrical connection
Electrical connection
The following procedure should only be attempted by a qualified
electrician.
1. Mount the sign as described in “Mounting instructions” on
page 16.
2. Unscrew the 8 screws on the power supply access cover. Then
remove the cover:
3. After removing the power supply access cover, press 0 on the
WARNING
Hazardous voltage.
Contact with high voltage may
cause death or serious injury.
Always disconnect power
to sign prior to servicing.
1
0
12345678910

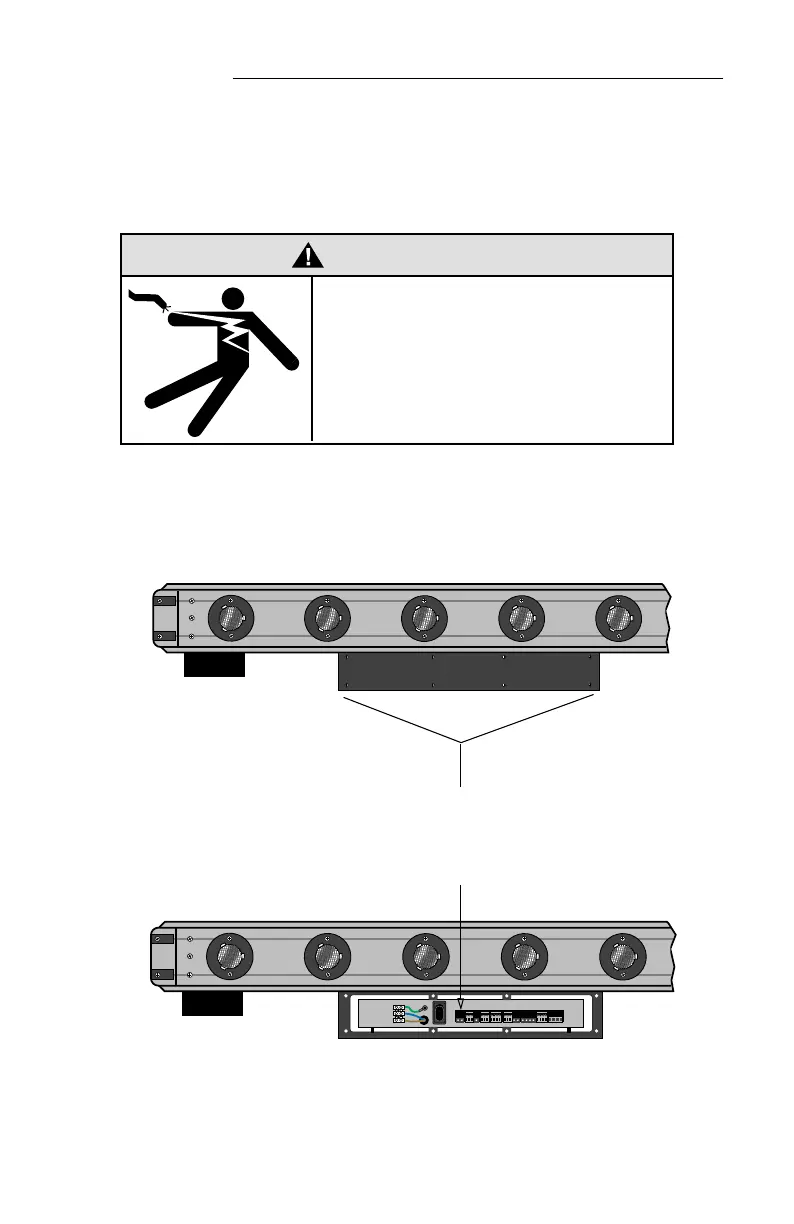

Unscrew the 8 screws on the power supply access cover.
Then remove the cover to expose the power supply.
NOTE: To remove one of the screws, you’ll have to
use a special Torx bit (supplied).
Figure 3: Alpha® Solar ™(bottom view) — Power supply access cover removal
