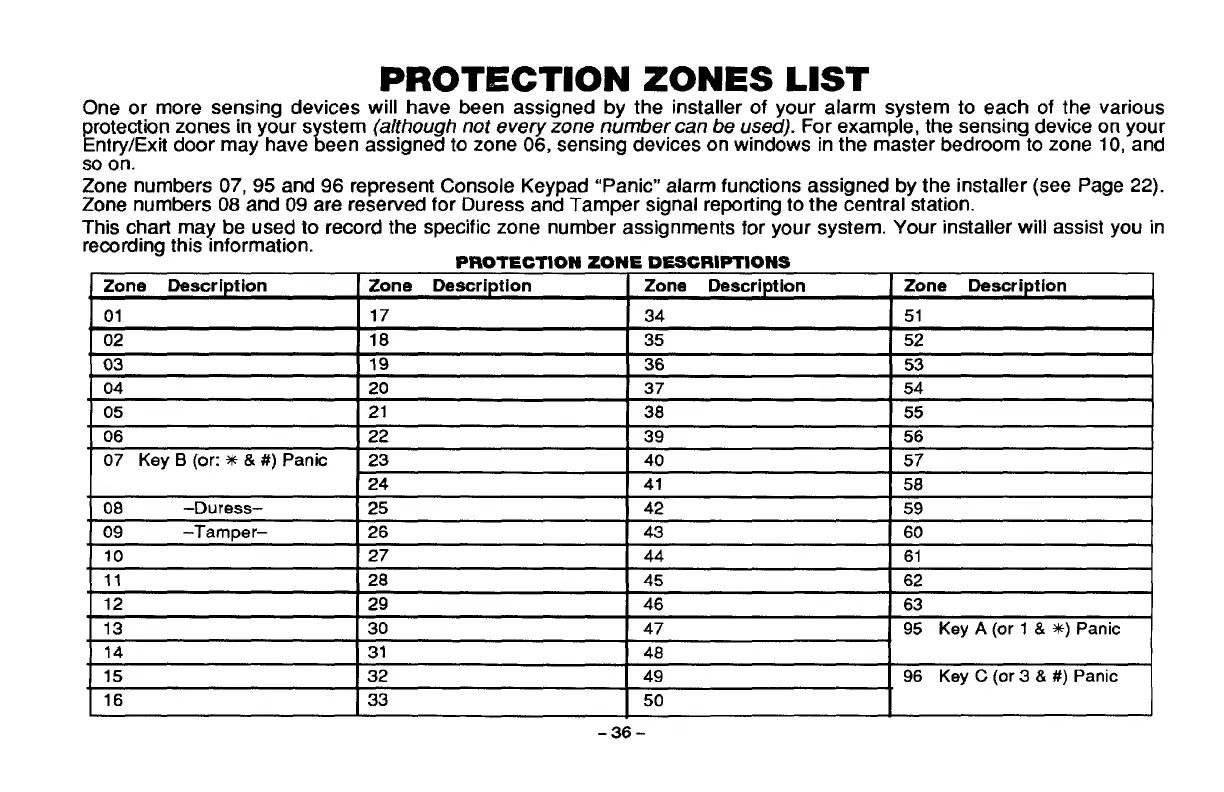

PROTECTION ZONES LIST
One or more sensing devices will have been assigned by the installer of your alarm system to each of the various
E
rotection zones in your system
(although not every zone number cm be used). For example, the sensing device on your
ntry/Exit door may have been assigned to zone 06, sensing devices on windows in the master bedroom to zone 10, and
so on.
Zone numbers 07, 95 and 96 represent Console Keypad “Panic” alarm functions assigned by the installer (see Page 22).
Zone numbers 08 and 09 are reserved for Duress and Tamper signal reporting to the central station.
This chart may be used to record the specific zone number assignments for your system. Your installer will assist you in
recording this information.
Protection ZONE DESCRIPTIONS
Zone Description Zone Description
Zone Description Zone Description
01
17
34 51
02
18
35 52
03 19 36
53
04
20
37
54
05 21 38
55
06
22 39 56
07 Key B (or: s & #) Panic 23 40
57
24 41
58
08 -Duress-
25
42
59
09 -Tamper– 26 43 60
10
27 44 61
11 28 45 62
12
29
46
63
13 30 47 95 Key A (or 1 & ~) Panic
14
31 4a
15 32 49 96 Key C (or 3 & #) Panic
16 33
50
-36-
