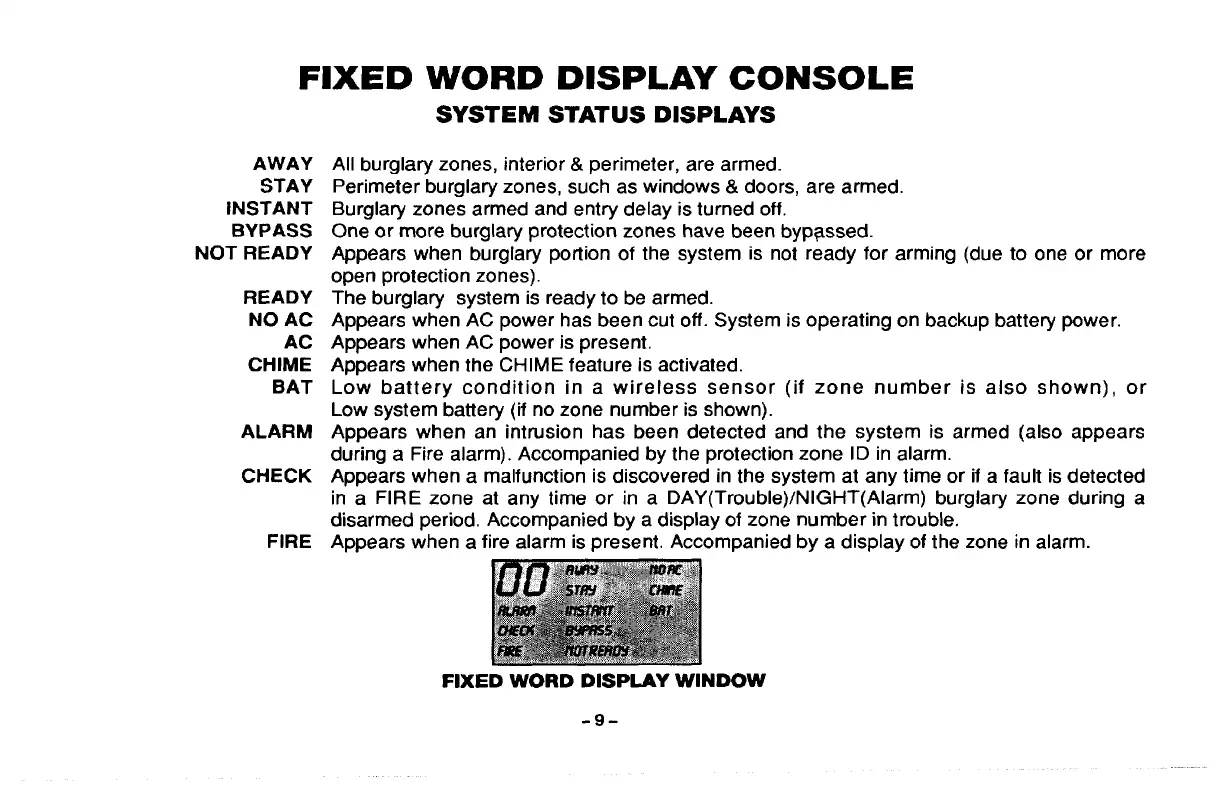

FIXED WORD DISPLAY CONSOLE
AWAY
STAY
INSTANT
BYPASS
NOT READY
READY
NO AC
AC
CHIME
BAT
ALARM
CHECK
FIRE
SYSTEM STATUS DISPLAYS
All burglaryzones, interior& perimeter, are armed.
Perimeter burglaryzones,
such as windows & doors, are armed.
Burglary zones armed and entry delay is turned off.
One or more burgla~ protectionzones have been byppssed.
Appears when burglary
portion of the system is not ready for arming (due to one or more
open protectionzones).
The burglary system is ready to be armed.
Appears when AC power has been cut off. System is operating on backup battery power.
Appears when AC power is present.
Appears when the CHIME feature is activated.
Low battery condition in a wireless
sensor (if zone number is also shown), or
Low system battery (if no zone number is shown).
Appears when an intrusion has been detected and the system is armed (also appears
during a Fire alarm). Accompanied by the protection zone ID in alarm.
Appears when a malfunction is discovered in the system at any time or if a fault is detected
in a FIRE zone at any time or
in a DAY(Trouble)/NIG HT(Alarm) burglary zone during a
disarmed period. Accompanied by a display of zone number in trouble.
Appears when a fire alarm is present. Accompanied by a display of the zone in alarm.
FIXED WORD DISPLAY WINDOW
-9-
