ADOS S.R.L. Buccinasco (MI)
492-MTU10006 Rev. 4 Page 26 of 49
4.2 Instrument mounting
The instrument is designed for panel mounting. The cut-out dimensions are indicated in Figure 2.
Insert the instrument, hook the two attachment brackets into the special holes located on the side of the
box. Then, use a screwdriver to adjust the set screws until the front frame is flush with the board.
For the necessary depth, consider the length of the instrument plus about 5 cm for the connection cables.

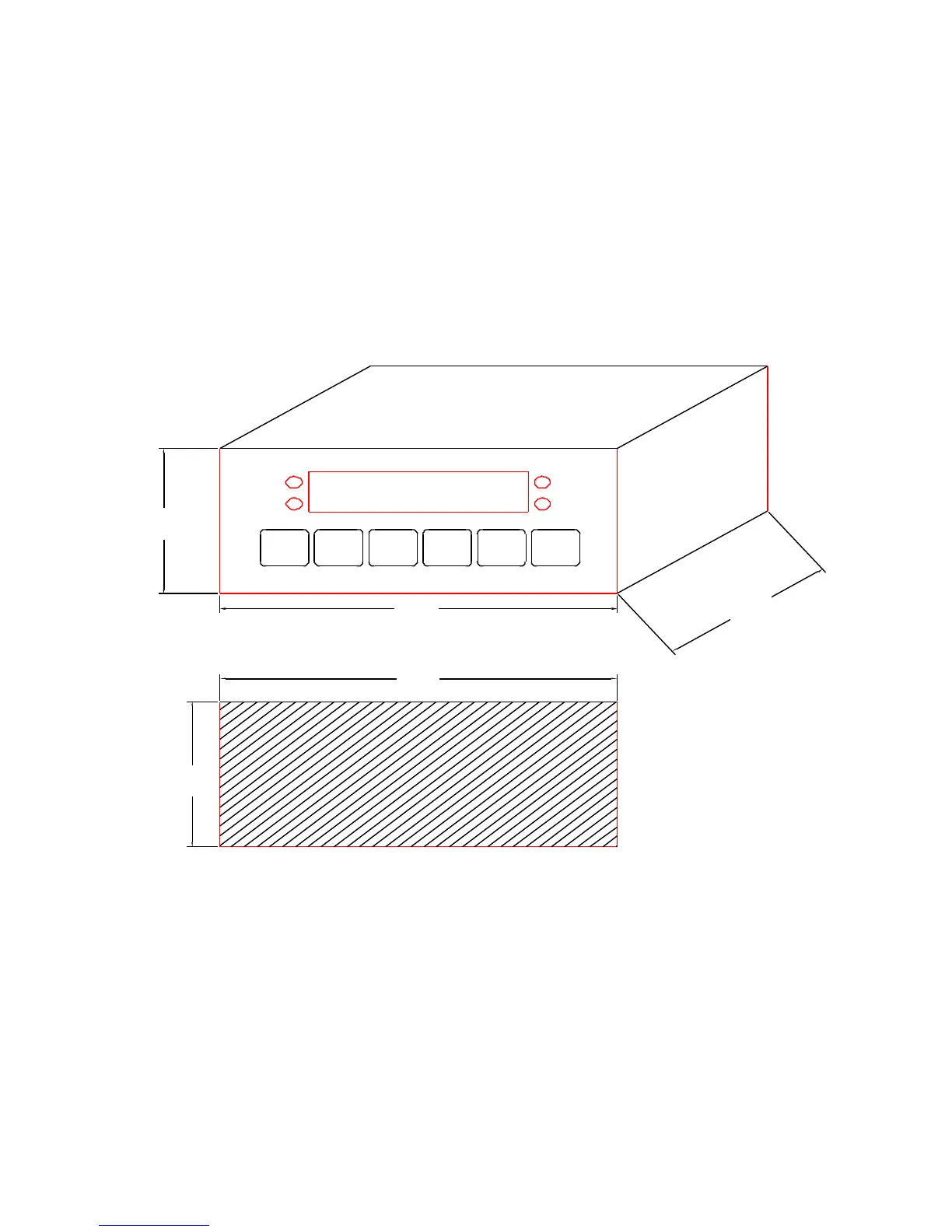

Figure 2 - A100E drilling template
