INSTALLATION
10

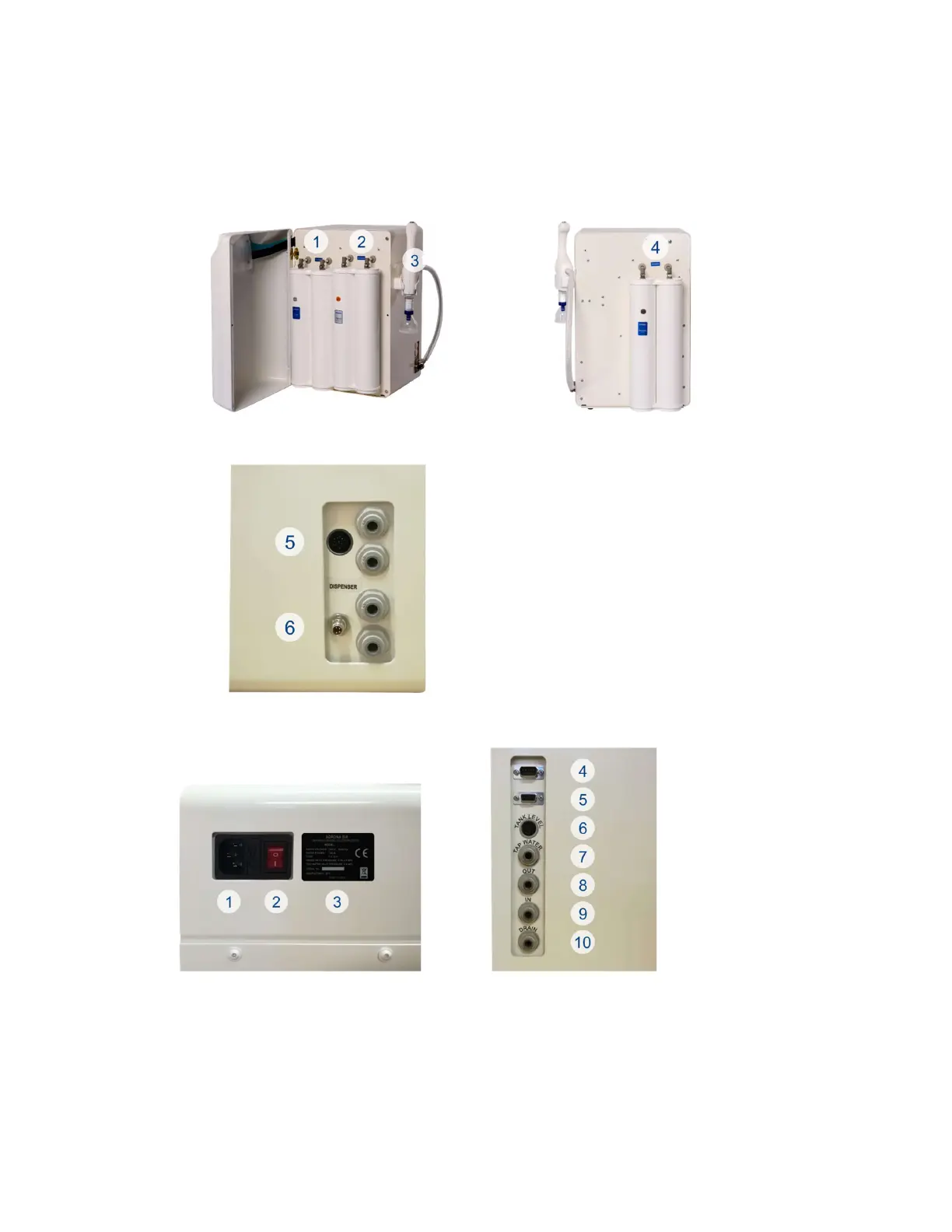

Front and side panel
Look at the front and side panels of the Adrona Q-Front N water purification system and locate pre-
filter and deionization module installation sites as well as inlet and outlet fittings.
Front panel
Rear panel
1 – pre-filter Q module (part no. 10411)
2 – polishing Q module (part no. 10031)
3 – flexible dispenser in holder
4 – deionization Q module (part no. 10311)
Side panel – right lower part
5 – connection to the dispenser
“Flow Point 3” (available as additional
equipment)
6 – connection to the flexible dispenser
Side panel – left upper part
Side panel – left lower part
1 – electric cable plug
2 – power switch
3 – Information about system & serial
number (depending on configuration
sticker could be placed on the rear panel)
4 – connection to PC
5 – operation/ validation port
6 – TANK LEVEL connection
7 – TAP WATER 1/4” connection
8 – OUT (connection to the tank)
9 – IN (connection to the tank)
10 – DRAIN 1/4” connection
