Adrona Q-Front N Trace - Side Mounted Dispenser Installation

INSTALLATION
14
Side mounted dispenser installation
[1]

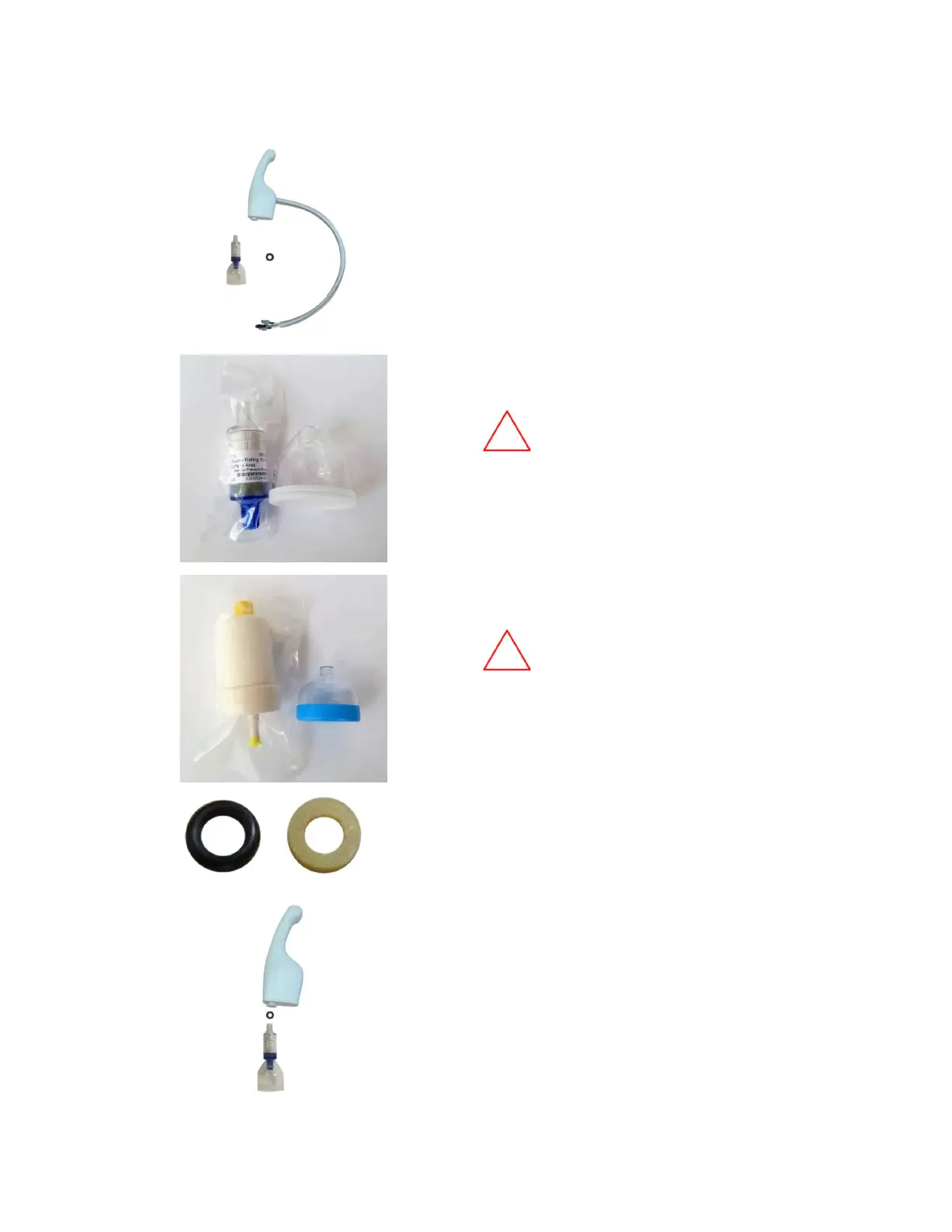

Side mounted dispenser consists of:
- dispenser arm with flexible tube;
- ultrafilter or microfilter (depending on
configuration);
- O-ring
[2]
0.22 m dispense filter packaging
(part no. 10012)
For HPLC, Trace and Bio UF
configuration only
[3]
Ultrafilter packaging (part no. 10120)
For Bio configuration only
[4] [5]
O-rings:
1 – black for 0.22 m dispense filter
2 – yellow for ultrafilter
[6]
- Unpack the dispense filter and screw it to
the dispenser.
- Before that, make sure that the O-ring is
inside the holder
