OPC8000 series 33
© ADS-TEC GmbH • Heinrich-Hertz-Str. 1 • 72622 Nürtingen

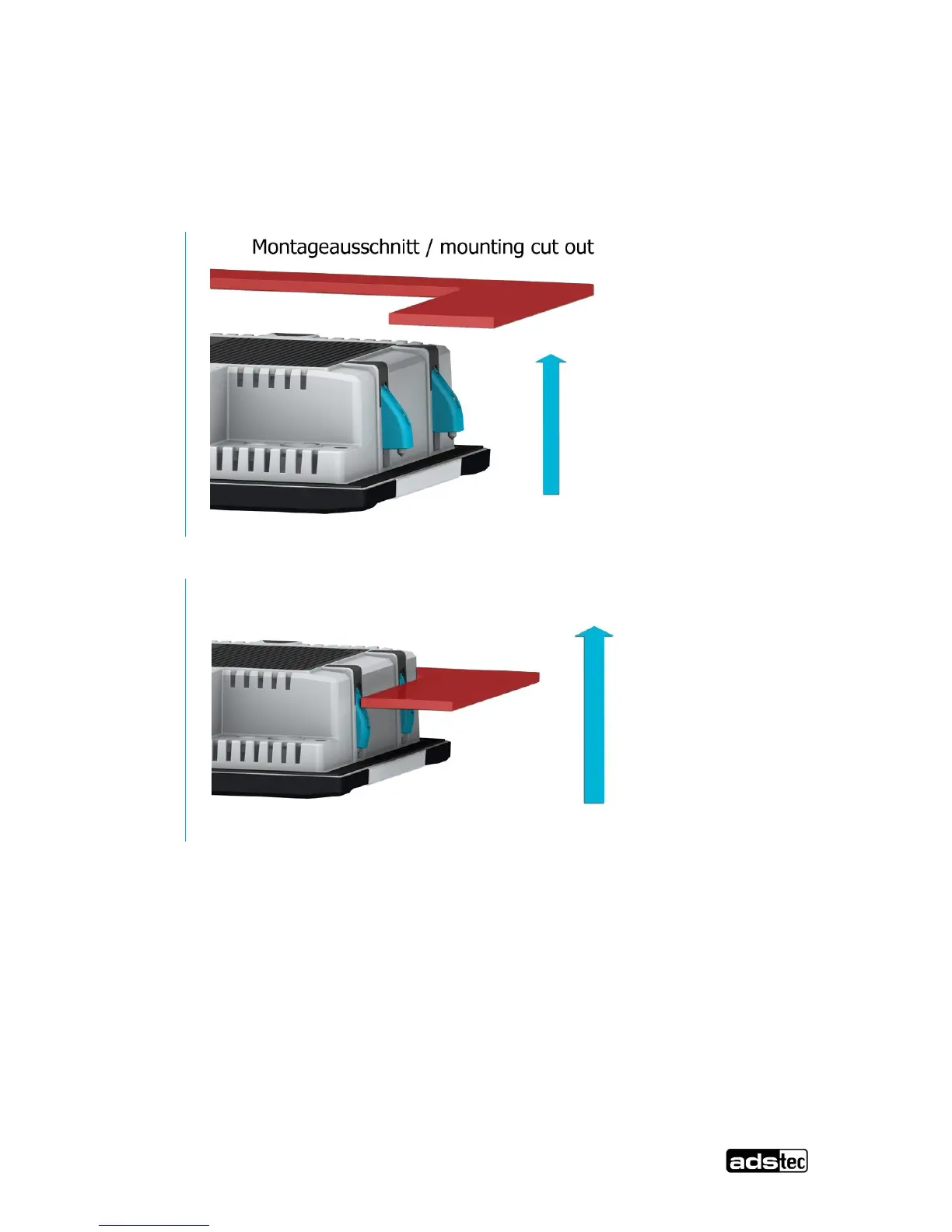

1) Cut out recess in the switch board or switching cabinet door according to the
installation layout.
The fixing screws for the tensioners must be screwed in.
The screws can be unscrewed with a size TX8 screwdriver.
2) The device is placed in the created recess. The tensioners snap back.
