ADS-tec OPC8008 - Replacing the Working Memory (RAM) (OPC8013-8022)

OPC8000 series 59
© ADS-TEC GmbH • Heinrich-Hertz-Str. 1 • 72622 Nürtingen

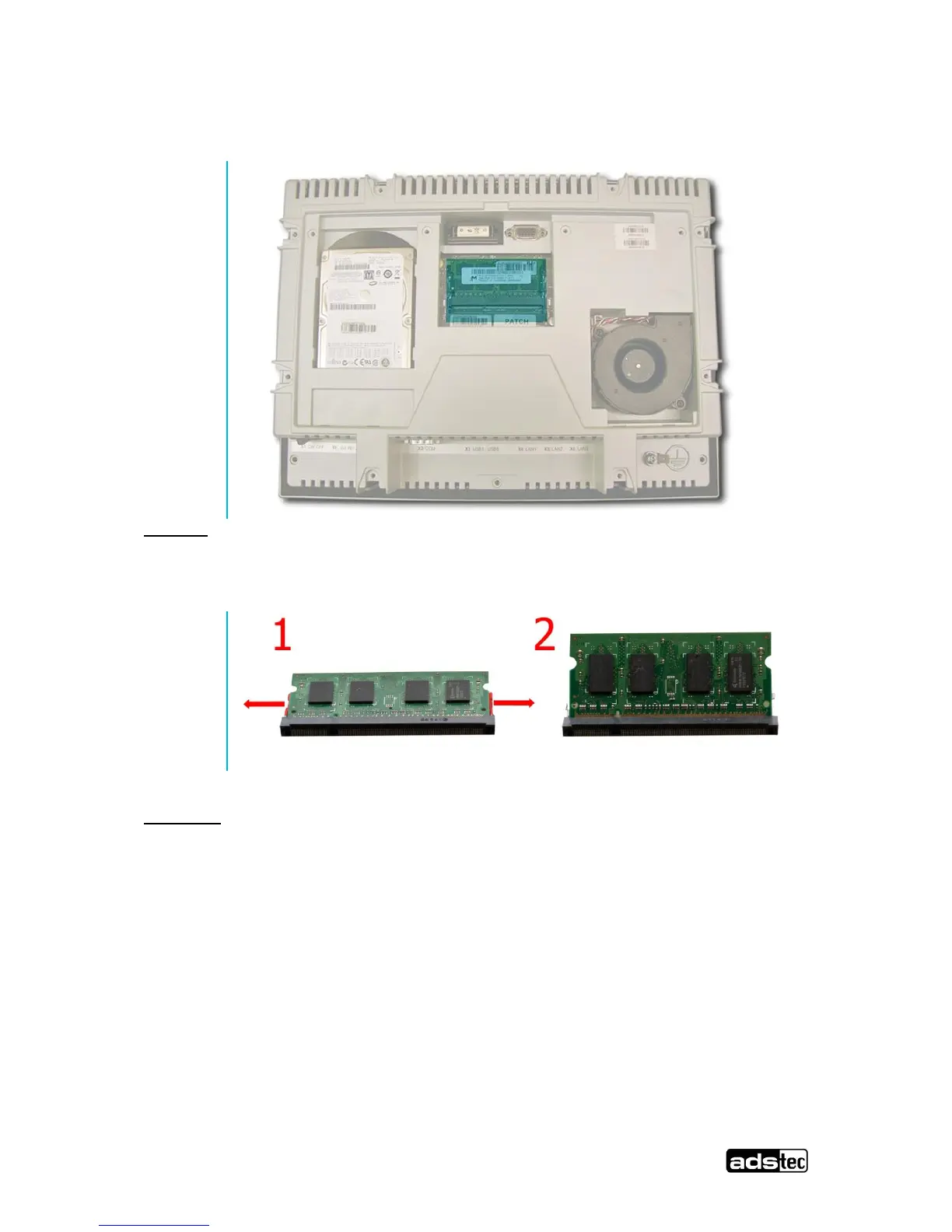

12.6 Replacing the working memory (RAM) (OPC8013-8022)
Removal
The RAM memory is released by carefully pulling apart the retaining clips (1+2). It can now be
replaced with new RAM memory.
Installation
Insert the new RAM memory in the designated slot and push the RAM memory to the back
until the retaining clips engage.
