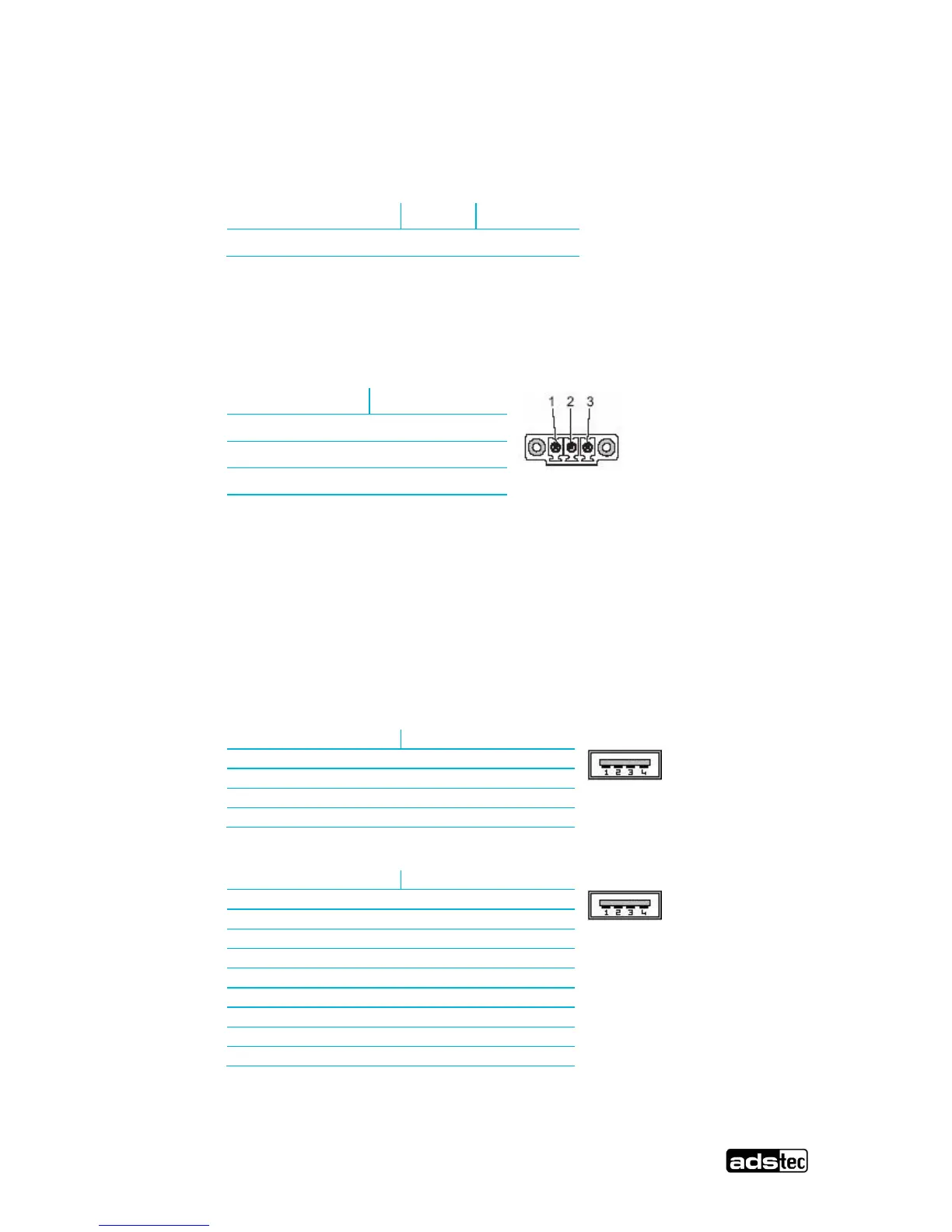

7 Interfaces
7.1 Interface setup
Interface
IRQ
Address
COM1
4
3F8h
Pos: 26 /Datentec hnik/Schnittstell en/Spannungs versorgung/Sp annungsversorg ung für VMT60 xx-Serie @ 2 \mod_1260450 284020_6.doc @ 6853 @
7.2 Voltage supply 24V DC
The supply voltage is fed to the device via a lead-through terminal with screw connection. (The
figure shows the socket inside the device).
PIN number
Signal name
1
24V DC
2
PE
3
0 V DC
Technical data of the power adapter
• Input voltage: 19 to 29V DC
• Max. switch-on current: 7A(10ms)
T 60xx @ 1\mod_ 12466310448 40_6.doc @ 5 885 @
Pos: 29 /Datentec hnik/Schnittstell en/USB-Ansc hluss/USB-Ansc hluss für VMT 60xx @ 2\mod _1260457598 122_6.doc @ 68 60 @
7.3 USB connections
The USB interfaces are used for connecting peripherals with USB connection. These
interfaces comply with the USB 2.0 e.g. USB 3.0 standard requirements.
USB 2.0
Pin-Number
Signal-Name
1
VDC
2
D -
3
D +
4
GND
USB 3.0
Pin-Number
Signal-Name
1
VBUS
2
D -
3
D +
4
GND
5
StdA_SSRX−
6
StdA_SSRX+
7
GND_DRAIN
8
StdA_SSTX−
9
StdA_SSTX+
