SECTION 7: Troubleshooting

7–7

LED Test

Perform the LED Test as follows:

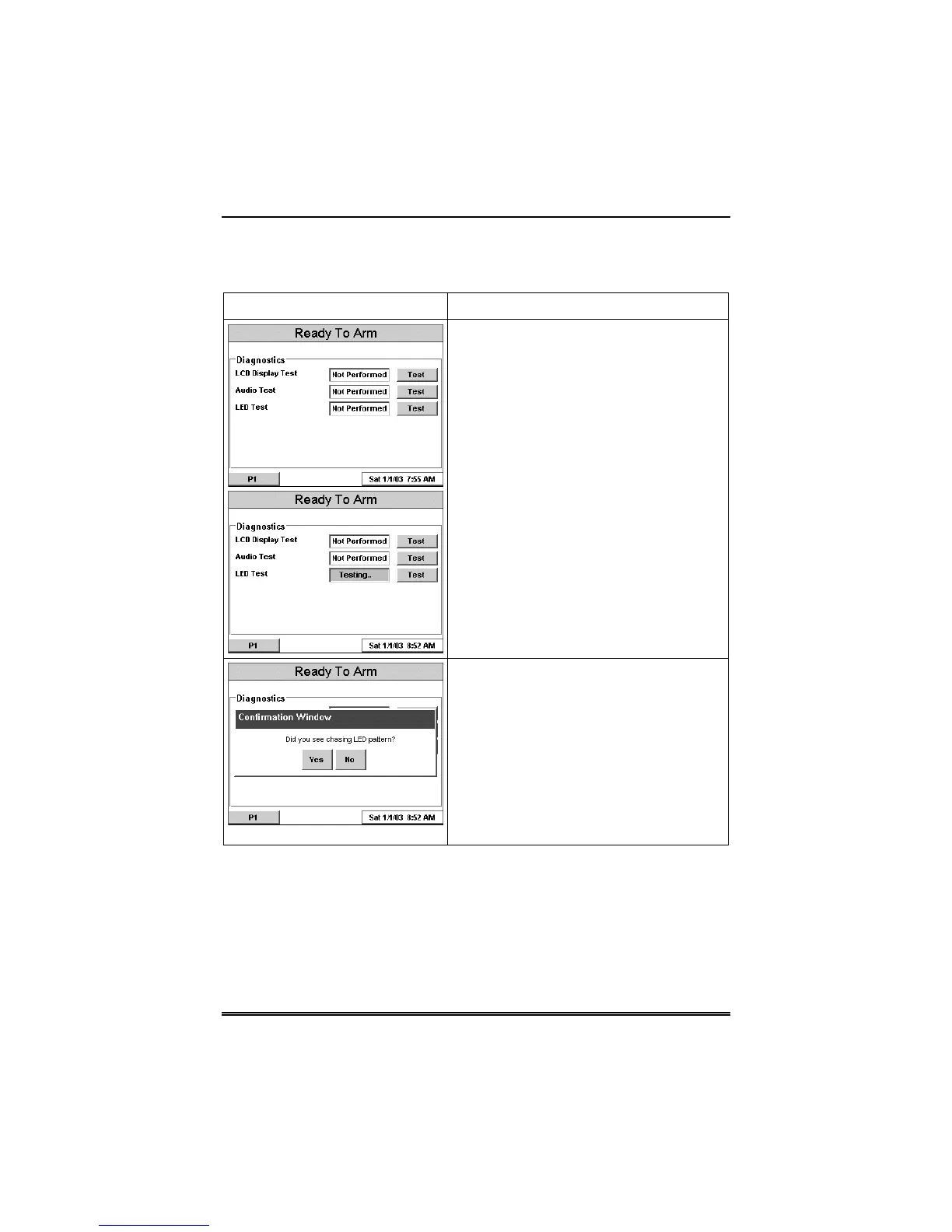

SCREEN ACTION

1. When you press the

Test

button

associated with the LED Test, "Testing.."

is displayed in the test status column on

the "Diagnostics" screen while the 3 LEDs

light sequentially, top to bottom (red,

green, amber), 5 times. At the conclusion

of the test, a pop-up "Confirmation

Window" is displayed in the center of the

"Diagnostics" screen.

2. Within the Confirmation Window the

question "Did you see chasing LED

pattern?" is displayed.

If you press the

Yes

button, "Passed" is

displayed in the test status column on the

"Diagnostics" screen.

If you press the

button, "Failed" is

displayed in the test status column on the

"Diagnostics" screen.
