NetVanta 4660/5660 Series Option Modules
617004660F1-34A Copyright © 2014 ADTRAN, Inc. 25
NetVanta Carrier Ethernet Quad SHDSL EFM Module, Annex B (P/N 17406368F3)
The NetVanta Carrier Ethernet Quad SHDSL EFM Module, Annex B (shown in Figure 3) provides a
WAN-SHDSL EFM interface. See Table A-5 on page 37 for the Quad SHDSL EFM connector pinouts.

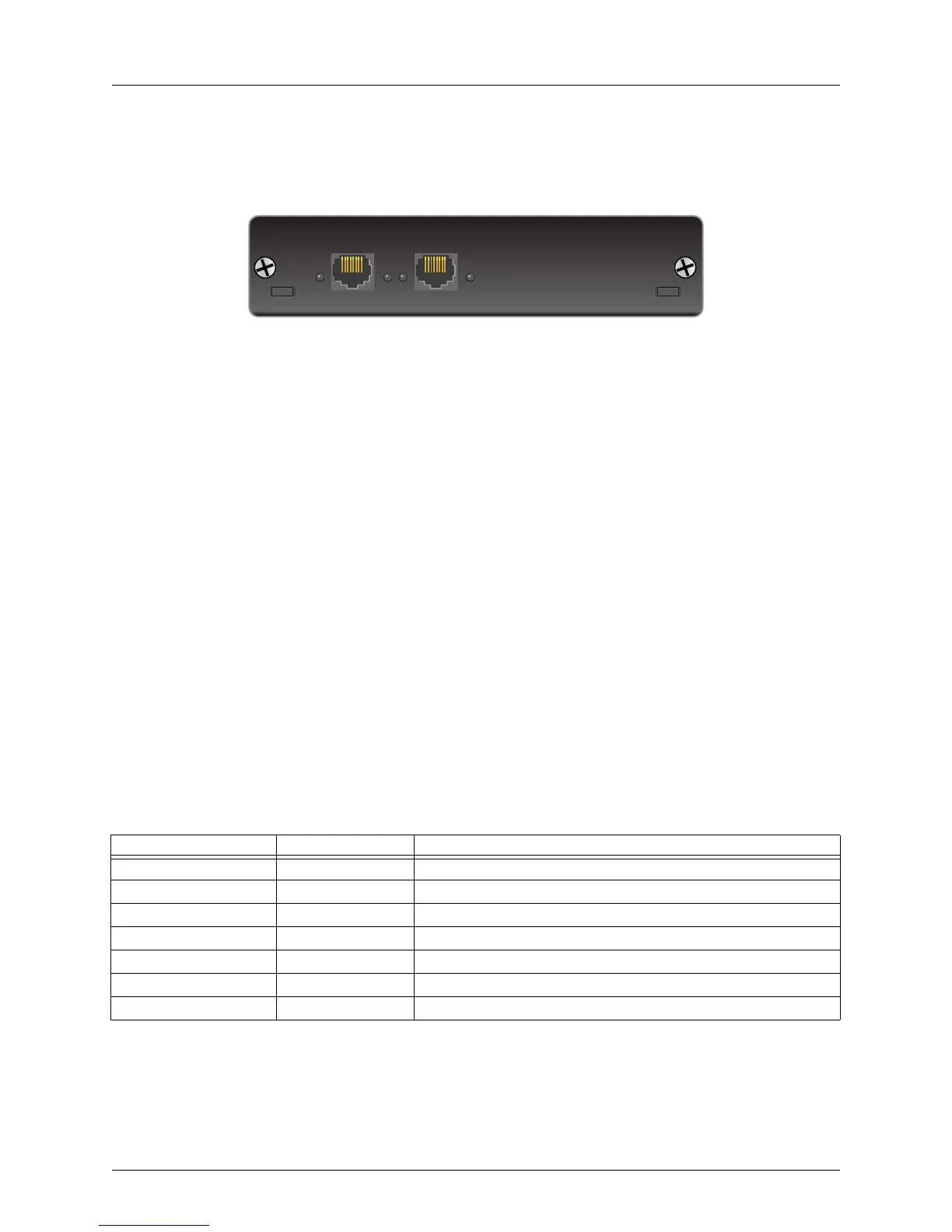

Figure 3. NetVanta Carrier Ethernet Quad SHDSL EFM Module, Annex B
Table 3. NetVanta Carrier Ethernet Quad SHDSL EFM Module, Annex B LED Behaviors
LED Color Indication
SHDSL 1 through 4
Off SHDSL loop is administratively shut down.
Green (flashing) SHDSL loop is training.
Green (solid) SHDSL loop is trained and EFM group is established.
Amber (flashing) SHDSL loop is trained but EFM group is not established.
Amber (solid) SHDSL loop is in test.
Red (flashing) SHDSL loop is in handshake process.
Red (solid) SHDSL loop connection failure.
4
312
QUAD SHDSL EFM ANNEX B
Features and Specifications
Operating Mode
• Line termination (CO)
• Network termination (CPE)
SHDSL Interface
• Four 2-wire eSHDSL loops
• Supported Standards: ITU-T G.991.2
Annex B
• IEEE 802.3ah EFM bonding
• MEF compliant
Clock Source
• CPE Operating Mode: Network
• CO Operating Mode: Internal
Compliance
• EMC - see Electromagnetic
Compatibility (EMC) Table on page 6.
• UL/CUL 60950-1
•AS/ACIF S043
• IEC 60950-1, Second Edition
• EN 60950-1, Second Edition
• AS/NZS 60950.1
• RoHS compliant
Environmental
• Operating Temperature: -25°C to 70°C
(-13°F to 158°F)
• Storage Temperature: -40°C to 85°C
(-40°F to 185°F)
• Relative Humidity: Up to 95 percent,
noncondensing
Physical
• Dimensions: 6.75-inch W x 6.59-inch D
