NetVanta 4660/5660 Series Option Modules
617004660F1-34A Copyright © 2014 ADTRAN, Inc. 29
NetVanta Carrier Ethernet Quad VDSL2 EFM Module, Annex B (P/N 17406369F3)
The NetVanta Carrier Ethernet Quad VDSL2 EFM Module, Annex B (shown in Figure 7) provides a
WAN-VDSL interface. See Table A-8 on page 38 for the Quad VDSL2 connector pinouts.

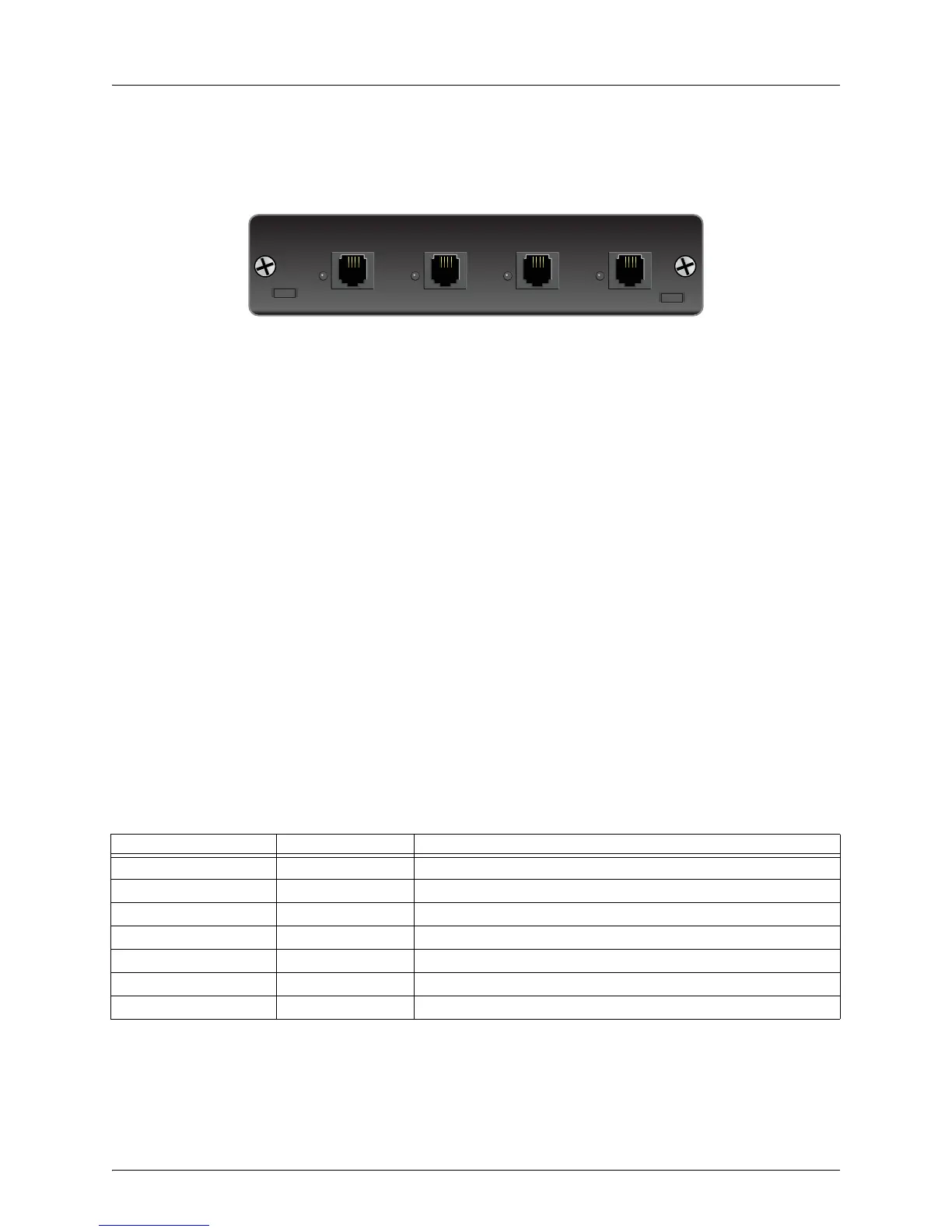

Figure 7. NetVanta Carrier Ethernet Quad VDSL2 EFM Module, Annex B
Table 7. NetVanta Carrier Ethernet Quad VDSL2 EFM Module, Annex B LED Behaviors
LED Color Indication
SHDSL 1 through 4
Off VDSL loop is administratively shut down.
Green (flashing) VDSL loop is training.
Green (solid) VDSL loop is trained and EFM group is established.
Amber (flashing) VDSL loop is trained but EFM group is not established.
Amber (solid) VDSL loop is in test.
Red (flashing) VDSL loop is in handshake process.
Red (solid) VDSL loop connection failure.
4
312
QUAD VDSL ANNEX B
Features and Specifications
Operating Mode
Line termination (CO)
Network termination (CPE)
SHDSL Interface
Four 2-wire VDSL loops
Supported Standards: ITU-T G.991.2
Annex B
IEEE 802.3ah EFM bonding
MEF compliant
Clock Source
CPE Operating Mode: Network
CO Operating Mode: Internal
Compliance
EMC - see Electromagnetic
Compatibility (EMC) Table on page 6.
UL/CUL 60950-1
•AS/ACIF S043
IEC 60950-1, Second Edition
EN 60950-1, Second Edition
AS/NZS 60950.1
RoHS compliant
Environmental
Operating Temperature: -25°C to 70°C
(-13°F to 158°F)
Storage Temperature: -40°C to 85°C
(-40°F to 185°F)
Relative Humidity: Up to 95 percent,
noncondensing
Physical
Dimensions: 6.75-inch W x 6.59-inch D
