Option Modules NetVanta 4660/5660 Series
28 Copyright © 2014 ADTRAN, Inc. 617004660F1-34A
NetVanta Carrier Ethernet Quad VDSL2 EFM Module, Annex A (P/N 17406369F1)

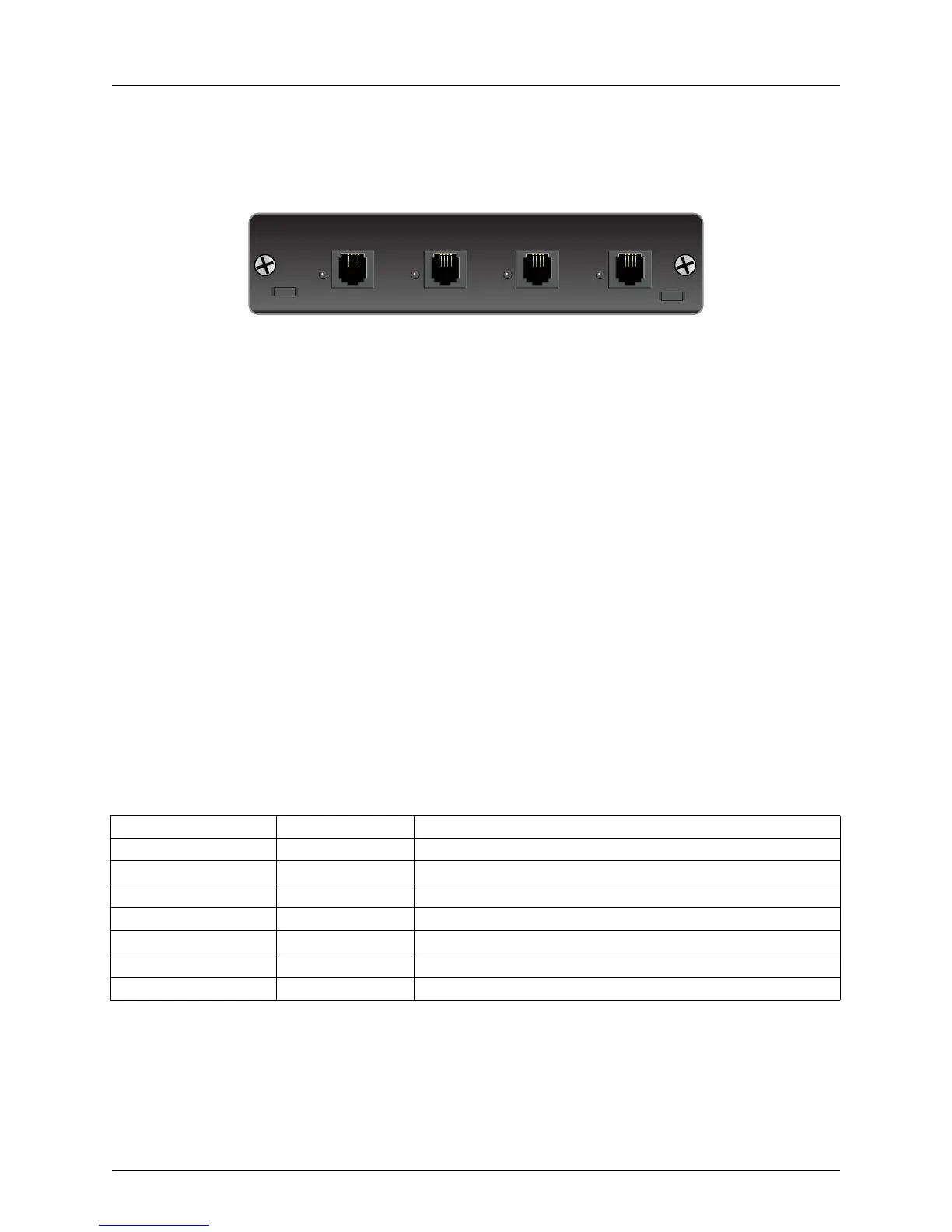

The NetVanta Carrier Ethernet Quad VDSL2 EFM Module, Annex A (shown in Figure 6) provides a
WAN-VDSL interface. See Table A-8 on page 38 for the Quad VDSL2 connector pinouts.
Figure 6. NetVanta Carrier Ethernet Quad VDSL2 EFM Module, Annex A
Table 6. NetVanta Carrier Ethernet Quad VDSL EFM Module, Annex A LED Behaviors
LED Color Indication
SHDSL 1 through 4
Off VDSL loop is administratively shut down.
Green (flashing) VDSL loop is training.
Green (solid) VDSL loop is trained and EFM group is established.
Amber (flashing) VDSL loop is trained but EFM group is not established.
Amber (solid) VDSL loop is in test.
Red (flashing) VDSL loop is in handshake process.
Red (solid) VDSL loop connection failure.
Features and Specifications
Operating Mode
• Line termination (CO)
• Network termination (CPE)
SHDSL Interface
• Four 2-wire VDSL loops
• Supported Standards: ITU-T G.991.2
Annex A
• IEEE 802.3ah EFM bonding
• MEF compliant
Clock Source
• CPE Operating Mode: Network
• CO Operating Mode: Internal
Compliance
• EMC - see Electromagnetic
Compatibility (EMC) Table on page 6.
• UL/CUL 60950-1
• ACTA/FCC Part 68
• IC CS-03
• RoHS compliant
Environmental
• Operating Temperature: -25°C to 70°C
(-13°F to 158°F)
• Storage Temperature: -40°C to 85°C
(-40°F to 185°F)
• Relative Humidity: Up to 95 percent,
noncondensing
Physical
• Dimensions: 6.75-inch W x 6.59-inch D
To Next Page
