Option Modules NetVanta 4660/5660 Series
26 Copyright © 2014 ADTRAN, Inc. 617004660F1-34A
NetVanta Carrier Ethernet Octal SHDSL EFM Module, Annex A (P/N 17806368F1)
The NetVanta Carrier Ethernet Octal SHDSL EFM Module, Annex A (shown in Figure 4) provides a
WAN-SHDSL EFM interface. See Table A-6 on page 37 and Table A-7 on page 37 for the Octal SHDSL EFM
connector pinouts.

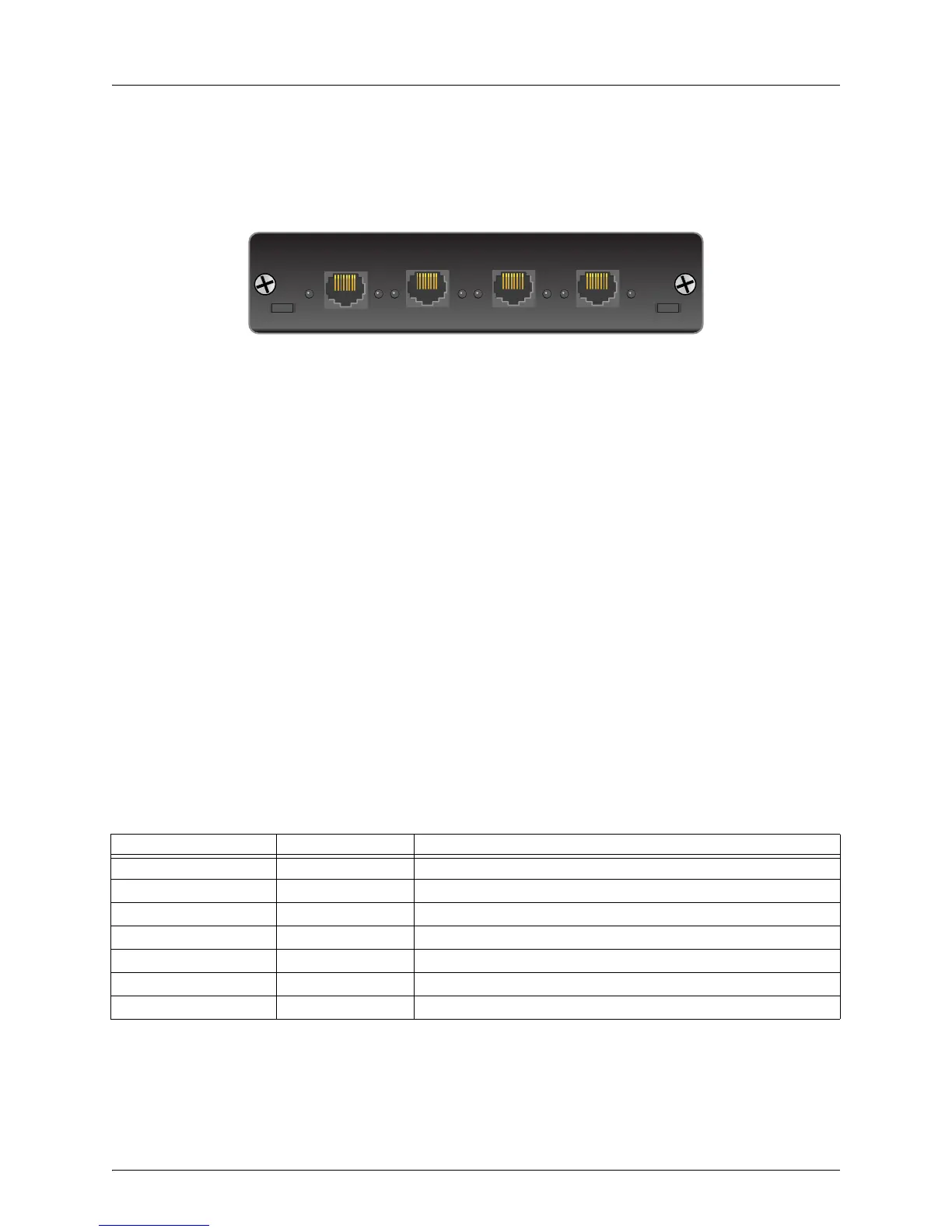

Figure 4. NetVanta Octal SHDSL EFM Network Module, Annex A
Table 4. NetVanta Octal SHDSL EFM Network Module, Annex A LED Behaviors
LED Color Indication
SHDSL 1 through 8
Off SHDSL loop is administratively shut down.
Green (flashing) SHDSL loop is training.
Green (solid) SHDSL loop is trained and EFM group is established.
Amber (flashing) SHDSL loop is trained but EFM group is not established.
Amber (solid) SHDSL loop is in test.
Red (flashing) SHDSL loop is in handshake process.
Red (solid) SHDSL loop connection failure.
4
312
OCTAL SHDSL EFM ANNEX A
8
756
Features and Specifications
Operating Mode
• Line termination (CO)
• Network termination (CPE)
SHDSL Interface
• Eight 2-wire eSHDSL loops
• Supported Standards: ITU-T G.991.2
Annex A
• IEEE 802.3ah EFM bonding
• MEF compliant
Clock Source
• CPE Operating Mode: Network
• CO Operating Mode: Internal
Compliance
• EMC - see Electromagnetic
Compatibility (EMC) Table on page 6.
• UL/CUL 60950-1
• ACTA/FCC Part 68
• IC CS-03
• RoHS compliant
Environmental
• Operating Temperature: -25°C to 70°C
(-13°F to 158°F)
• Storage Temperature: -40°C to 85°C
(-40°F to 185°F)
• Relative Humidity: Up to 95 percent,
noncondensing
Physical
• Dimensions: 6.75-inch W x 6.59-inch D
To Next Page
