3.1.4 AX-PSU-6 LEDs
There are seven (7) onboard LEDs associated with the

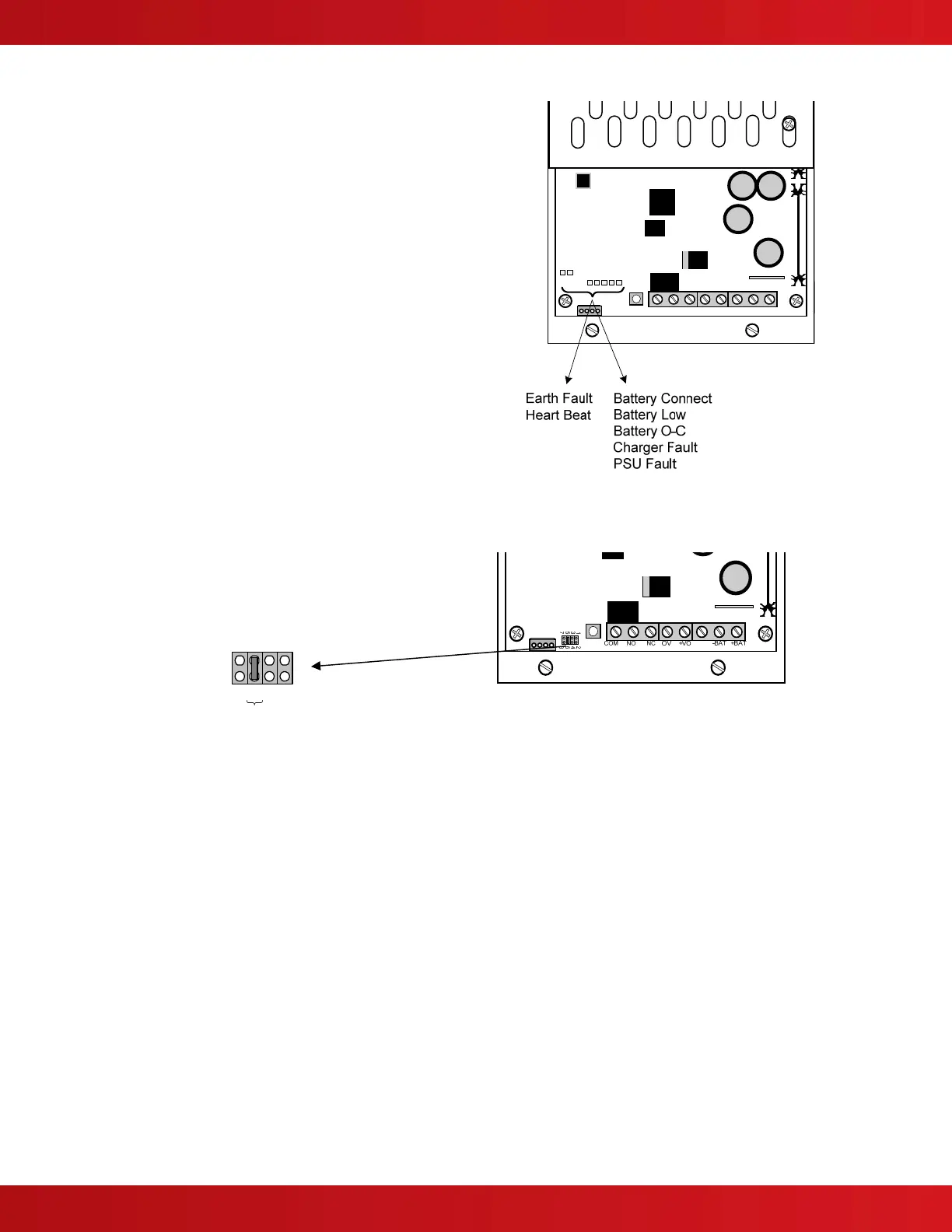

AX-PSU-6. Refer to the opposite diagram and list below
for LED descriptions and purpose.
1. Earth Fault: Illuminates on ground fault (within
10 seconds).
2. Heart Beat: Flashes to indicate proper
microprocessor operation.
3. Battery Connect (BAT CON): Illuminates on AC
failure when batteries are powering the supply.
4. Battery Low (BAT LOW): Illuminates when
batteries have a high internal resistance [battery
cell failure] (within 120 seconds).
5. Battery O/C (BAT O/C): Illuminates when
batteries are disconnected (within 40 seconds).
6. Charger Fault (CHGR FLT): Illuminates on
charger output failure (within 90 seconds).
7. Mains Fault (MAINS FLT): Flashes on AC
supply failure (within 20 seconds).
3.1.5 AX-PSU-6 Jumper
Jumper 5-6 must always be installed to allow for proper
battery charging. Battery charging can support up to 45
Ah batteries maximum.
Note: On the AV-VB, jumper switches 1-2 (power supply Trouble LED drive) and 3-4 (power supply ON LED
drive) are utilized as the LED status drivers for the LED indicators located on the front of the AV-VB
enclosure
2
4
6
8
1
3
5
7
DO Not
Remove
Jum
e
