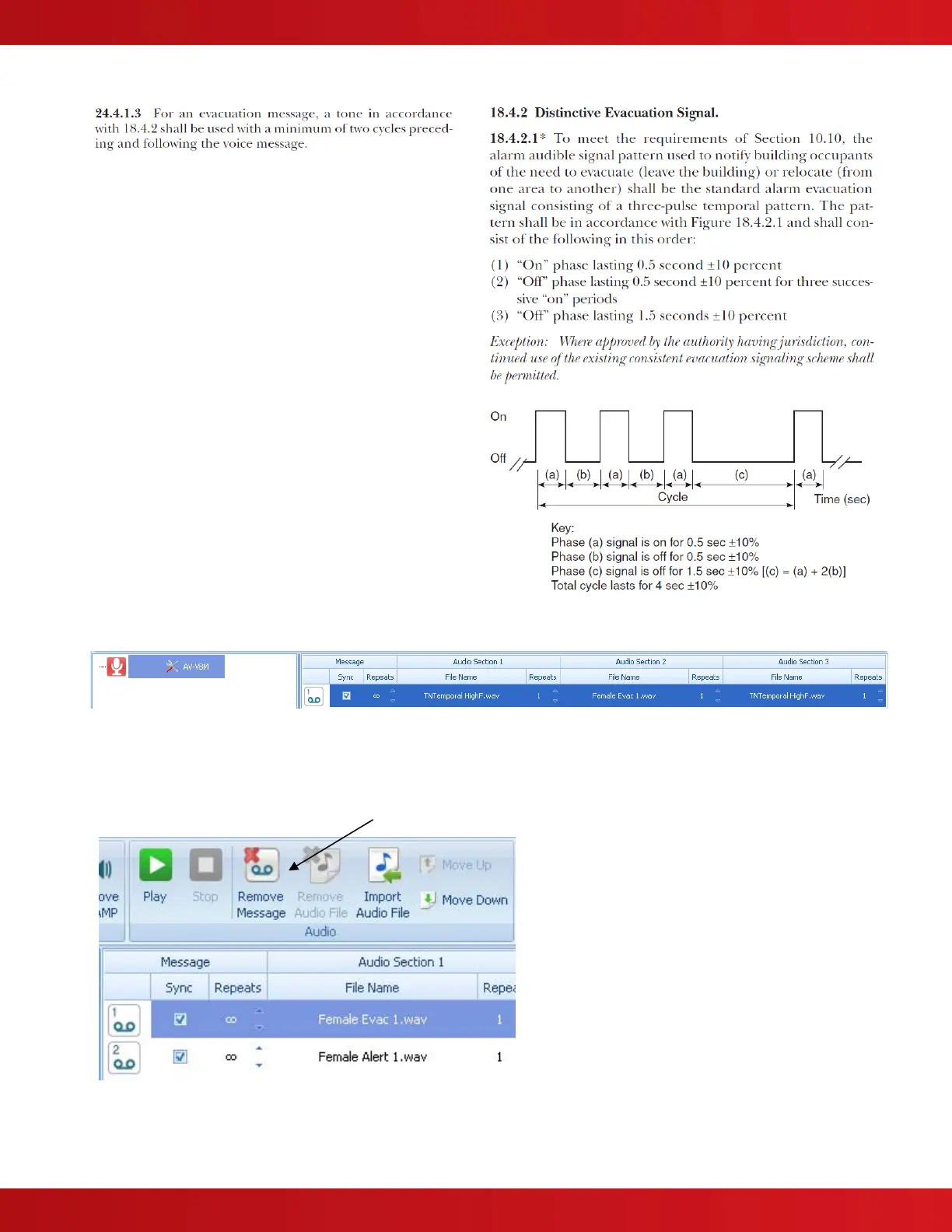

6.2.5.1 NPFA 72 (2013 Edition) Message Requirement
6.2.5.1.1 Example of an NFPA 72 Programmed Message
Note: The TNTemporal HighF.wav audio file message plays two rounds, so only 1 repeat is required.
6.2.6 Remove Audio Messages
To remove an audio message, select the required
message and click on the “Remove Message”
icon button.
If the first message is removed the remaining
message will be renumbered as the first message.
