Note: For AV-VBM and AV-VB enclosures manufactured prior to August 2014 an AV-RMI-RP retrofit plate
will be required for mounting the AV-RMI remote microphone interface module.
OUT- OUT + IN- IN+
AMP1
OUT- OUT+ IN- IN+
AMP2
+24V GND +24V GND
POWER
B A B A
RS485
AMP-1
A+ A- B- B+
AMP-2
A+ A- B- B+
INPUTS
IN1 GND IN2 GND IN3 GND
TROUBLE
COM NO NC
AV-RMI Module
Mounting Location

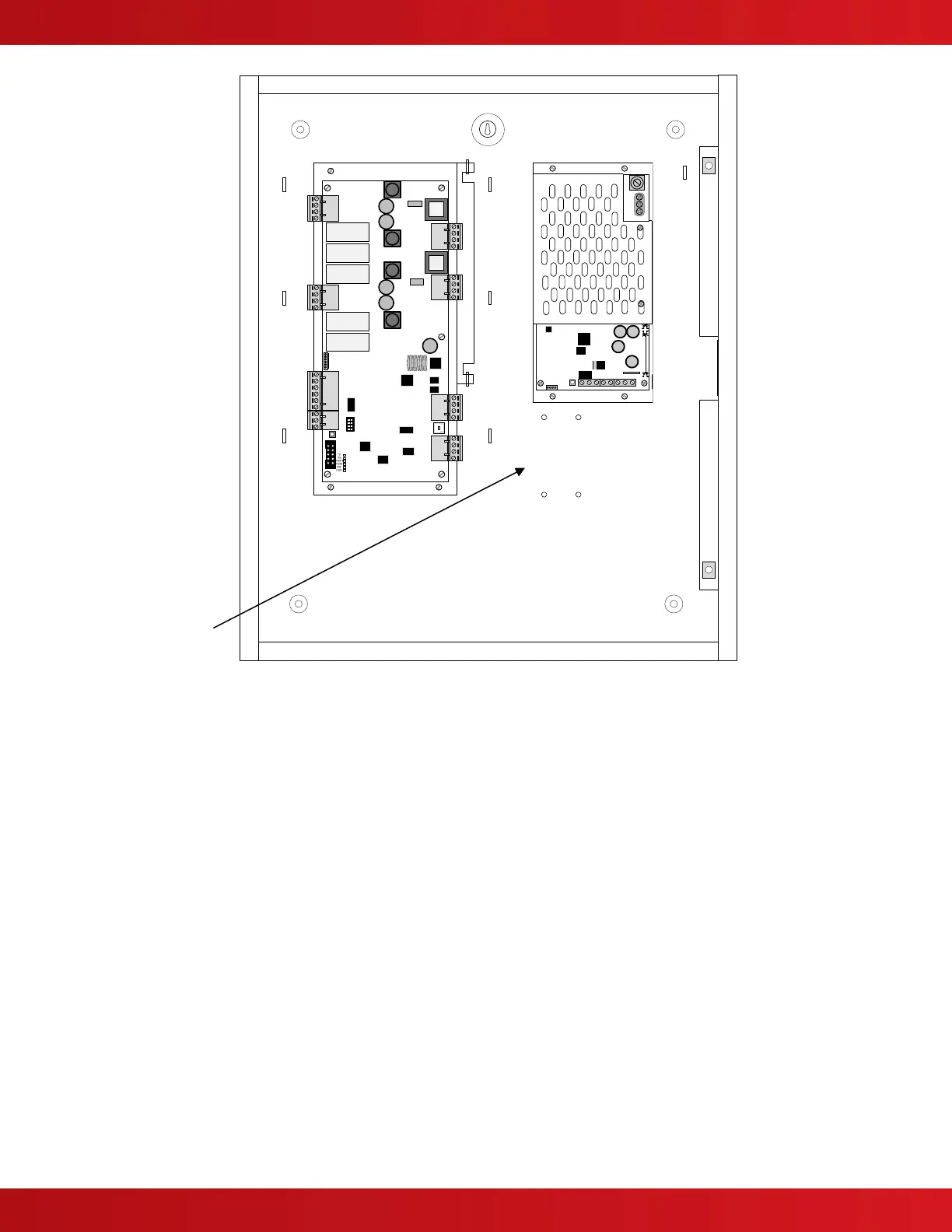

Figure 16 – AV-RMI Mounting
