Advantage Maximum MG Series - Page 12

Maximum Series Portable Chiller : Air & Water-Cooled : MG Series Instrument
update 08/02/2021
Page: 12
ADVANTAGE ENGINEERING, INC.
525 East Stop 18 Road Greenwood, Indiana 46142
317-887-0729 Fax: 317-881-1277
Service Department Fax: 317-885-8683
Email: service@AdvantageEngineering.com

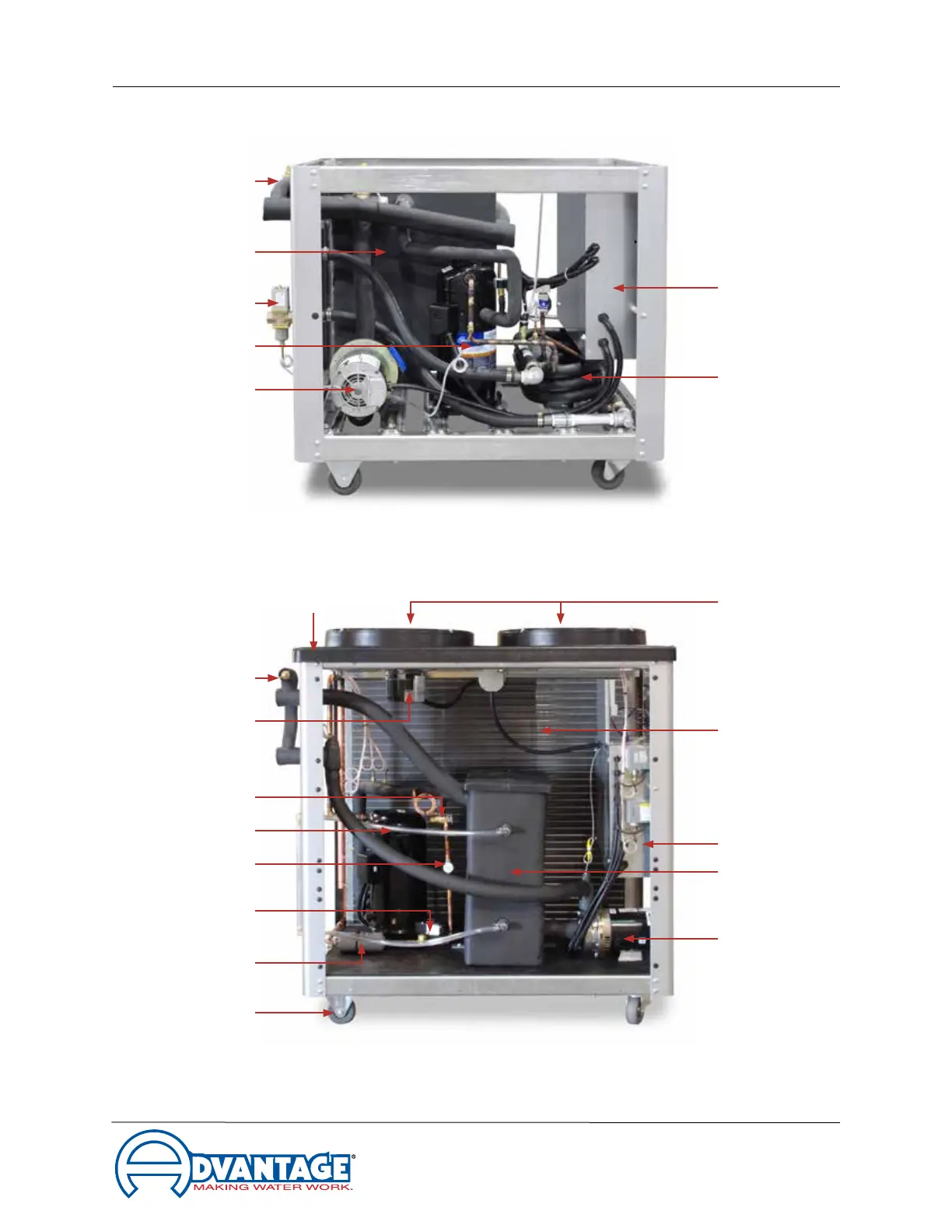

Air-Cooled Model 10 ton unit shown.
ABS fascia and enclosure panels
removed for photo.
Water-Cooled Model 10 ton unit shown.
ABS fascia, top and enclosure panels
removed for photo.
Caster
Compressor
Liquid Line Solenoid
Filter Drier
Refrigerant Site Glass
Fan Motor
Protective Fan Shroud
Water Regulator
Valve
Coolant Pump
Water-Cooled
Condenser
Electrical Cabinet
Compressor
Insulated
Reservoir
Air Discharge
Coolant Pump
Expansion Valve
Insulated Reservoir Tank
Electrical Cabinet
Air-Cooled Condenser
Optional Low Water
Flow Bypass Valve
Dependingonunitconguration
this valve may be mounted
internally or externally.
Optional Low Water
Flow Bypass Valve
Dependingonunitconguration
this valve may be mounted
internally or externally.
