3.4 Instrument : Main menu
A. The Main Menu offers the ability to set and change values in the following areas:
Setpoints, Utilities, Network, Flow, Options, Machine
B. The Main Menu is accessible from the Standby screen by pressing the Select button.
C. The Main Menu is also accessible from any Operating screen by pressing the Select
button. In the example below, while on the Cooling screen, pressing the Select button will
advance to the Main Menu.
3.5 Instrument : Setpoints menu
A. Under the Setpoints menu item, the values for the Process Setpoint, Hi Deviation, Low
DeviationandLowFlowcanbesetorchanged.Digitalowratedisplayisanoptionand
may not be included on your machine.

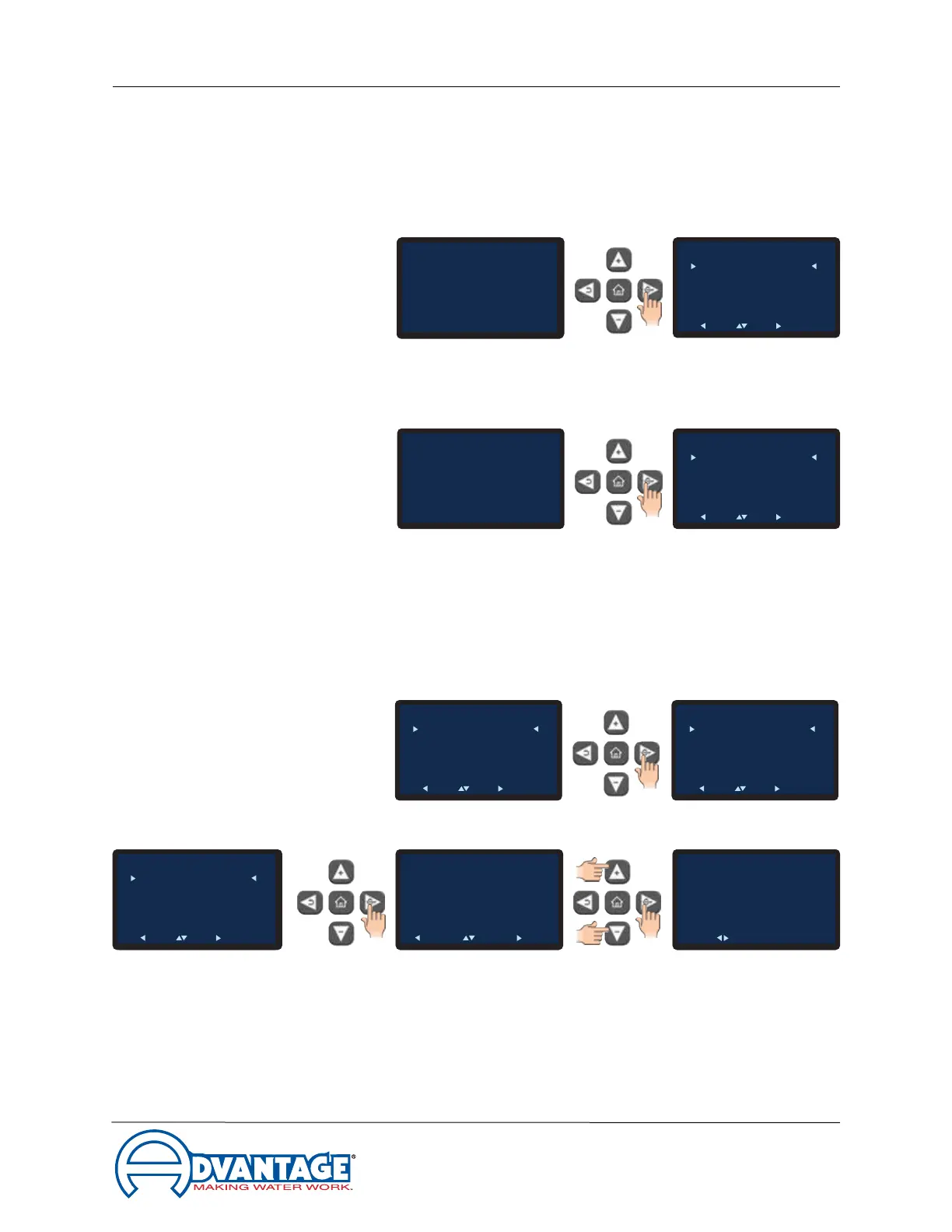

B. Process Setpoint. Use the Up or Down buttons to change the process setpoint.
1. The Setpoint range is from 48°F to 90°F or 9° - 32°C.
2. Once acknowledged, the unit will control to the new setpoint temperature. Press
the Back button repeatedly to return to the Setpoints screen or press the home
button to return to the Home screen.
To Process
Setpoint : 50°F
Circulating
50°F
To Process
Setpoint : 50°F
Circulating
50°F
Main Menu
Setpoints
Utilities
Network
Flow
Options
Machine
Back Pick Go
Setpoints
Process Setpoint
Hi Deviation
Lo Deviation
Low Flow
Back Pick Go
To Process
Setpoint : 50°F
Circulating
50°F
To Process
Setpoint : 50°F
Circulating
50°F
Process Setpoint
Cancel Adjust OK
Setpoints
Process Setpoint
Hi Deviation
Lo Deviation
Low Flow
Back Pick Go
50°F
To Process
Setpoint : 50°F
Circulating
50°F
Change Setting
Process Setpoint
Success
Acknowledge
To Process
Setpoint : 50°F
Circulating
50°F
To Process
Setpoint : 50°F
Circulating
50°F
Main Menu
Setpoints
Utilities
Network
Flow
Options
Machine
Back Pick Go
To Process
Setpoint : 50°F
Circulating
50°F
To Process
Setpoint : 50°F
Circulating
50°F
Main Menu
Setpoints
Utilities
Network
Flow
Options
Machine
Back Pick Go
To Process
Setpoint : 50°F
Circulating
50°F
SetpointStatus
Ready
50°F
Standby
