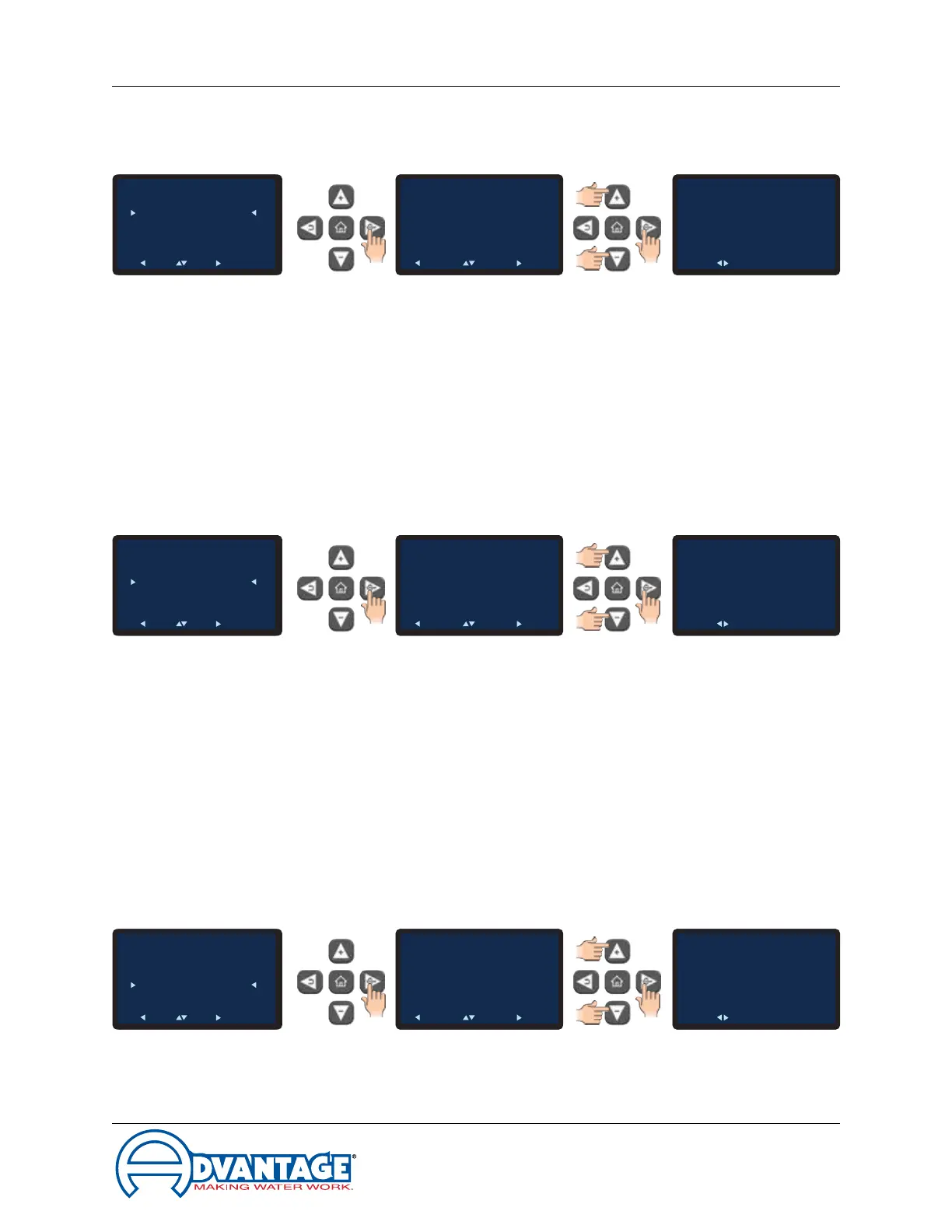

C. Hi Deviation. The High Deviation value programs the controller to sound the alarm if the
process temperature exceeds the set difference from setpoint. For example, Hi Deviation
= 10°F, Setpoint = 50°F. Hi deviation alarm will sound if the temperature reaches 60°F.
1. The factory default is 10°. The range for the Hi Deviation is from 0°F - 50°F.
2. With set points above 50°F, the maximum Hi Deviation setting should be no
more than 100°F minus set point. For example, with a 70°F set point the High
Deviation should not be set more than 30°F.
3. Once acknowledged, press the Back button repeatedly to return to the Setpoints
screen or press the home button to return to the Home screen.
D. Lo Deviation. The Lo Deviation value programs the controller to sound the alarm if the
process temperature exceeds the set difference from setpoint. For example, Lo Deviation
= 10°F, Setpoint = 50°F. Lo deviation alarm will sound if the temperature cools to 40°F.
1. The factory default is 10°. The range for the Lo Deviation is from 0°F - 50°F.
2. With set points above 50°F, the maximum Lo Deviation setting should be no more
than 100°F minus set point. For example, with a 70°F set point the Lo Deviation
should not be set more than 30°F.
3. Once acknowledged, press the Back button repeatedly to return to the Setpoints
screen or press the home button to return to the Home screen.
D. Low Flow (optional feature not included on all units). The Low Flow value programs
thecontrollertosoundanalarmiftheprocessowgoesbelowthelowowsetvalue.
Forexample,iftheowsetvalueis3GPMandiftheowgoesbelow3GPManalarm
conditionisindicated.Note:thelowowalarmfeatureisonlyavailablewiththepurchase
oftheoptionalowmeter.
1. The factory default is 0 GPM. The range for the Low Flow is from 0 to 100 GPM.
To Process
Setpoint : 50°F
Circulating
50°F
To Process
Setpoint : 50°F
Circulating
50°F
Low Flow
Cancel Adjust OK
Setpoints
Process Setpoint
Hi Deviation
Lo Deviation
Low Flow
Back Pick Go
3 GPM
To Process
Setpoint : 50°F
Circulating
50°F
Change Setting
Low Flow
Success
Acknowledge
To Process
Setpoint : 50°F
Circulating
50°F
To Process
Setpoint : 50°F
Circulating
50°F
Hi Deviation
Cancel Adjust OK
Setpoints
Process Setpoint
Hi Deviation
Lo Deviation
Low Flow
Back Pick Go
10°F
To Process
Setpoint : 50°F
Circulating
50°F
Change Setting
Hi Deviation
Success
Acknowledge
To Process
Setpoint : 50°F
Circulating
50°F
To Process
Setpoint : 50°F
Circulating
50°F
Lo Deviation
Cancel Adjust OK
Setpoints
Process Setpoint
Hi Deviation
Lo Deviation
Low Flow
Back Pick Go
10°F
To Process
Setpoint : 50°F
Circulating
50°F
Change Setting
Lo Deviation
Success
Acknowledge
