4.11 REPLACEMENT INSTRUMENT CONFIGURATION
A. Areplacementinstrumentmustbeconguredproperlytooperateasintended.Failureto
conguretheinstrumentcanresultinpoorunitperformanceandmaydamagethechiller.
B. ThelistbelowprovidesthecurrentavailablecongurationsettingsfortheMGinstrument.
Prior to operating the chiller after an instrument replacement, the instrument must be
conguredtothepropersettingpertheattachedlist.ContacttheAdvantageservice
departmentforassistanceindeterminingthepropercongurationforyourchiller.317-
887-0729

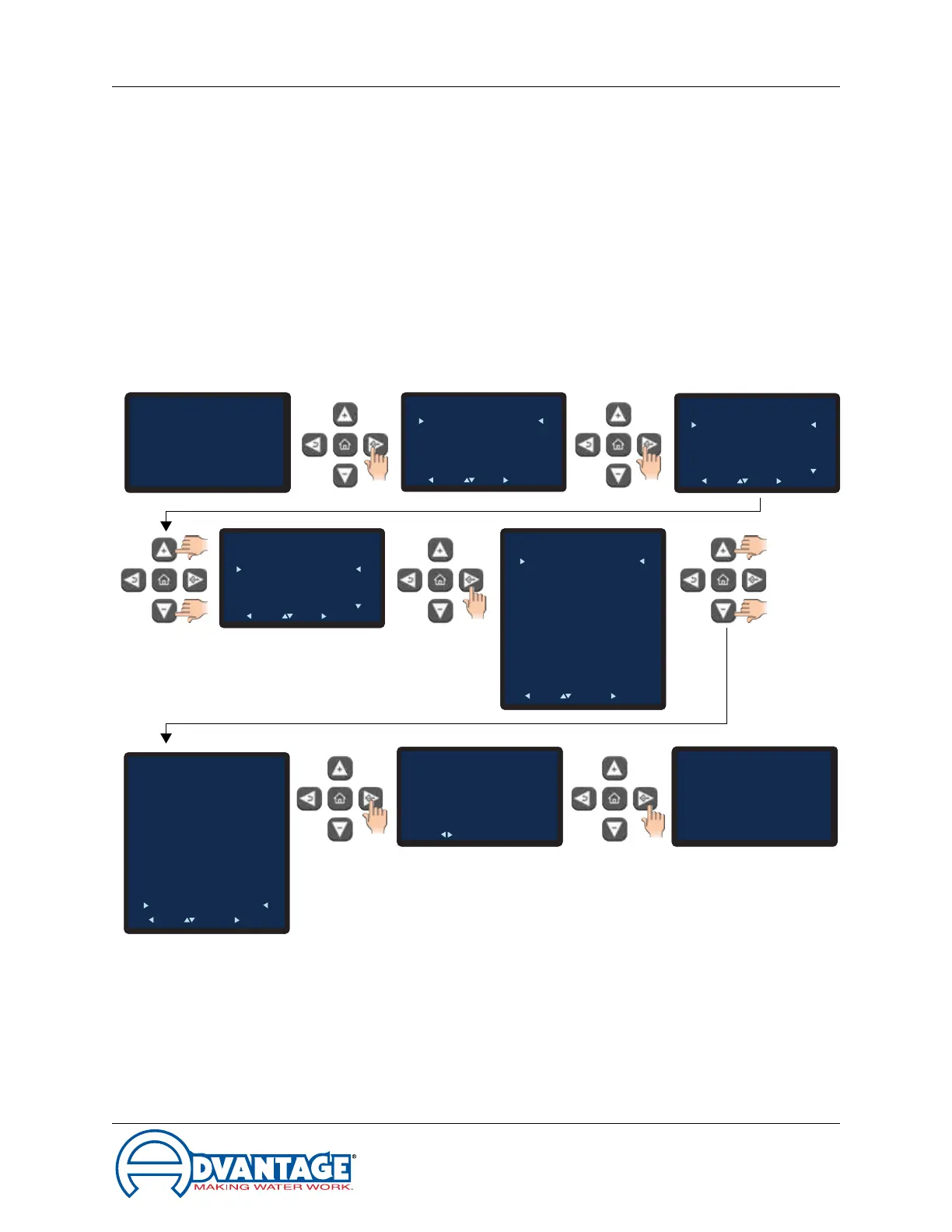

C. Tochecktheconguration,followthesesteps.
1. Prepare unit with power applied to unit but not operating.
2. OntheMGcontrolinstrument,press‘Machine’.
3. Press‘ChillerType’.Thecurrentcongurationishighlightedbyarrows.
4. Ifthecongurationiscorrect,nofurtheractionisrequired.
5. Ifthecongurationisnotcorrect:
Chiller Type
1C+1HG [CENT]
1C+1HG [PORT]
1C+1UL+1HG [CENT]
1C+2UL+1HG [CENT]
1C+1UL [CENT]
1C+2UL [CENT]
2C+1HG [CENT]
2C+1HC [PORT]
Screw+3L [CENT]
Screw+2L [CENT]
1 DIG [CENT]
1 DIG [PORT]
1 DIG+1C [CENT]
1 DIG+1C [PORT]
Back Adjust OK
Machine
Secondary Pump
Chiller Type
Cooling Source
Back Pick Go
Machine
Secondary Pump
Chiller Type
Cooling Source
Back Pick Go
FLow
Enable
Offset
Calibration
To Process
50°F
Change Setting
Chiller Type
Success
Acknowledge
Chiller Type
1C+1HG [CENT]
1C+1HG [PORT]
1C+1UL+1HG [CENT]
1C+2UL+1HG [CENT]
1C+1UL [CENT]
1C+2UL [CENT]
2C+1HG [CENT]
2C+1HC [PORT]
Screw+3L [CENT]
Screw+2L [CENT]
1 DIG [CENT]
1 DIG [PORT]
1 DIG+1C [CENT]
1 DIG+1C [PORT]
Back Adjust OK
To Process
Setpoint : 50°F
Circulating
50°F
Main Menu
Setpoints
Utilities
Network
Flow
Options
Machine
Back Pick Go
To Process
Setpoint : 50°F
Circulating
50°F
SetpointStatus
Ready
50°F
Standby
To Process
Setpoint : 50°F
Circulating
50°F
To Process
Setpoint : 50°F
Circulating
50°F
SetpointStatus
Ready
50°F
Standby
