3.10 INSTRUMENT : MACHINE MENU
A. The Machine Menu allows the units to set values for these items :
1. User Parameters Normally Adjusted in Field : Set Date, Set Time, Min
Setpoint, Hi Temp Shutdown, Units, From Process.
2. These Parameters are Factory set and should not be adjusted without
consulting the Factory : LP Cut Out, LP Cut In, LP Start Up Delay, LP Run
Delay, HP Cut Out, Secondary Pump, Chiller Type, Cooling Source.
B. Set Date

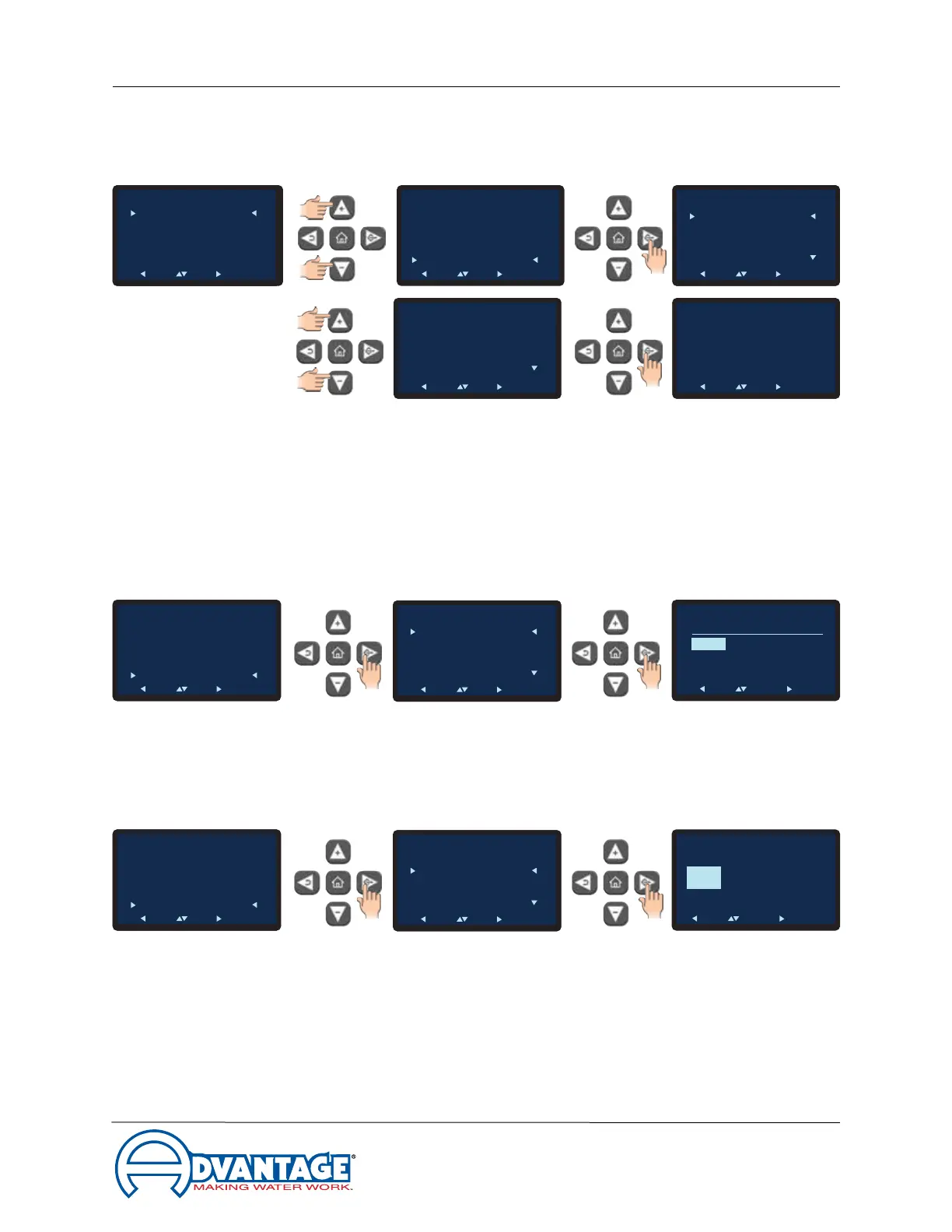

1. Set the date by selecting the Set Date option from the Machine Menu. Using the
Up and Down Arrow keys to select the month, day and year. Use the Select and
Back Buttons to advance between Month, Day and Year.
C. Set Time.
1. Set the time by selecting the Set Time option from the Machine Menu. Using the
Up and Down Arrow keys to select the hour, minute and seconds. Use the Select
and Back Buttons to advance between Hour, Minute and Seconds.
To Process
Setpoint
