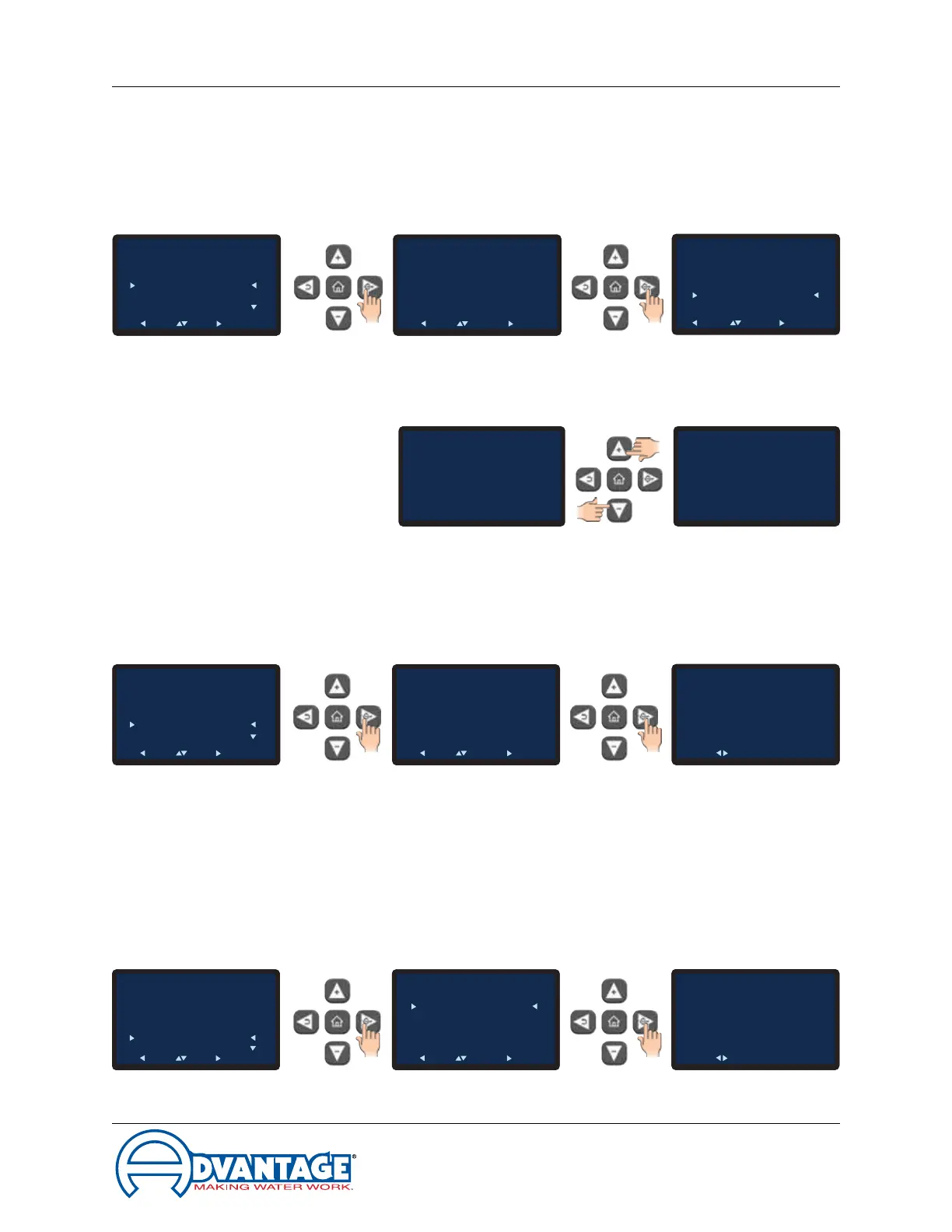

D. Minimum Setpoint. This parameter sets the lowest permissible setpoint temperature.
The factory default is 48°F. The range is from 0°F - 90°F.
1. For Minimum Setpoints below 48°F. A warning is displayed when a minimum
setpoint below 48°F is entered. The warning ensures the operator is aware the
an appropriate mixture of water/glycol is circulating to prevent freezing.
2. After a minimum setpoint below 48°F is selected, a caution display will appear
when reducing the operating setpoint below 48°F. The warning must be
acknowledged before the change is made by pressing the Select button.
3. For Minimum Setpoints 48°F and above. From the Machine Menu, advance
totheMinimumSetpointscreentoentertheminimumsetpoint.Conrmthe
selection with the Select Button.
E. Hi Temp Shutdown. This shuts down the unit if process temperature exceeds the
selectedvaluetopreventexcessivelywarmuidtemperature.
1. From the Machine Menu, select Hi Temp Shutdown via the Up or Down Arrow
keys.Adjustthetemperatureasdesired.Selectbuttontosaveandconrm
success.
2. The factory default value is 100°F. The range is from 65°F - 110°F.
F. Units. This screen controls how the temperature is displayed. The options are English
(°F) or Metric(°C). Also, when the optional ow meter is installed, the ow will display in
GPM if English is selected or LPM if Metric is selected.
