• From Process ... displayed in Fahrenheit and Celsius
• Process Probe Temperature ... displayed in Fahrenheit and Celsius (optional)
• MCU Temperature ... displayed in Fahrenheit and Celsius
• Head Pressure ... displayed in PSI and kPa
• Suction Pressure ... displayed in PSI and kPa
• Process Probe Pressure ... displayed in PSI and kPa
• Board Temperature ... displayed in Fahrenheit and Celsius
• Flow ... display in GPM and dl/min (optional)
• Flow Switch ... indicates on or off (optional)
• Water Make-Up Switch ... indicates on or off (optional)

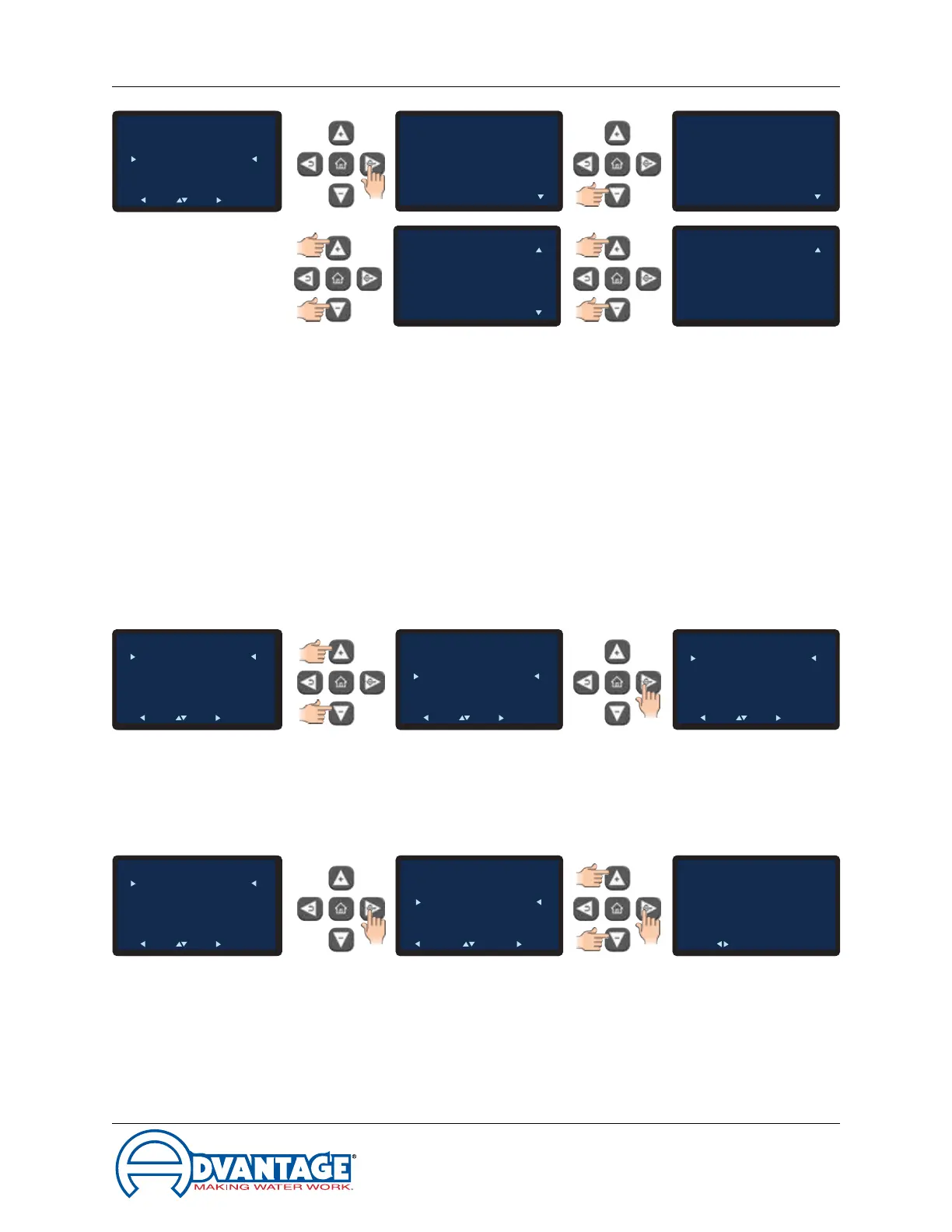

3.7 INSTRUMENT : NETWORK MENU
A. Items in the Network menu include Protocol, Address and Baud Rate
B. Protocol: This is the data format for communication between the unit and the host
computer. Available values are SPI CCP, Modbus RTU and CAMAC. SPI is the standard
Society of Plastics Industry, Inc. protocol. CAC is the CAMAC protocol used on older
Milacron machines. Modbus RTU is used in serial communication and is a common serial
communications protocol for industrial equipment.
1. Press the Select button to select Protocol.
2. Use the Up or Down arrow buttons to select the preferred protocol.
3. UsetheSelectbuttontosavetheselectionandconrmsuccess.
To Process
Setpoint : 50°F
Circulating
50°F
To Process
Setpoint : 50°F
Circulating
50°F
Protocol
Cancel Adjust OK
Network
Protocol
Baud Rate
Address
Back Pick Go
SPI CCP
Modbus RTU
CAMAC
To Process
Setpoint : 50°F
Circulating
50°F
Change Setting
Protocol
Success
Acknowledge
To Process
Setpoint : 50°F
Circulating
50°F
To Process
Setpoint : 50°F
Circulating
50°F
Main Menu
Setpoints
Utilities
Network
Flow
Options
Machine
Back Pick Go
To Process
Setpoint : 50°F
Circulating
50°F
Main Menu
Setpoints
Utilities
Network
Flow
Options
Machine
Back Pick Go
Network
Protocol
Baud Rate
Address
Back Pick Go
To Process
Setpoint : 50°F
Circulating
50°F
To Process
Setpoint : 50°F
Circulating
50°F
Sensor DisplaySetpoints
Process Setpoint
Hi Deviation
Lo Deviation
Low Flow
Back Pick Go
To Process
52°F ( 10.9°C)
From Process
54°F ( 12.1°C)
Process Probe Temp
-39°F (-39.8°C)
Utilities
Software Version
Display Test
Sensor Display
Back Pick Go
To Process
Setpoint : 50°F
Circulating
50°F
Sensor Display
MCU Temperature
105°F ( 40.4°C)
Head Pressure
330 PSI (2277 kPa)
Suction Pressure
119 PSI (822 kPa)
To Process
Setpoint : 50°F
Circulating
50°F
Sensor Display
Flow Switch
On (flow proven)
Water Make-Up Swith
Off
To Process
Setpoint : 50°F
Circulating
50°F
Sensor Display
Process Probe Pressure
44 PSI (301 kPa)
Board Temperature
94°F (34.3°C)
Flow
-1 GPM (-19dl/min)
