compressor. Air will not be drawn through the condenser coil if the panels are not
in place. Starting the unit without all the enclosure panels in place will result in a
high pressure refrigerant fault.
5. Units with a motor-driven propeller fan may not use duct work unless a booster
fan of equal volume rating has been installed in the duct.
6. For units with a remote condenser that will be installed outside, review
thespeciccondensermanualforplacementconsiderations.Ingeneraldonot
install the outdoor condenser under a roof or within 4 feet of a wall, fence or other
obstruction or within 8 feet of a second condenser. Any fence surrounding the
condenser must have 80% free area and must not be taller than the top of the
unit.
2.3 TO AND FROM PROCESS CONNECTIONS
A. Useappropriatelyratedhoseoruidpipingtoconnecttheprocess
piping going to your process to the “to process” connection on the chiller.
B. Useappropriatelyratedhoseoruidpipingtoconnecttheprocess
piping coming back from your process to the “from process”
connection on the chiller.
C. Install a high volume basket strainer in the From Process line with
isolationvalves.Abasketstrainerorbaglterwithameshscreen
of 20-40 microns will protect the unit. A “wye” type strainer is
not recommended because it does not have adequate debris
holding capacity.
D. Process water piping should be designed to avoid excessive elbows
and/orlengthsofpipeorhose.Ifusingexiblehoseavoidtighttwists
or curls and excessive lengths.

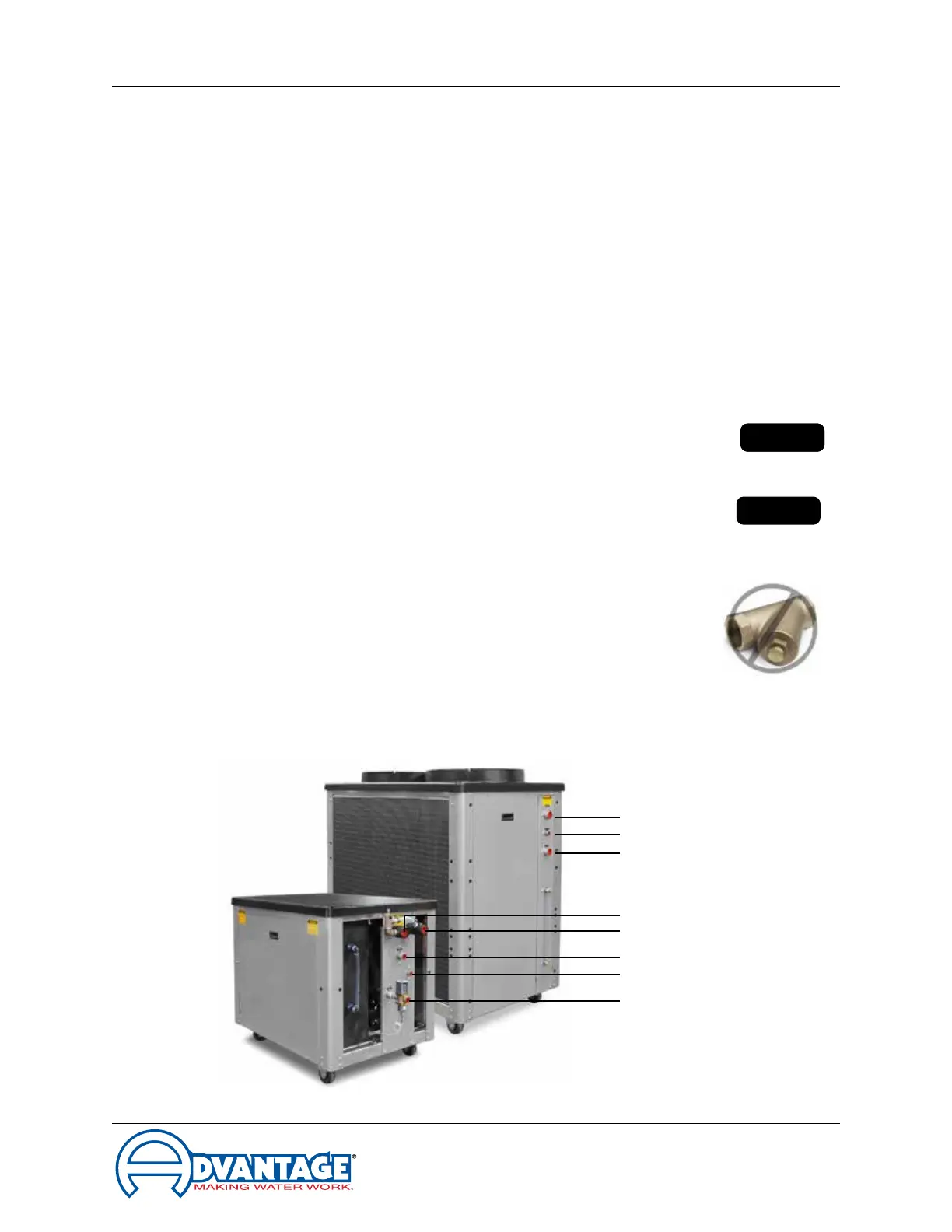

From Process
Make-Up Water Supply
To Process
To Process
From Process
Condenser Water Out
Make-Up Water Supply
Condenser Water In
From ProcessTo Process
This label marks the
To Process connection
From Process
This label marks the
From Process connection
Typical wye strainer -
Not recommended.
