B. STARTING THE UNIT
1. Whenthecorrectelectricalpowerissuppliedtotheunitandtheunitislledwith
water or water/glycol, it is possible to start the unit.

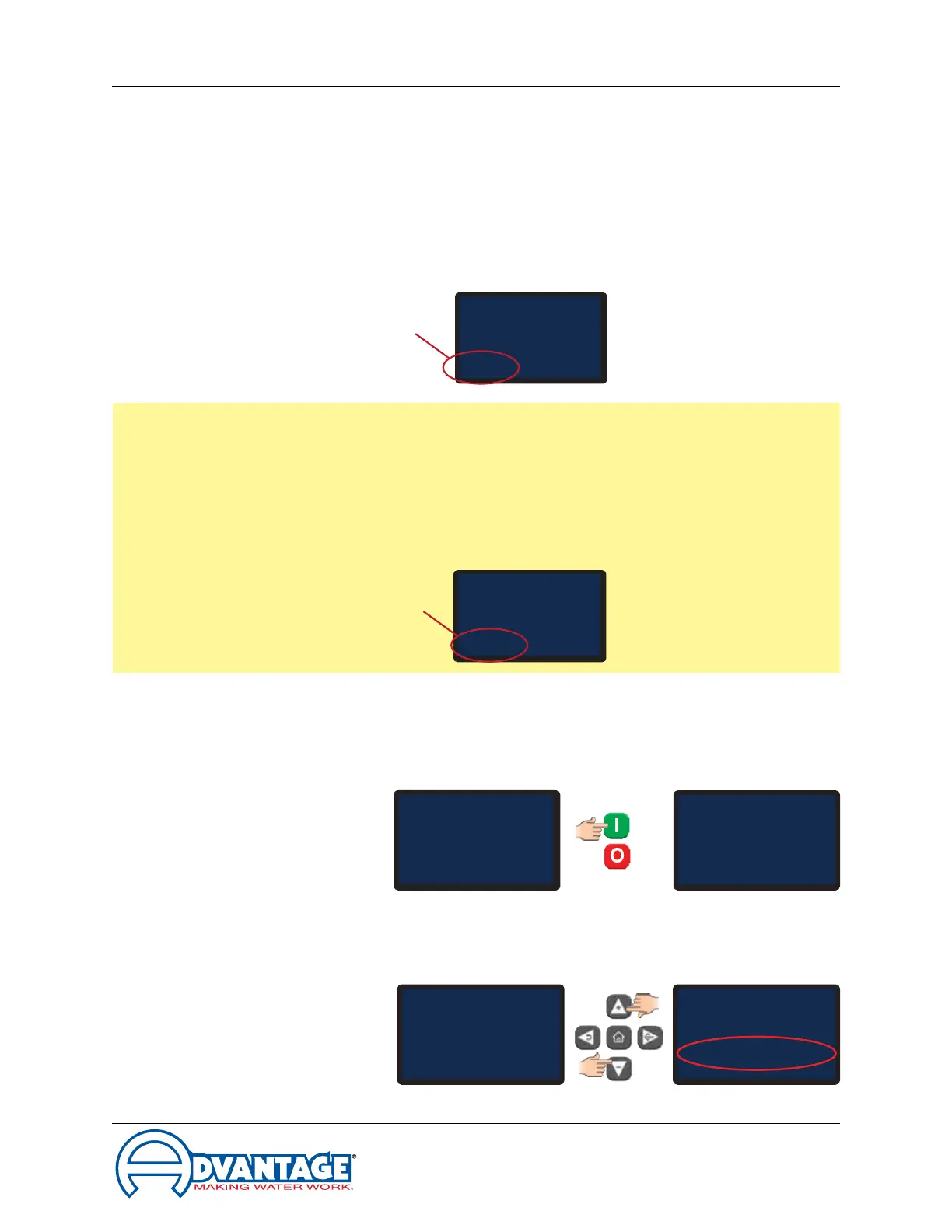

2. Upon powered up, the instrument displays the Standby Screen.
a. Status : Ready indicates the unit is ready to start and there are no faults
preventing operation.
b. Status : Not Ready.
After applying power a screen that reads “Not Ready” typically
indicates the presence of a sensor probe fault, pressure switch
fault or motor overload fault. See the troubleshooting and
maintenance portions of the manual for additional Information.
The fault must be corrected in order to continue operation of the
unit.
3. Press the Green "I" Button. "Circulating" will appear in the lower portion of the
displaywindow.Thepumpwillcirculateuidwithoutengagingtherefrigeration
systemforabout45seconds.Setpointandtheactualuidtemperaturewillbe
displayed as well.
4. To select setpoint temperature, press and hold the Up or Down Arrow keys until
the desired setpoint temperature is displayed in the display window. The default
range for the setpoint temperature is 48°F - 90°F or 9° - 32°C.
To Process
Setpoint : 50°F
Circulating
50°F
To Process
Setpoint : 50°F
Circulating
50°F
To Process
Setpoint : 48°F
50°F
Circulating
To Process
Setpoint : 50°F
Circulating
50°F
To Process
Setpoint : 50°F
Circulating
50°F
SetpointStatus
Ready
50°F
Standby
To Process
Setpoint : 50°F
Circulating
50°F
SetpointStatus
Not Ready
120°F
Standby
Status : Not Ready
To Process
Setpoint : 50°F
Circulating
50°F
SetpointStatus
Ready
120°F
Standby
Status : Ready
