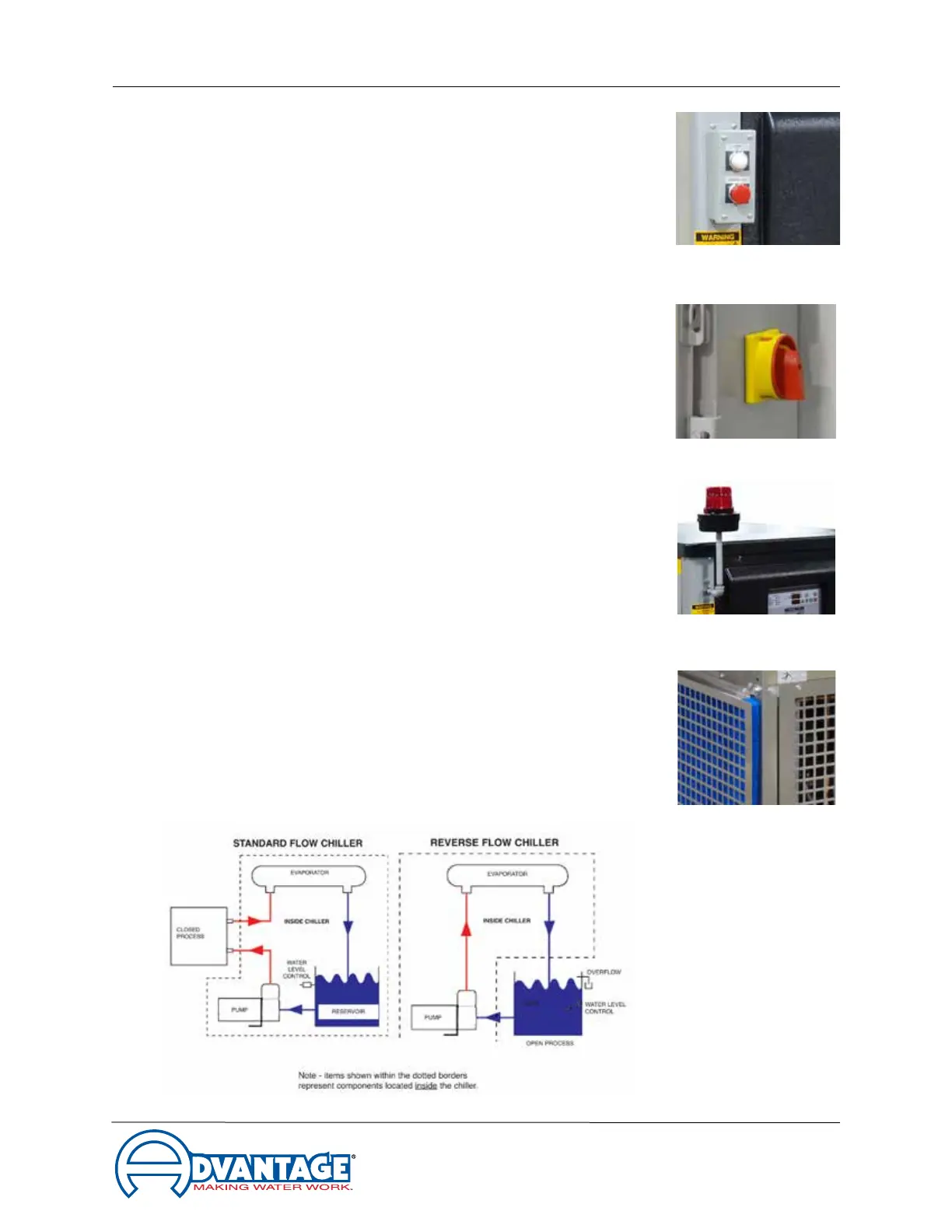

C. PROCESS LINE SHUT OFF VALVES: These
valves are full size ball valves installed on the “to”
and “from” process lines at the exit of the chiller.
Thesevalvescanbeusedtoadjusttheprocessow
rateandtoshutofftheowratetoisolatethechiller.
D. E-STOP BUTTON: The Emergency stop button is
a mushroom type button which will shut down all
chiller operations when engaged.
E. NON-FUSED OR FUSED DISCONNECT SWITCH:
On board disconnect switch provides a convenient
location for isolating all electric power to the chiller.
F. AUDIBLE AND OR VISUAL ALARM: Alarms
indicate out-of-spec operating conditions. There are
two types of alarms:
Audible Alarm:
A simple buzzer alarm emits a loud alarm.
Visual Alarm:
Emitsanaudiblesoundandashesabeacon.
G. CONDENSER SCREEN: Optional for air-cooled
modelsonly.Thecondenserscreenisalterforthe
air-cooled condenser to prevent air borne solids and
debris from clogging the condenser.
H. REVERSE FLOW PIPING: Reverseowchillers
aredesignedspecicallyforopencircuitprocesses.
Noticethattheowcircuitremainsbasicallythe
same, but the process acts as the chiller reservoir,
and gravity returns water to the pump suction.
System water make-up and level control is
accomplished externally at the process since the
chiller contains no reservoir.
Non-fused disconnect.
Typical Alarm Beacon.
Typical Condenser Screen.
Emergency stop button.
Shown with Power On light.
