I/O Modules
3-6 ADAM 4000 Series User's Manual
ADAM-4011D

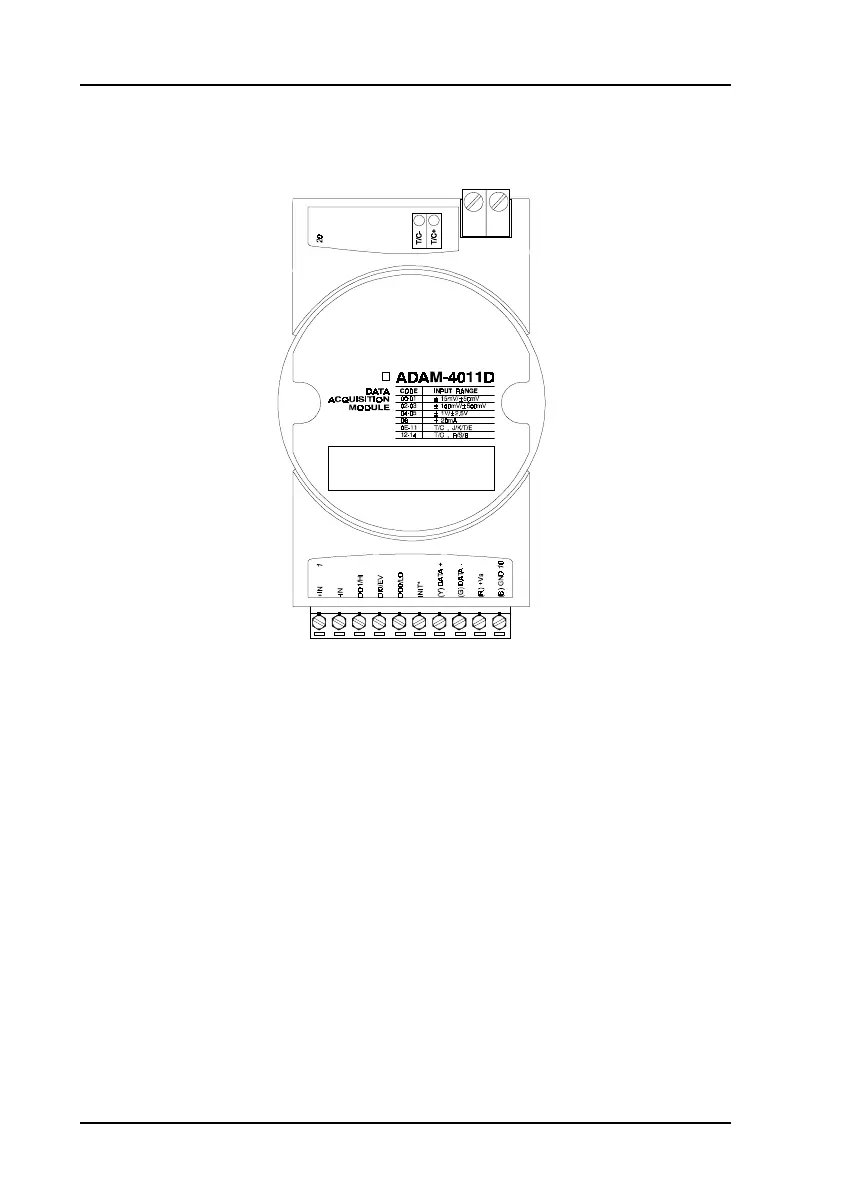

Figure 3-2
ADAM-4011D Thermocouple Input Module with LED Display
Accepts:
- J, K, T, E, R, S and B thermocouples
- millivolt inputs: ±15 mV, ±50 mV, ±100 mV and ±500 mV
- Volt inputs: ±1 V and ±2.5 V
- Current input: ±20 mA (Requires a 125 Ω resistor)
Two digital output channels and one digital input channel are provided.
Depending on the module’s configuration setting, it can forward the data to
the host computer in one of the following formats:
- engineering units (
o
C, mV, V, or mA)
- percent of full-scale range (FSR)
- twos complement hexadecimal
