27 ADAM-4000 Series User Manual
Chapter 3 I/O Modules
3.2.3 Application Wiring

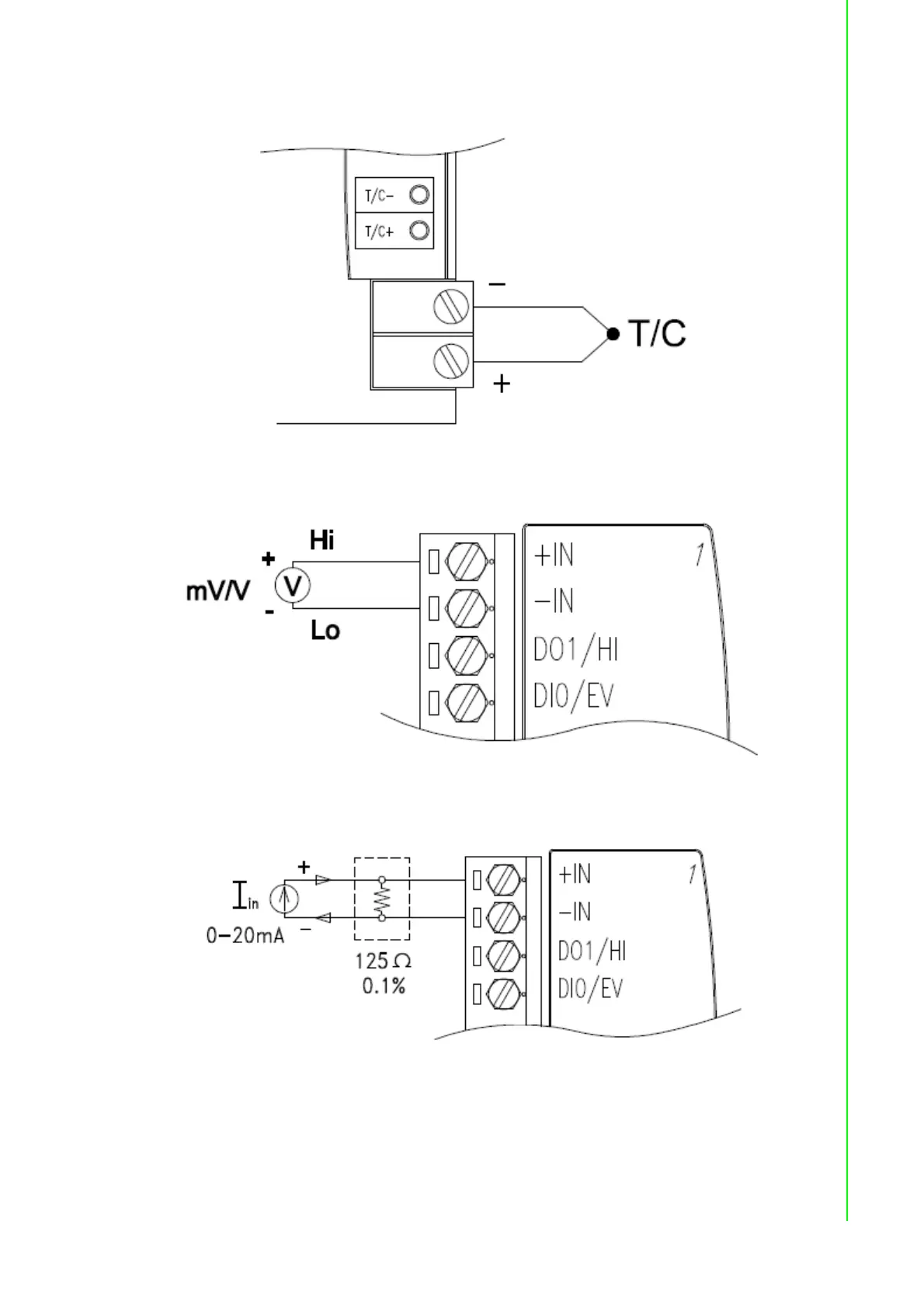

Figure 3.3 ADAM-4011/4011D Thermocouple Input Wiring Diagram
Figure 3.4 ADAM-4011/4011D Millivolt and Volt Input Wiring Diagram
Figure 3.5 ADAM-4011/4011D Process Current Input Wiring Diagram
