2-14 ADAM-5510/P31
Installation Guideline
2.9 Remote I/O Wiring
This section provides two ways of Remote I/O function wiring . You
should connect the host PC and ADAM modules on following ways.
Host Computer
RS-232
RS-485
Remote I/O (ADAM-4000)
ADAM
ADAM

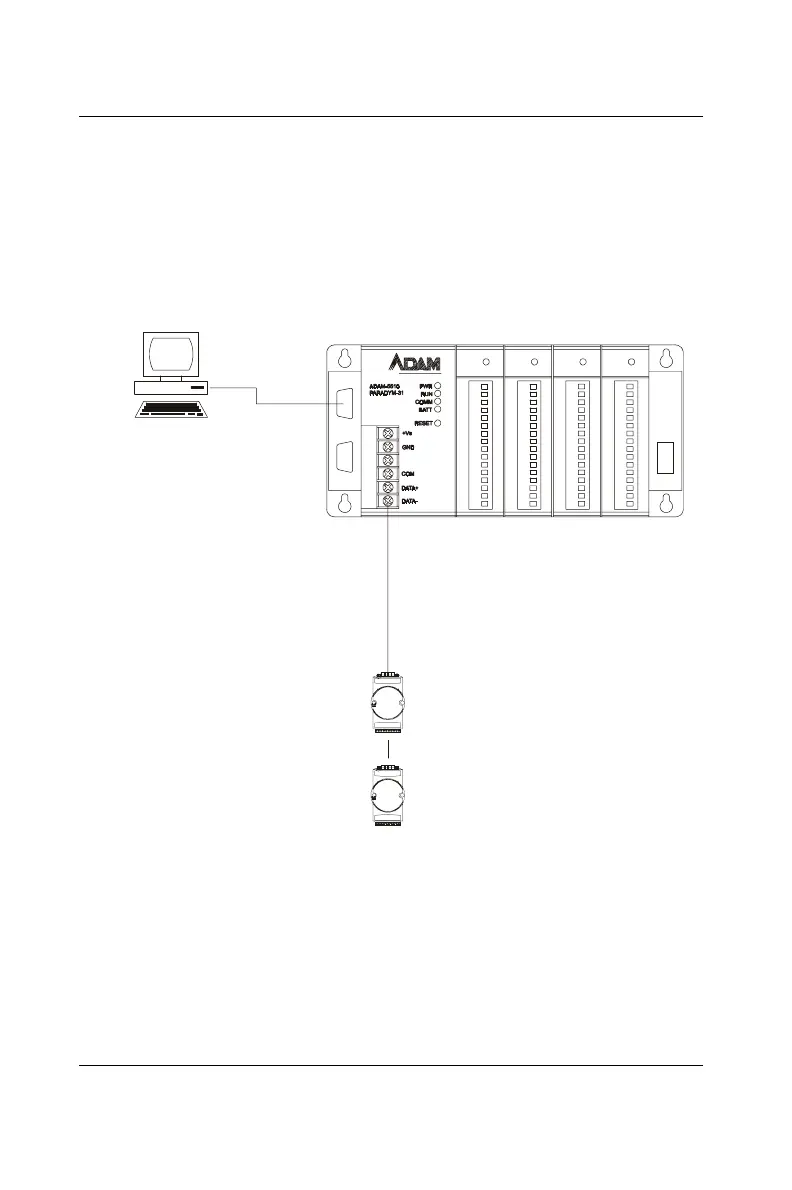

Figure 2-12: Remote I/O Wiring (RS-485)
