Remote I/O (ADAM-4000)
ADAM-4520
ADAM-4520
RS-485
RS-232
ADAM
ADAM ADAM ADAM

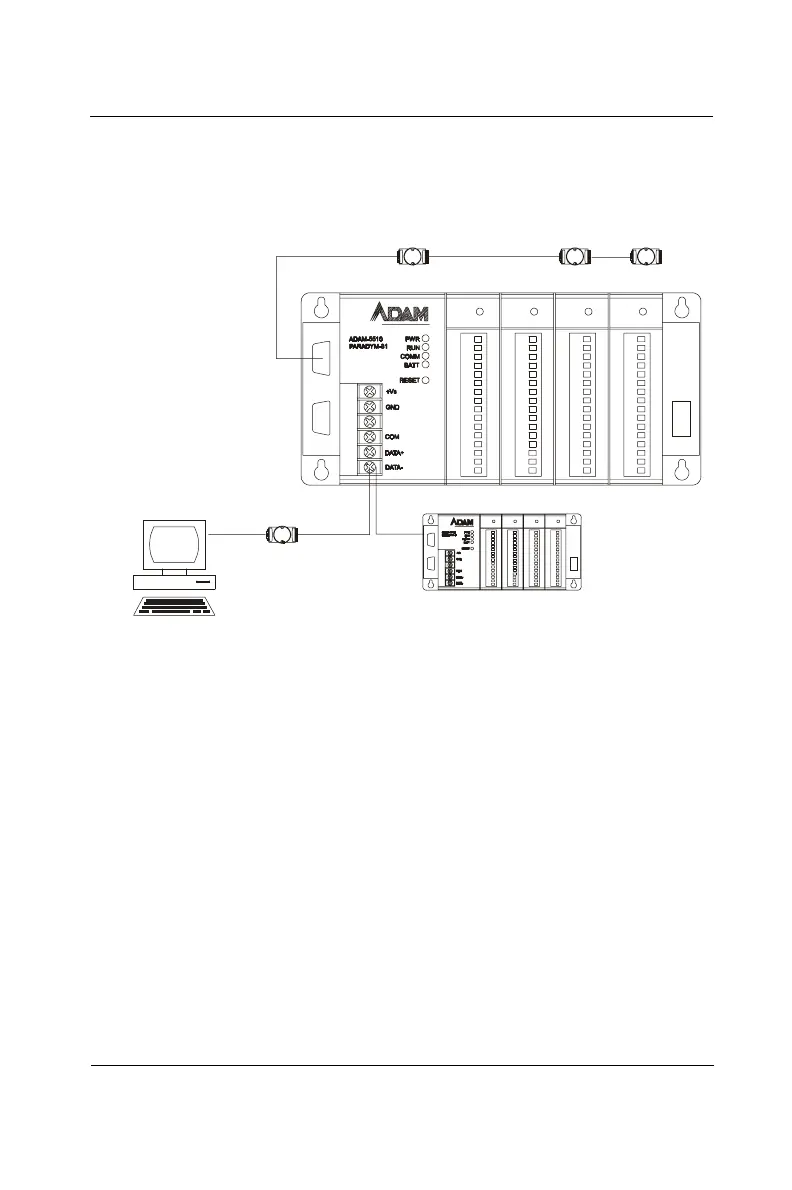

Figure 2-13: Remote I/O Wiring (RS-232)
Note: When you intened to change the connection, you
have to stop the program and reset ADAM-5510/P31.
