9 AIMB-279 User Manual
Chapter 1 General Information
1.8.4 eDP/LVDS Panel Voltage Selection (JEDP1_LVDS1)
1.8.5 PCI Express x16 Bifurcation (SW1)
1.8.6 COM1_RI# Pin RI# / 5V / 12V Selection (JSETCOM1_V1)

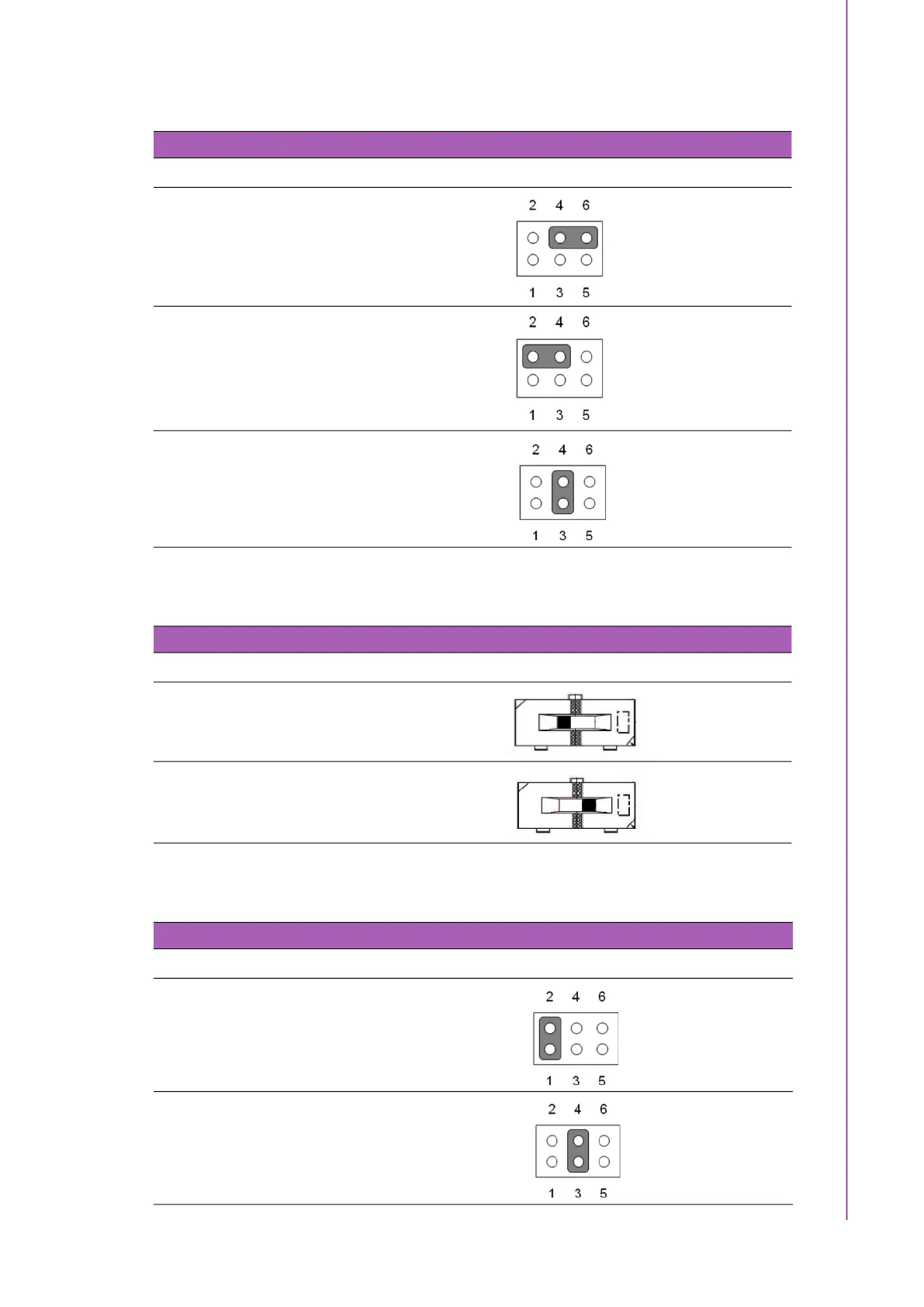

Table 1.4: eDP/LVDS Panel Voltage Selection (JEDP1_LVDS1)
Function Jumper Setting
Jumper position for +3.3V (default)
Jumper position for 5V
Jumper position for 12V
Table 1.5: PCI Express x16 Bifurcation (SW1)
Function Jumper Setting
1 X16 (Default)
2 X8
Table 1.6: COM1_RI# Pin RI# / 5V / 12V Selection (JSETCOM1_V1)
Function Jumper Setting
Jumper position for RI# (default)
Jumper position for 5V
