2.11 IMVP9.1 Programming Header (VR_PMB1)
2.12 System Fan #1 Connector (SYSFAN1)
2.13 CPU FAN Connector (CPUFAN1)
B79 TX15- A79 GND
B80 GND A80 RX15+
B81 Reserved A81 RX15-
B82 Reserved A82 GND
Table 2.9: PCI Express x16 Slot (PCIEX16_1)

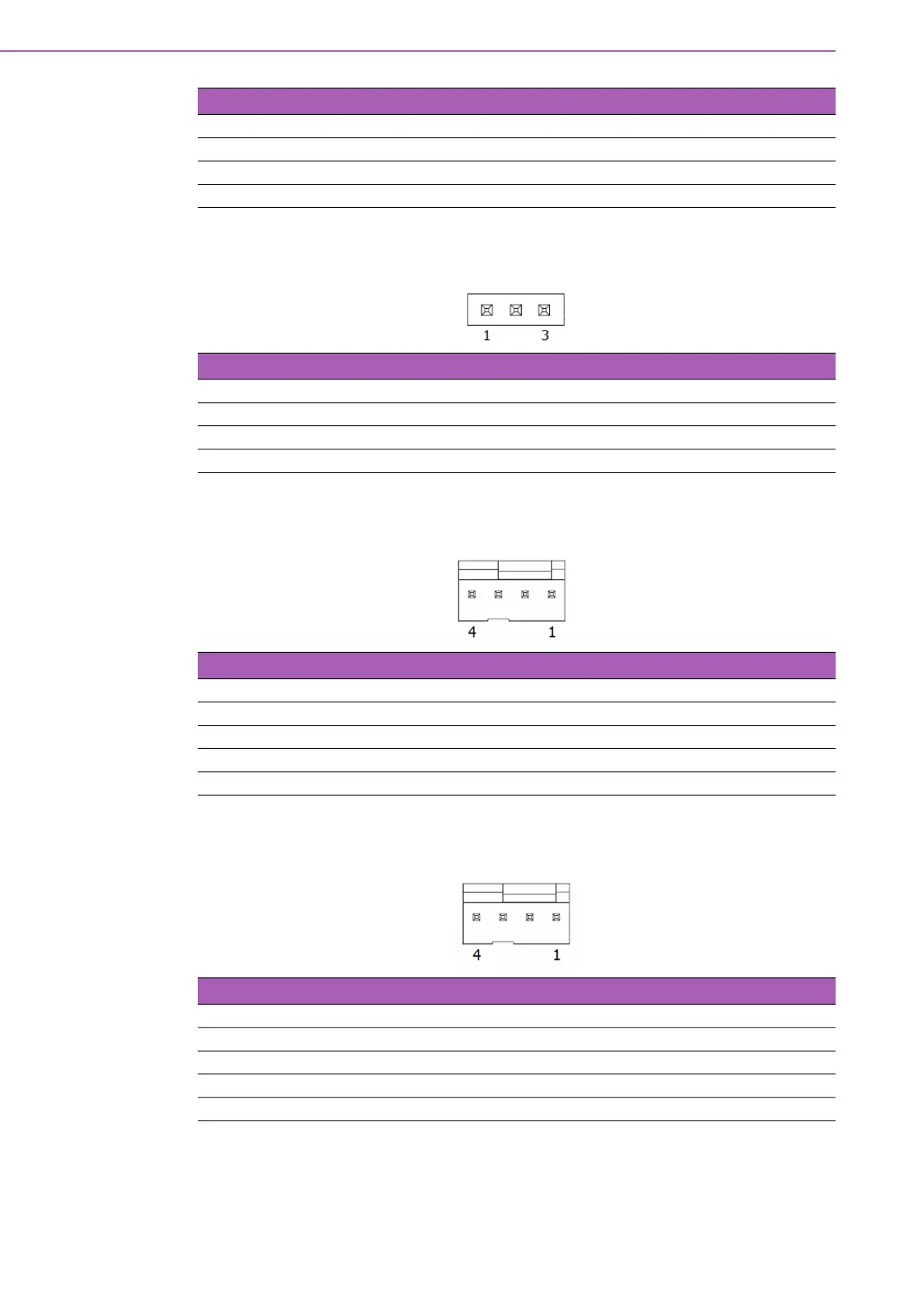

Table 2.10: IMVP9.1 Programming Header (JSMB1)
Pin Signal
1 DATA
2 GND
3 CLK
Table 2.11: System Fan #1 Connector (SYSFAN1)
Pin Signal
1 GND
2 SYSTEM FAN VCC
3 SYSTEM FAN SPEED
4 SYSTEM FAN PWM
Table 2.12: CPU FAN Connector (CPUFAN1)
Pin Signal
1 GND
2 CPU FAN VCC
3 CPU FAN SPEED
4 CPU FAN PWM
