Advantech AIMB-279 - Connector (LAN2); Universal Serial Bus 3.2 (USB34)

13 AIMB-279 User Manual
Chapter 2 Connecting Peripherals

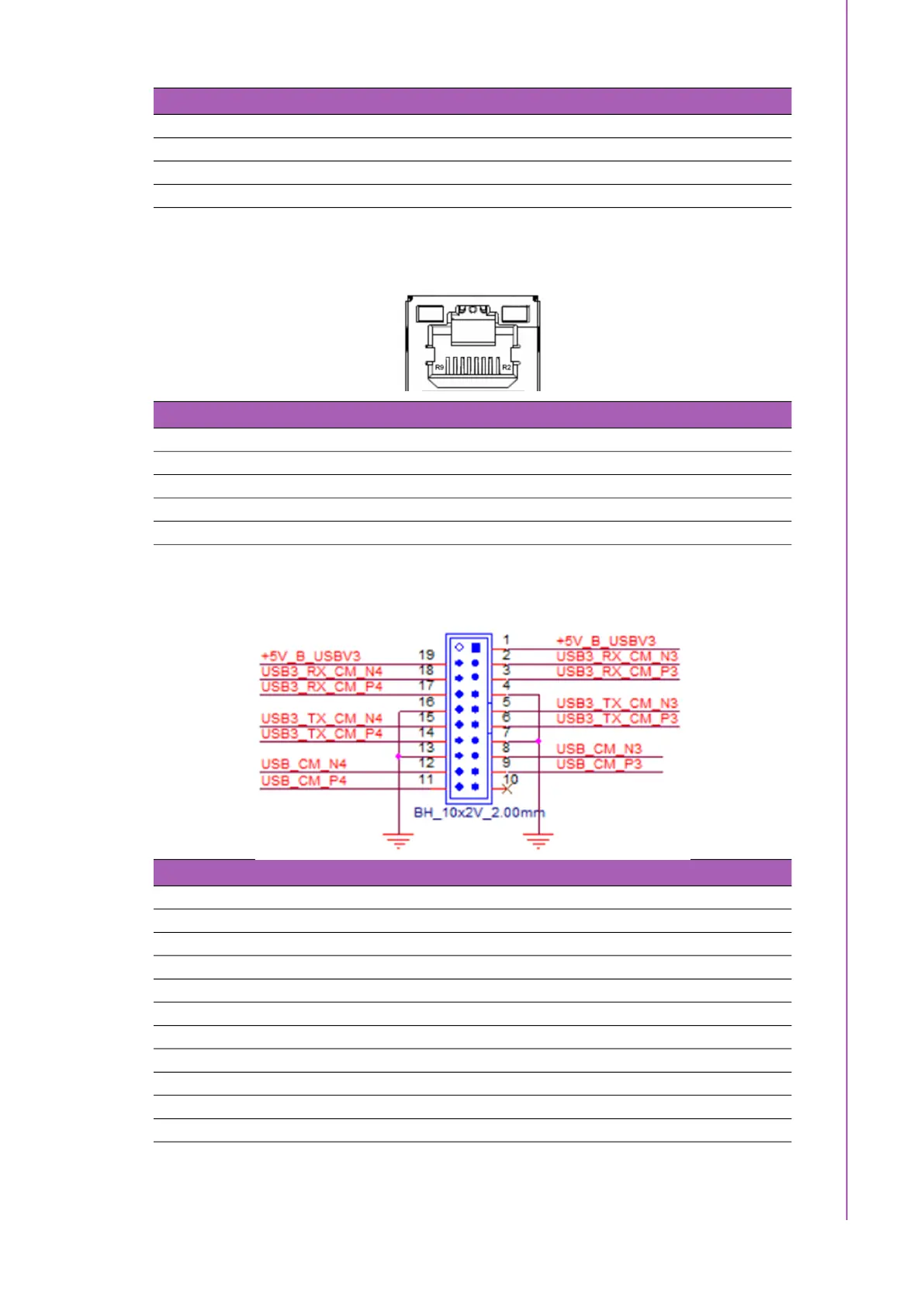

2.4 RJ-45 Connector (LAN2)
2.5 Universal Serial Bus 3.2 (USB34)
R2 LAN1_MDI_P0 R6 LAN1_MDI_P2
R3 LAN1_MDI_N0 R7 LAN1_MDI_N2
R4 LAN1_MDI_P1 R8 LAN1_MDI_P3
R5 LAN1_MDI_N1 R9 LAN1_MDI_N3
Table 2.2: RJ-45 + USB 3.2 Stack Connector (LAN1_USB12)
Table 2.3: RJ-45 Connector (LAN2)
Pin Signal Pin Signal
R2 LAN2_MDI_P0 R6 LAN2_MDI_P2
R3 LAN2_MDI_N0 R7 LAN2_MDI_N2
R4 LAN2_MDI_P1 R8 LAN2_MDI_P3
R5 LAN2_MDI_N1 R9 LAN2_MDI_N3
Table 2.4: Universal Serial Bus 3.2 (USB34)
Pin Signal Pin Signal
NC 1 +5V_B_USBV3
19 +5V_B_USBV3 2 USB3_RX_CM_N3
18 USB3_RX_CM_N4 3 USB3_RX_CM_P3
17 USB3_RX_CM_P4 4 GND
16 GND 5 USB3_TX_CM_N3
15 USB3_TX_CM_N4 6 USB3_TX_CM_P3
14 USB3_TX_CM_P4 7 GND
13 GND 8 USB_CM_N3
12 USB_CM_N4 9 USB_CM_P3
11 USB_CM_P4 10 NC
