Advantech AIMB-279 - EDP Connector; LVDS Connector (EDP1_LVDS1)

19 AIMB-279 User Manual
Chapter 2 Connecting Peripherals

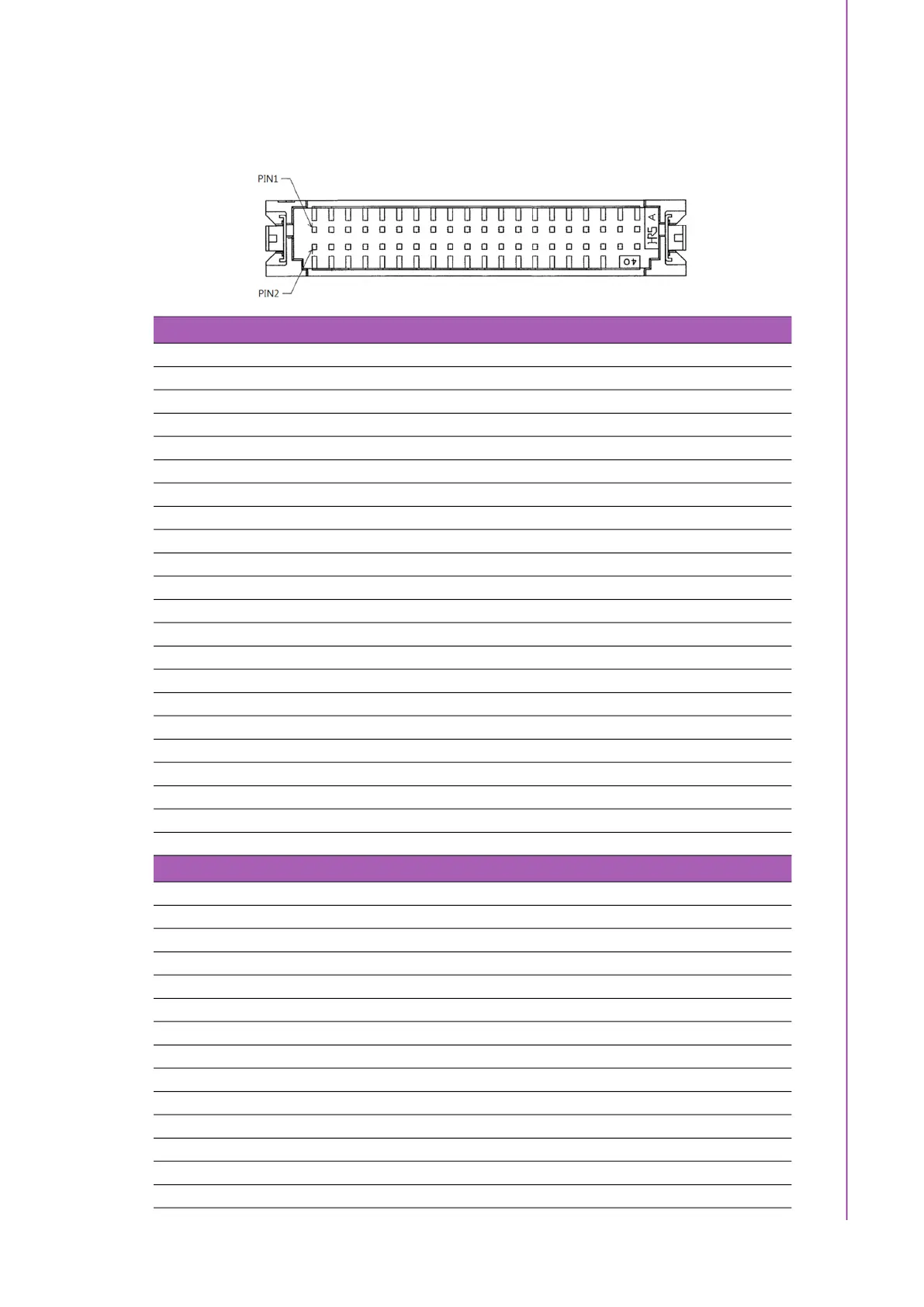

2.14 EDP Connector / LVDS Connector
(EDP1_LVDS1)
Table 2.13: LVDS Connector (LVDS1)
Pin Signal Pin Signal
1 VDD 2 VDD
3 LVDS DETECT# 4 GND
5 VDD 6 VDD
7 LVDS_OD0- 8 LVDS_ED0-
9 LVDS_OD0+ 10 LVDS_ED0+
11 GND 12 GND
13 LVDS_OD1- 14 LVDS_ED1-
15 LVDS_OD1+ 16 LVDS_ED1+
17 GND 18 GND
19 LVDS_OD2- 20 LVDS_ED2-
21 LVDS_OD2+ 22 LVDS_ED2+
23 GND 24 GND
25 LVDS_OCK- 26 LVDS_ECK-
27 LVDS_OCK+ 28 LVDS_ECK+
29 GND 30 GND
31 N.C 32 N.C
33 GND 34 GND
35 LVDS_OD3- 36 LVDS_ED3-
37 LVDS_OD3+ 38 LVDS_ED3+
39 LVDS ENBKL 40 LVDS VCON
Table 2.14: EDP Connector (EDP1)
Pin Signal Pin Signal
1 VDD 2 VDD
3 LVDS DETECT# 4 GND
5 VDD 6 VDD
7 EDP_TX2- 8 N.C
9 EDP_TX2+ 10 N.C
11 GND 12 GND
13 EDP_TX1- 14 N.C
15 EDP_TX1+ 16 N.C
17 GND 18 GND
19 EDP_TX0- 20 N.C
21 EDP_TX0+ 22 N.C
23 GND 24 GND
25 EDP_TX3- 26 N.C
